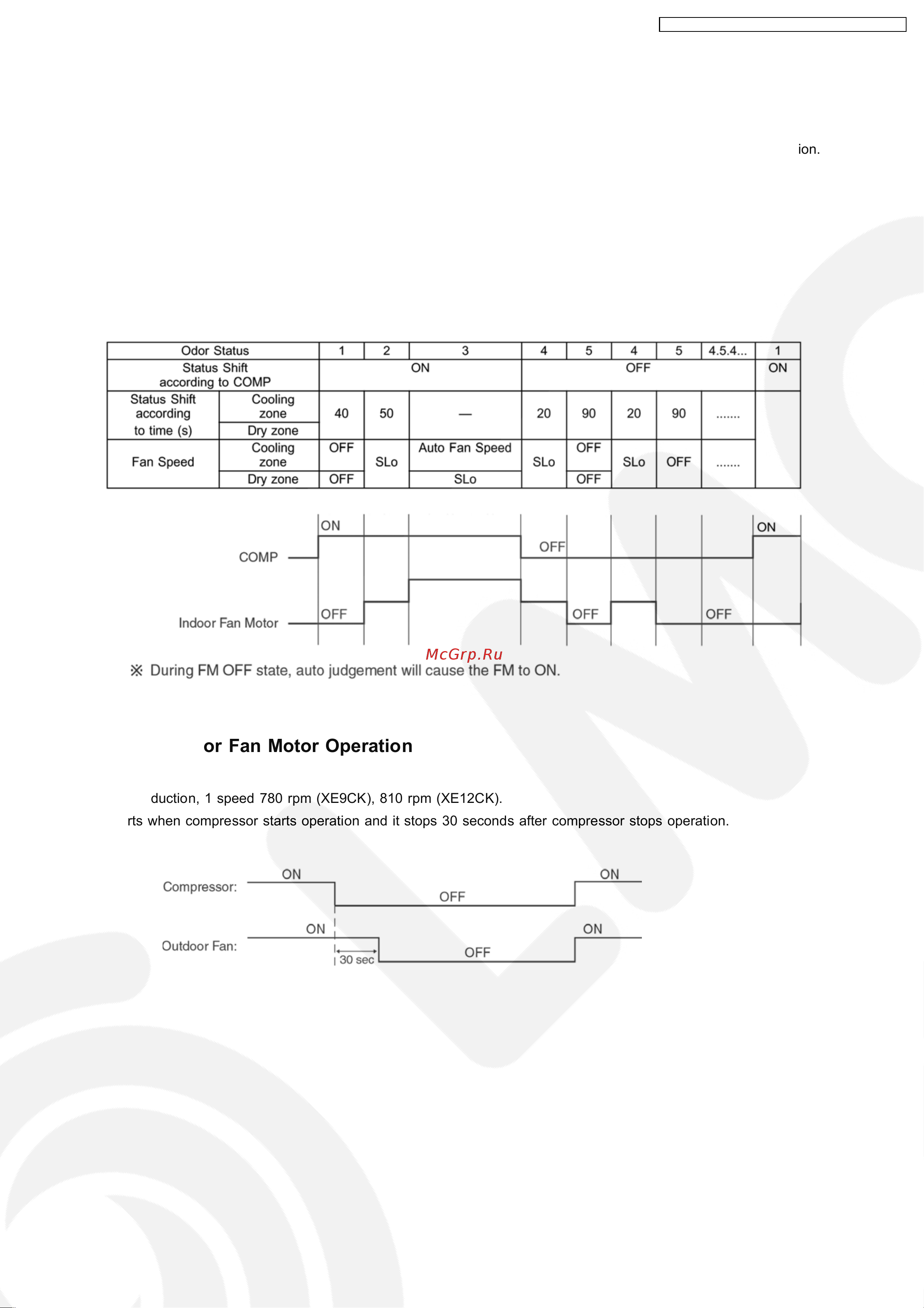

Panasonic CS-XE9CKE [23/110] Outdoor fan motor operation

D. Deodorizing Control

i. Control condition

Control at cooling/dry operation and auto fan speed setting.

No Deodorizing Control is performed during ON timer standby operation and during Anti-freezing control prevention.

ii. Operation

The odor status is arranged as below and it is shifted as follow.

* When COMP is ON 1 → 2 → 3

(Shift to 4 when COMP is OFF)

* When COMP is OFF 4 → 5 → 4 ←→ 5

(Shift to 1 when COMP is ON)

* Start from 4 if the Thermostat is OFF during the start operation.

8.1.8. Outdoor Fan Motor Operation

•

• •

• 6 pole induction, 1 speed 780 rpm (XE9CK), 810 rpm (XE12CK).

•

• •

• It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
