Panasonic CU-XE9DKE [94/108] Exploded view outdoor unit

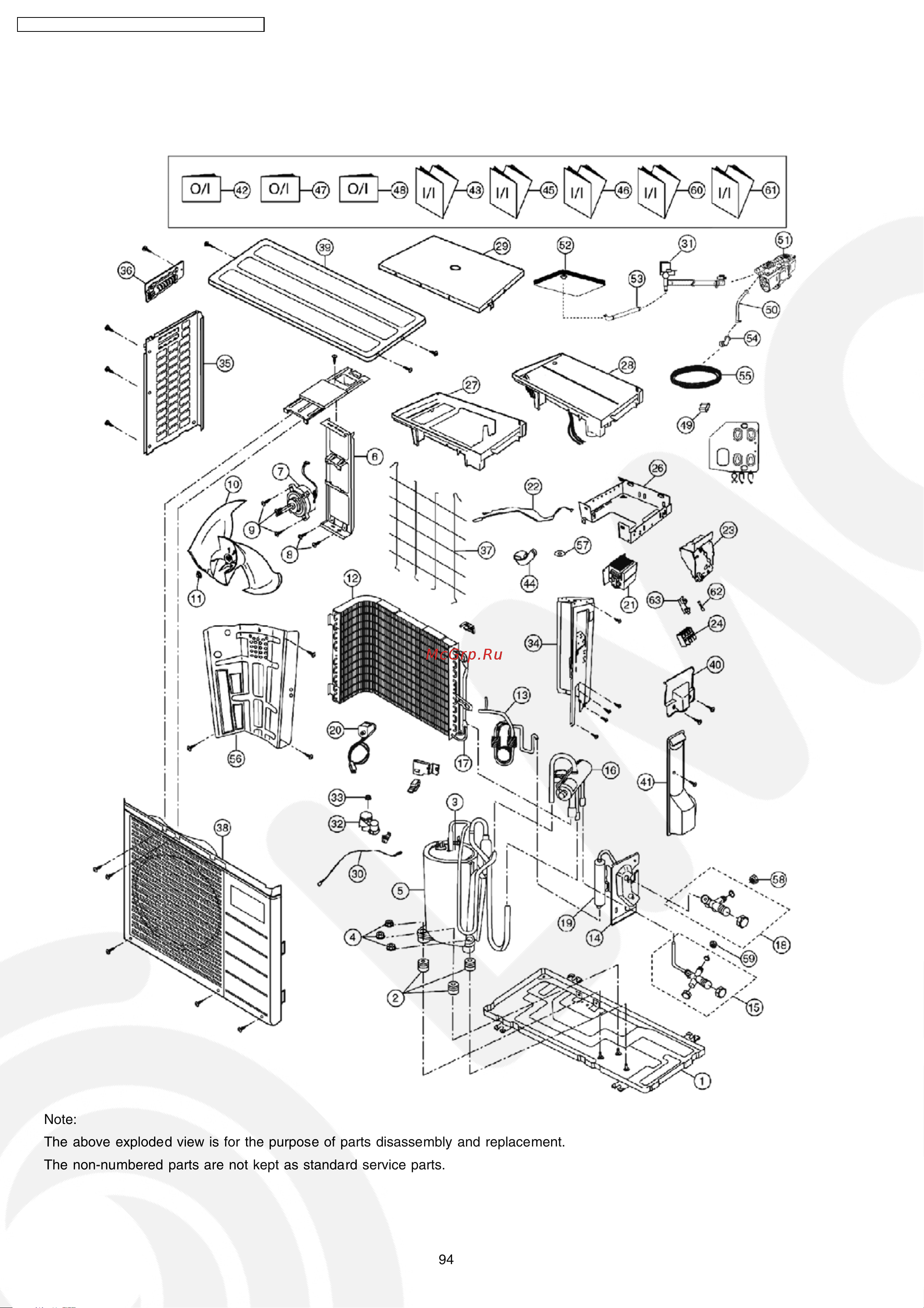

16 Exploded View (Outdoor Unit)

16.1. CU-XE9DKE CU-XE12DKE

Note:

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.
