81

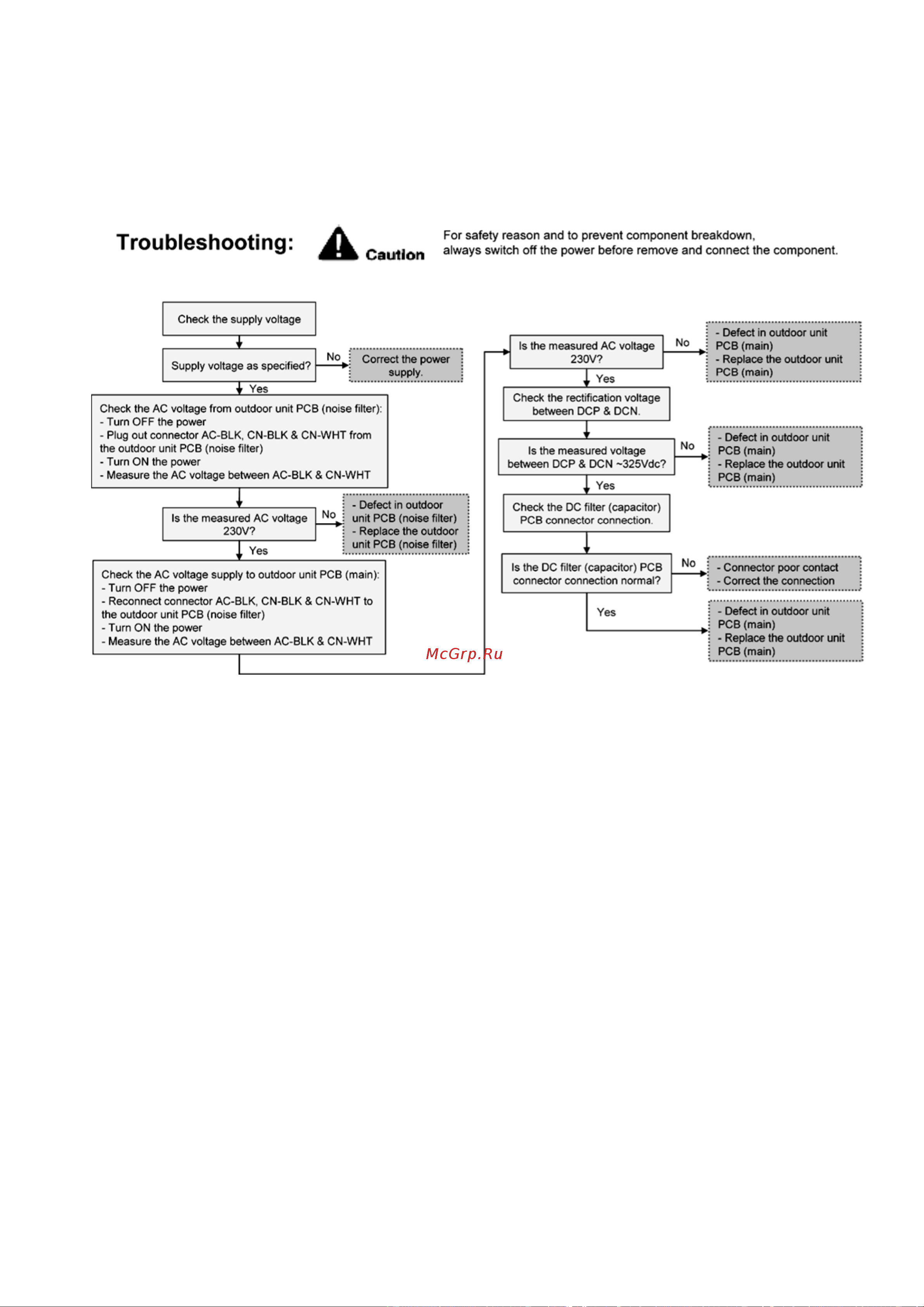

16.5.12 Unspecified Voltage between Indoor and Outdoor (H95)
Malfunction Decision Conditions:
The supply power is detected for its requirement by the indoor/outdoor transmission.
Malfunction Caused:
1. Insufficient power supply.
2. Faulty outdoor unit PCB (noise filter/main).
