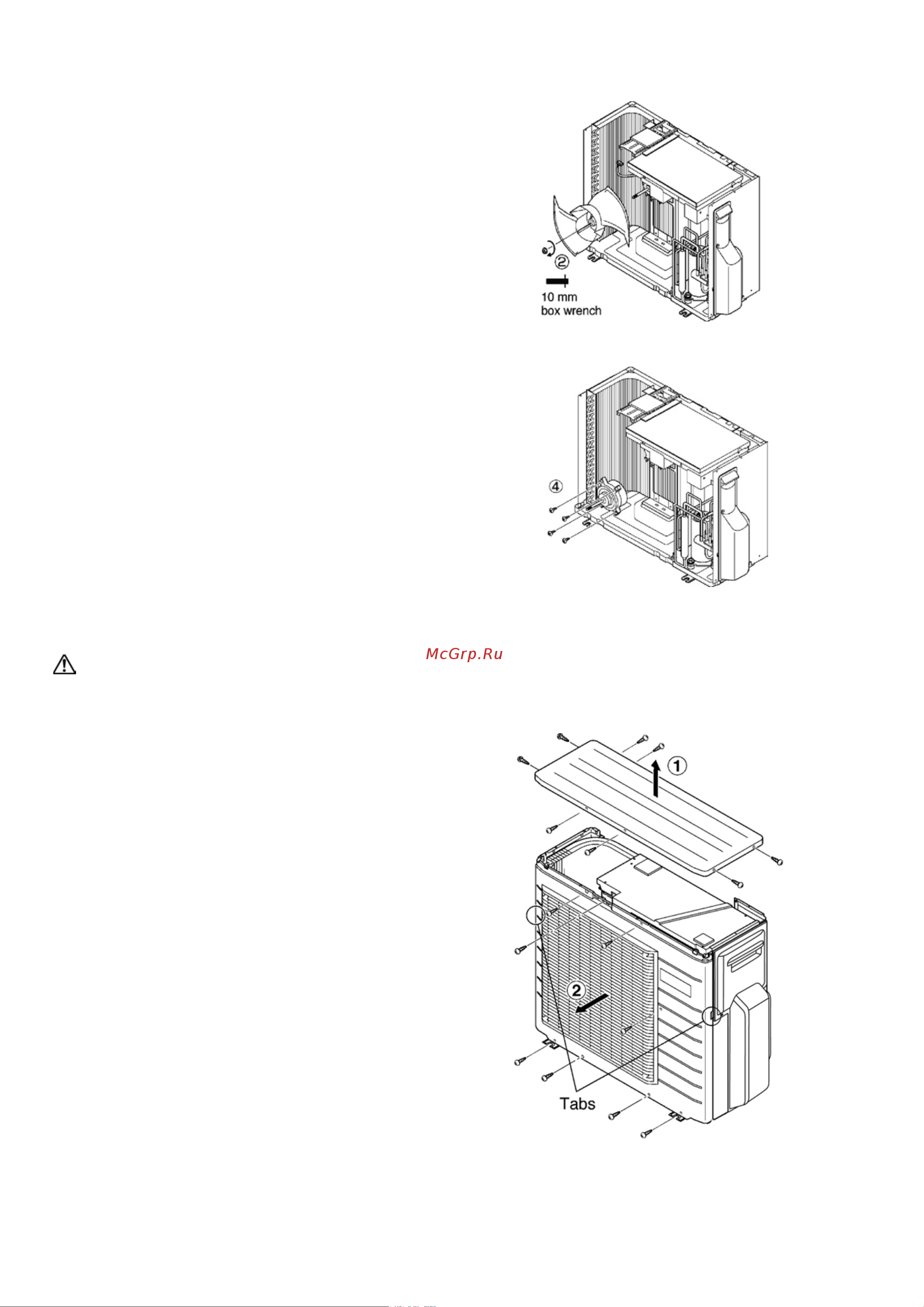

18.1.4. Removing the Propeller Fan and Fan Motor
1. Remove the cabinet top plate and cabinet front plate.
2. Remove the propeller fan by removing the nut turning
clockwise at its center.
3. Disconnect the connector of the fan motor from the
control board.
4. Loosen the 4 screws at the fan motor mounting then
remove the fan motor.
18.2. Outdoor Unit Removal Procedure (CU-3E18LBE CU-4E23LBE)
Caution! When handling electronic controller, be careful of electrostatic discharge.
18.2.1. Removing the Cabinet Top Plate and Cabinet Front Plate
1. Remove the cabinet top plate (remove the 8 screws).
2. Remove the 8 screws (1 on the center, 3 at the top and 4
at the bottom) securing the cabinet front plate, release the
2 hooks (1 each at the left and right), and pull the cabinet
front plate toward front side.
