Panasonic CS-HE9DKE / CU-HE9DKE [14/88] Wiring diagram

Panasonic CS-HE9DKE [14/88] Wiring diagram

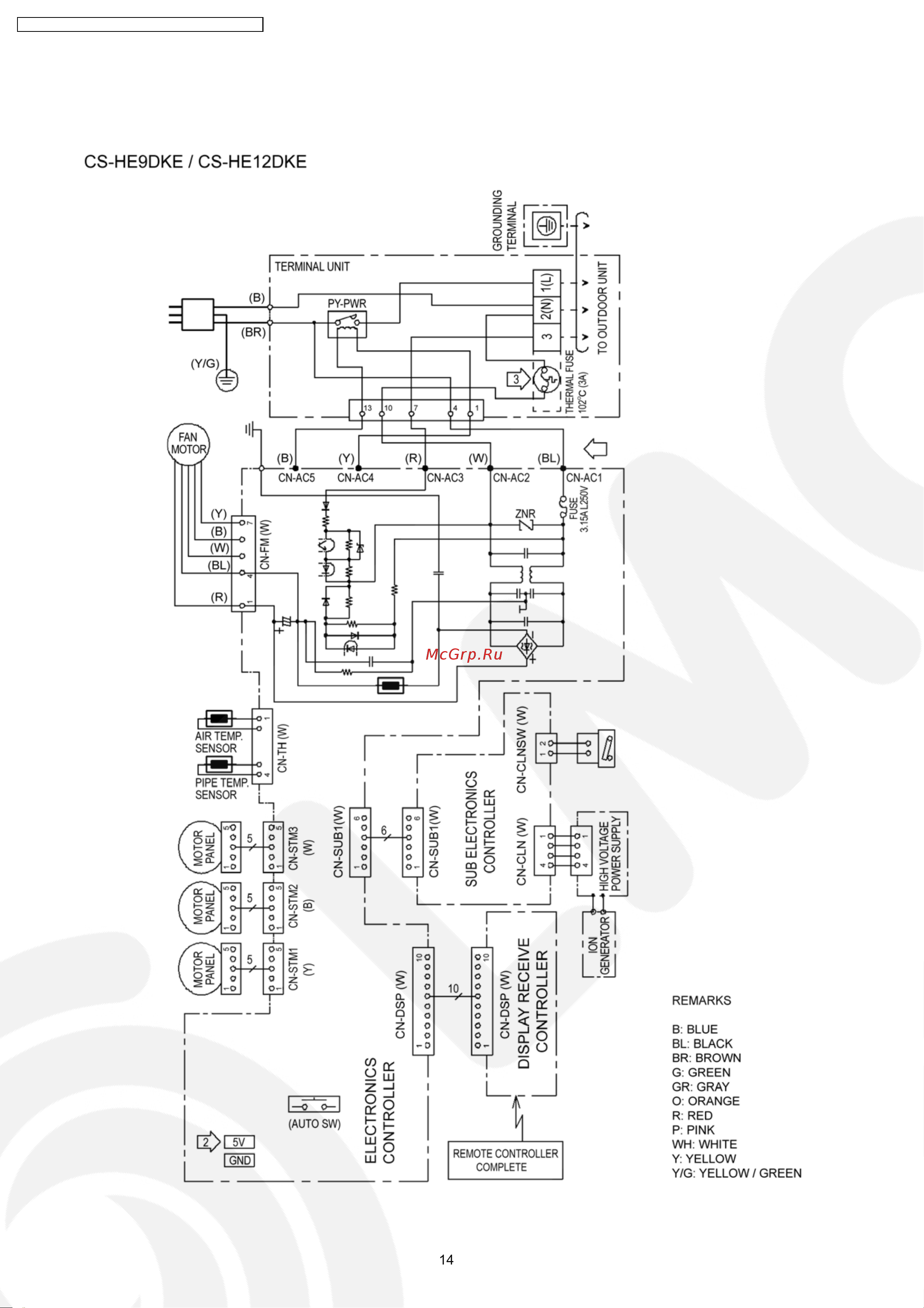

7.1. Indoor Unit

7 Wiring Diagram

CS-HE9DKE CU-HE9DKE / CS-HE12DKE CU-HE12DKE
