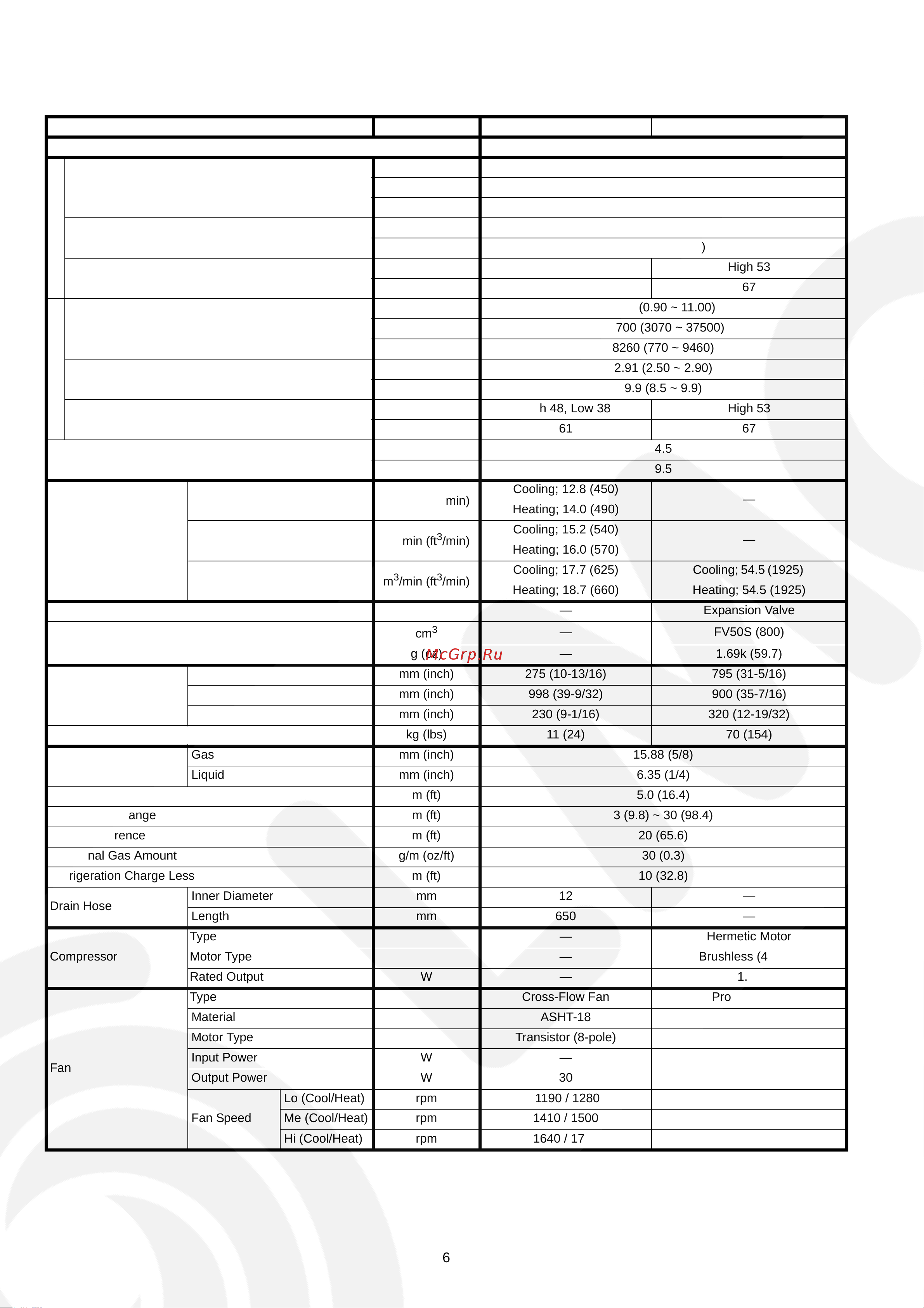

Panasonic CS-E28GKE / CU-E28GKE [6/78] Cs e28gke cu e28gke
![Panasonic CS-E28GKE / CU-E28GKE [6/78] Cs e28gke cu e28gke](/views2/1832443/page6/bg6.png)
6
2.2. CS-E28GKE CU-E28GKE
ITEM UNIT INDOOR UNIT OUTDOOR UNIT
Performance Test Condition EUROVENT
C
O
O
L
I
N
G
Capacity
kW 7.65 (0.90 ~ 8.60)
BTU/h 26100 (3070 ~ 29300)
kCal/h 6580 (770 ~ 7400)
EER
W/W 3.01 (2.57 ~ 2.92)
BTU/hW 10.3 (8.8 ~ 9.9)
Noise Level
dB (A) High 49, Low 38 High 53
Power level dB 62 67
H
E
A
T
I
N
G
Capacity
kW 9.60 (0.90 ~ 11.00)
BTU/h 32700 (3070 ~ 37500)
kCal/h 8260 (770 ~ 9460)
COP
W/W 2.91 (2.50 ~ 2.90)
BTU/hW 9.9 (8.5 ~ 9.9)
Noise Level
dB (A) High 48, Low 38 High 53
Power level dB 61 67
Moisture Removal
l/h 4.5
pt/h 9.5
Air Volume
Lo
m
3
/min (ft
3
/min)
Cooling; 12.8 (450)
—
Heating; 14.0 (490)
Me
m
3
/min (ft
3
/min)
Cooling; 15.2 (540)
—
Heating; 16.0 (570)
Hi
m
3
/min (ft
3
/min)
Cooling; 17.7 (625) Cooling; 54.5 (1925)
Heating; 18.7 (660) Heating; 54.5 (1925)
Refrigeration Control Device — Expansion Valve
Refrigeration Oil
cm
3
— FV50S (800)
Refrigerant (R410A) g (oz) — 1.69k (59.7)
Dimension
Height mm (inch) 275 (10-13/16) 795 (31-5/16)
Width mm (inch) 998 (39-9/32) 900 (35-7/16)
Depth mm (inch) 230 (9-1/16) 320 (12-19/32)
Net Weight kg (lbs) 11 (24) 70 (154)
Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Liquid mm (inch) 6.35 (1/4)
Standard Length m (ft) 5.0 (16.4)
Pipe Length Range m (ft) 3 (9.8) ~ 30 (98.4)
Height Difference m (ft) 20 (65.6)
Additional Gas Amount g/m (oz/ft) 30 (0.3)
Refrigeration Charge Less m (ft) 10 (32.8)
Drain Hose
Inner Diameter mm 12 —
Length mm 650 —
Compressor
Type — Hermetic Motor
Motor Type — Brushless (4-pole)
Rated Output W — 1.7k
Fan
Type Cross-Flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-pole) Induction (6-pole)
Input Power W — 163
Output Power W 30 76
Fan Speed
Lo (Cool/Heat) rpm 1190 / 1280 —
Me (Cool/Heat) rpm 1410 / 1500 —
Hi (Cool/Heat) rpm 1640 / 1720 700 / 700
