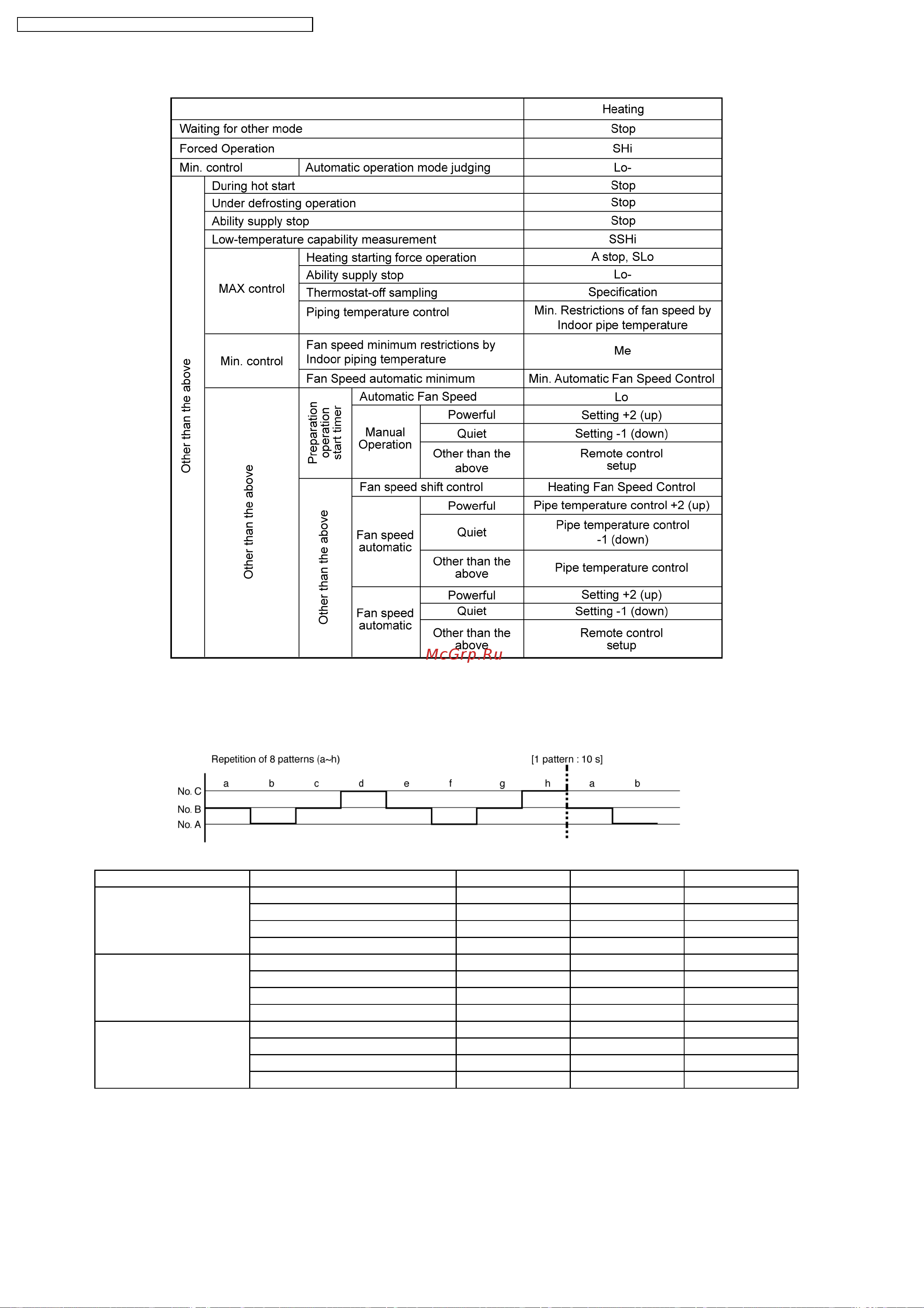

2. Heating
ii. Auto Fan Speed
1. Cooling
Model No. A No. B No. C
Powerful Program CS-ME7DKEG, CS-E9DKEW 1110 1130 1150
CS-E12DKEW 1230 1250 1270
CS-E15DKEW 1300 1320 1340
CS-E18DKEW 1390 1410 1430
Normal Program CS-ME7DKEG, CS-E9DKEW 1050 1070 1090
CS-E12DKEW 1170 1190 1210
CS-E15DKEW 1240 1260 1280
CS-E18DKEW 1330 1350 1370
Quiet Program CS-ME7DKEG, CS-E9DKEW 1030 1050 1070
CS-E12DKEW 1150 1170 1190
CS-E15DKEW 1220 1240 1260
CS-E18DKEW 1310 1330 1350
•
• •
•
Refer to the CS-ME7DKEG column for CS-ME7DKRG and CS-ME7DKDG.
•
• •
•
Refer to the CS-E9DKEW column for CS-E9DKRW and CS-E9DKDW.
•
• •
•
Refer to the CS-E12DKEW column for CS-E12DKRW and CS-E12DKDW.
•
• •
•
Refer to the CS-E15DKEW column for CS-E15DKRW and CS-E15DKDW.
•
• •
•
Refer to the CS-E18DKEW column for CS-E18DKRW and CS-E18DKDW.
44
