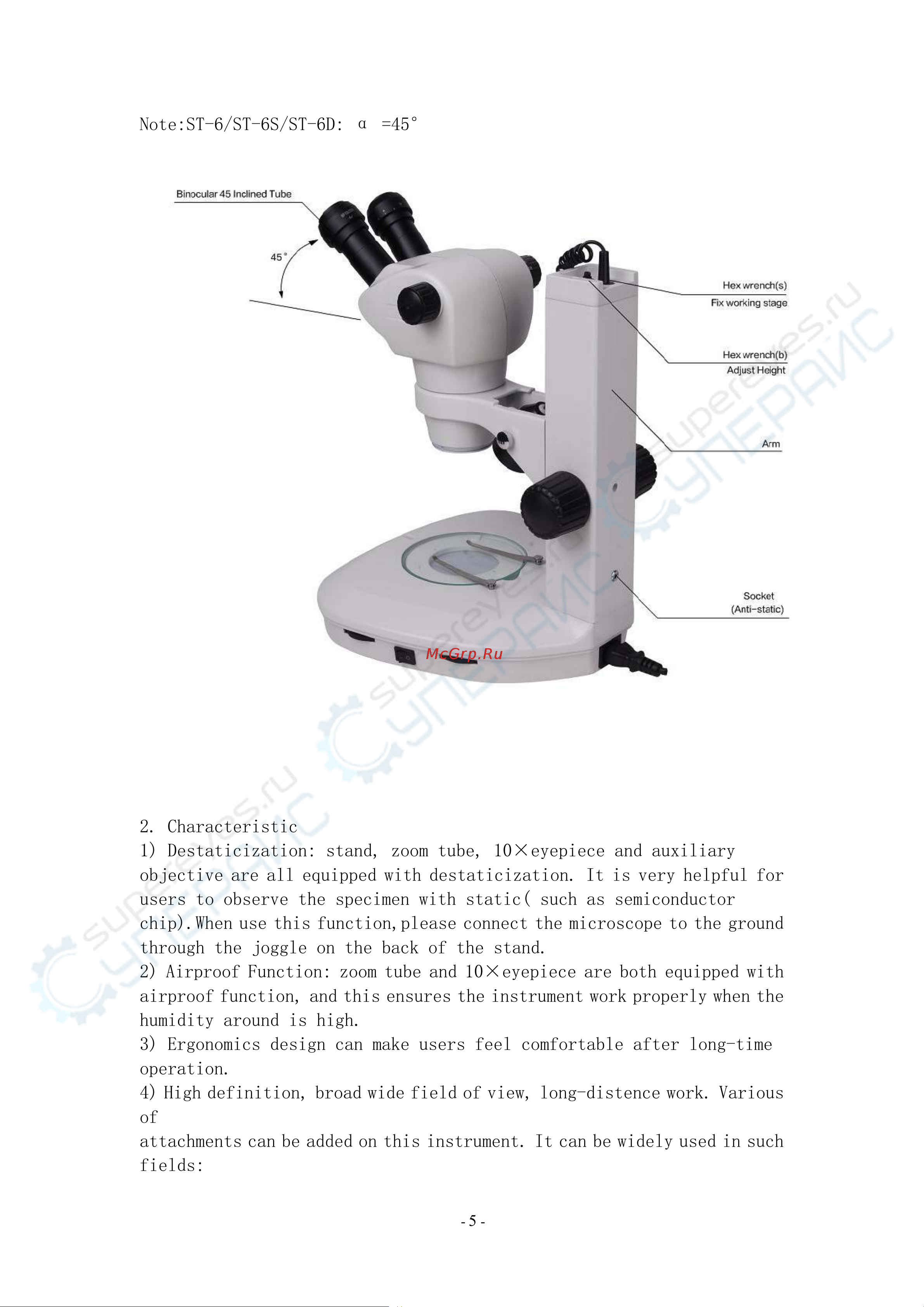

- 5 -
Note:ST-6/ST-6S/ST-6D: α =45°
2. Characteristic
1) Destaticization: stand, zoom tube, 10×eyepiece and auxiliary
objective are all equipped with destaticization. It is very helpful for
users to observe the specimen with static( such as semiconductor
chip).When use this function,please connect the microscope to the ground
through the joggle on the back of the stand.
2) Airproof Function: zoom tube and 10×eyepiece are both equipped with
airproof function, and this ensures the instrument work properly when the
humidity around is high.
3) Ergonomics design can make users feel comfortable after long-time
operation.
4) High definition, broad wide field of view, long-distence work. Various
of
attachments can be added on this instrument. It can be widely used in such
fields:
