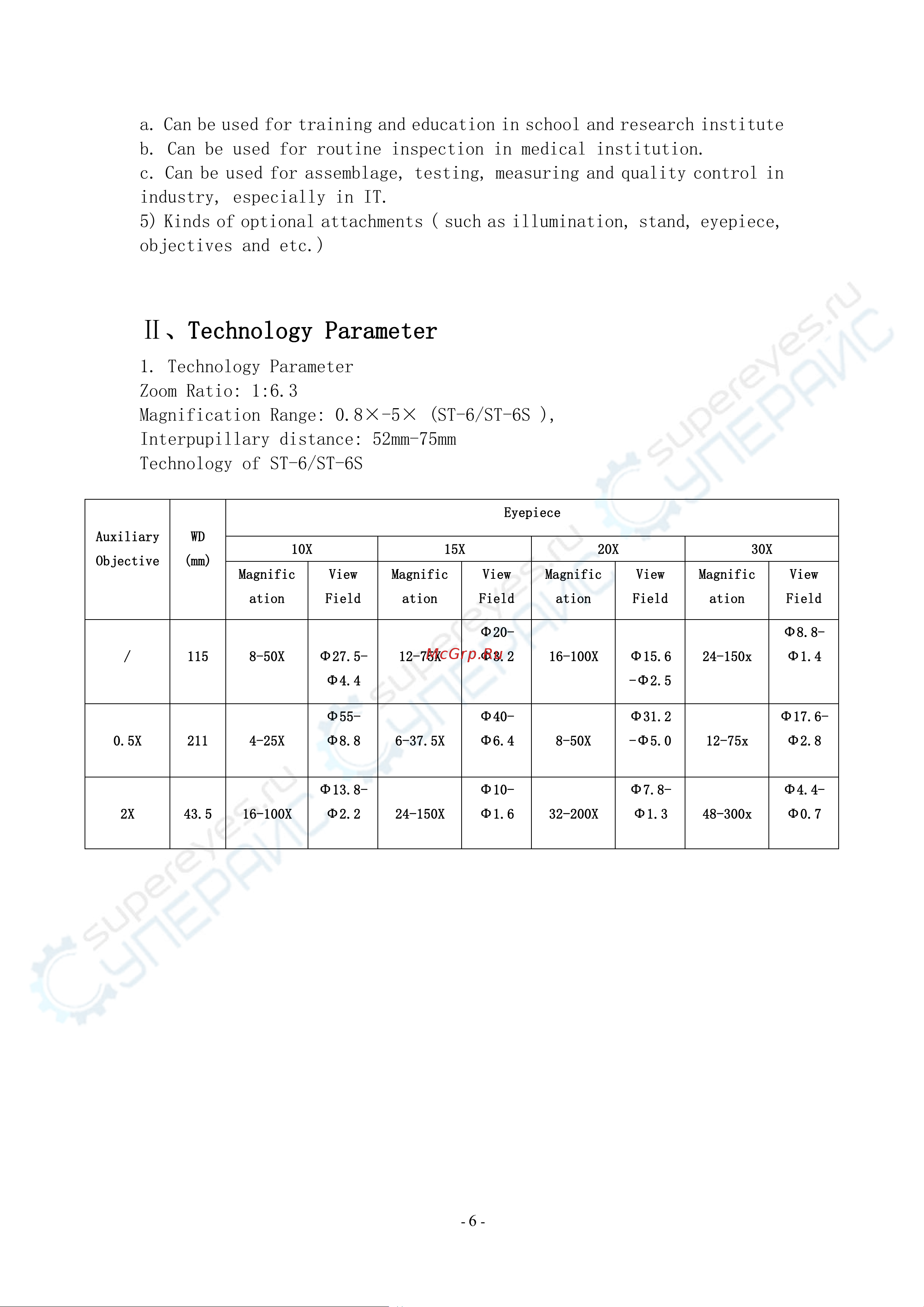

- 6 -
a. Can be used for training and education in school and research institute
b. Can be used for routine inspection in medical institution.
c. Can be used for assemblage, testing, measuring and quality control in
industry, especially in IT.
5) Kinds of optional attachments ( such as illumination, stand, eyepiece,
objectives and etc.)
Ⅱ、Technology Parameter
1. Technology Parameter
Zoom Ratio: 1:6.3
Magnification Range: 0.8×-5× (ST-6/ST-6S ),
Interpupillary distance: 52mm-75mm
Technology of ST-6/ST-6S
Auxiliary
Objective
WD
(mm)
Eyepiece
10X
15X
20X
30X
Magnific
ation
View
Field
Magnific
ation
View
Field
Magnific
ation
View
Field
Magnific
ation
View
Field
/
115
8-50X
Φ27.5-
Φ4.4
12-75X
Φ20-
Φ3.2
16-100X
Φ15.6
-Φ2.5
24-150x
Φ8.8-
Φ1.4
0.5X
211
4-25X
Φ55-
Φ8.8
6-37.5X
Φ40-
Φ6.4
8-50X
Φ31.2
-Φ5.0
12-75x
Φ17.6-
Φ2.8
2X
43.5
16-100X
Φ13.8-
Φ2.2
24-150X
Φ10-
Φ1.6
32-200X
Φ7.8-
Φ1.3
48-300x
Φ4.4-
Φ0.7
