Hooking up the unit

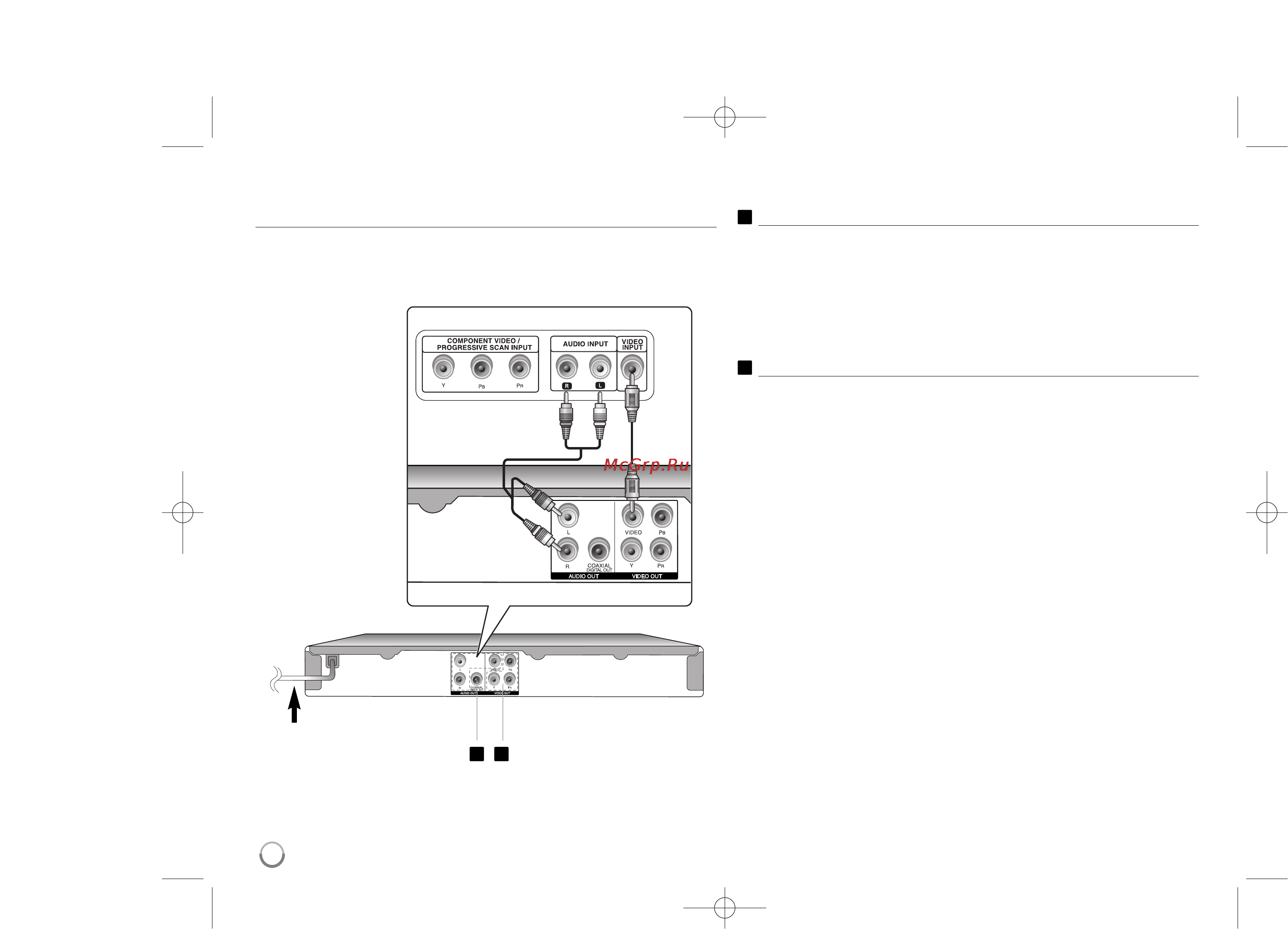

Audio and Video Connection

The unit Audio/Video jacks are color coded (yellow for video, red for right audio

and white for left audio). If your TV has only one input for audio (mono),

connect it to the left (white) audio jack on the unit.

Hooking up the unit - more you can do

Component Video Connections

Connect the COMPONENT(VIDEO)/PROGRESSIVE SCAN(YPBPR)

OUTPUT jacks on the unit to the corresponding input jacks on your TV using

a Video/YPBPR cable.

• You will still need to connect the left and right audio cables to the TV, or

digital audio cable to your stereo.

• If your TV accepts progressive format signals, you must use this

connection and set [Progressive Scan] to [On] on the setup menu.

(See page 8)

Digital Audio Output Connection

Connect one of the unit’s DIGITAL AUDIO OUTPUT (COAXIAL) jack to the

corresponding jack on your amplifier.

• If the audio format of the digital output does not match the capabilities of

your amplifier, the amplifier will produce a strong, distorted sound or no

sound at all.

• To see the audio format of the current disc in the on-screen display, press

AUDIO.

• This unit does not perform internal (2 channel) decoding of a DTS sound

track. To enjoy DTS multi channel surround, you must connect this unit to

a DTS compatible amplifier via one of this unit’s digital audio outputs.

B A

Connect the AC

power cord into the

power outlet.

Rear of DVD player

Rear of TV
