Citizen CL-S521 [20/154] Setting two page edit mode double buffer
![Citizen CL-S521 [20/154] Setting two page edit mode double buffer](/views2/1842788/page20/bg14.png)
1-19
Setting two-page edit mode (double buffer)
Code
[02] d
Function
After receiving this command, printer divides the internal edit
buffer into 2 pages and enters the high-speed edit mode.
In the high-speed edit mode, editing the next page in advance while
the current page is being printed increases printing speed.
Caution
The printer automatically judges whether the double buffer is needed
or not, and the mode is switched accordingly, so this command does
not need to be particularly specified. Maximum printing length per
page is 40 inches, independently of the division.

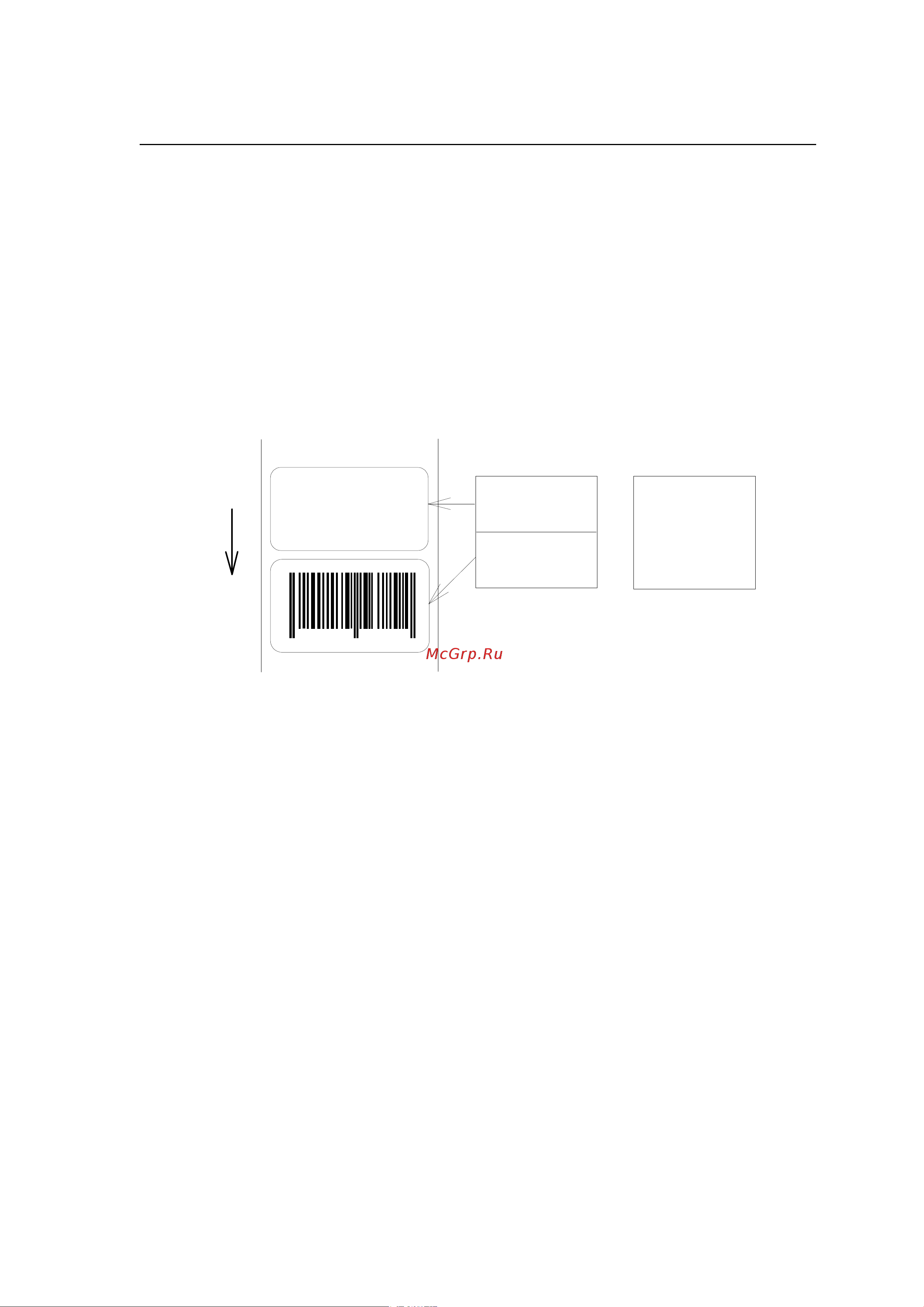

4
901234
567894
Direction of feed
ABCD
Internal edit buffer
One-page mode
1
st
page
2
nd
p
a
g
e
Two-page mode
1
st
page
In one-page mode,
Next data is not
p
rocessed
,
Until printing is completed
In two-page mode,
While printing 1
st
page
Data on next page is edited
