SEBO DART 1
Art.-No. 06946 I, 12/2009-2

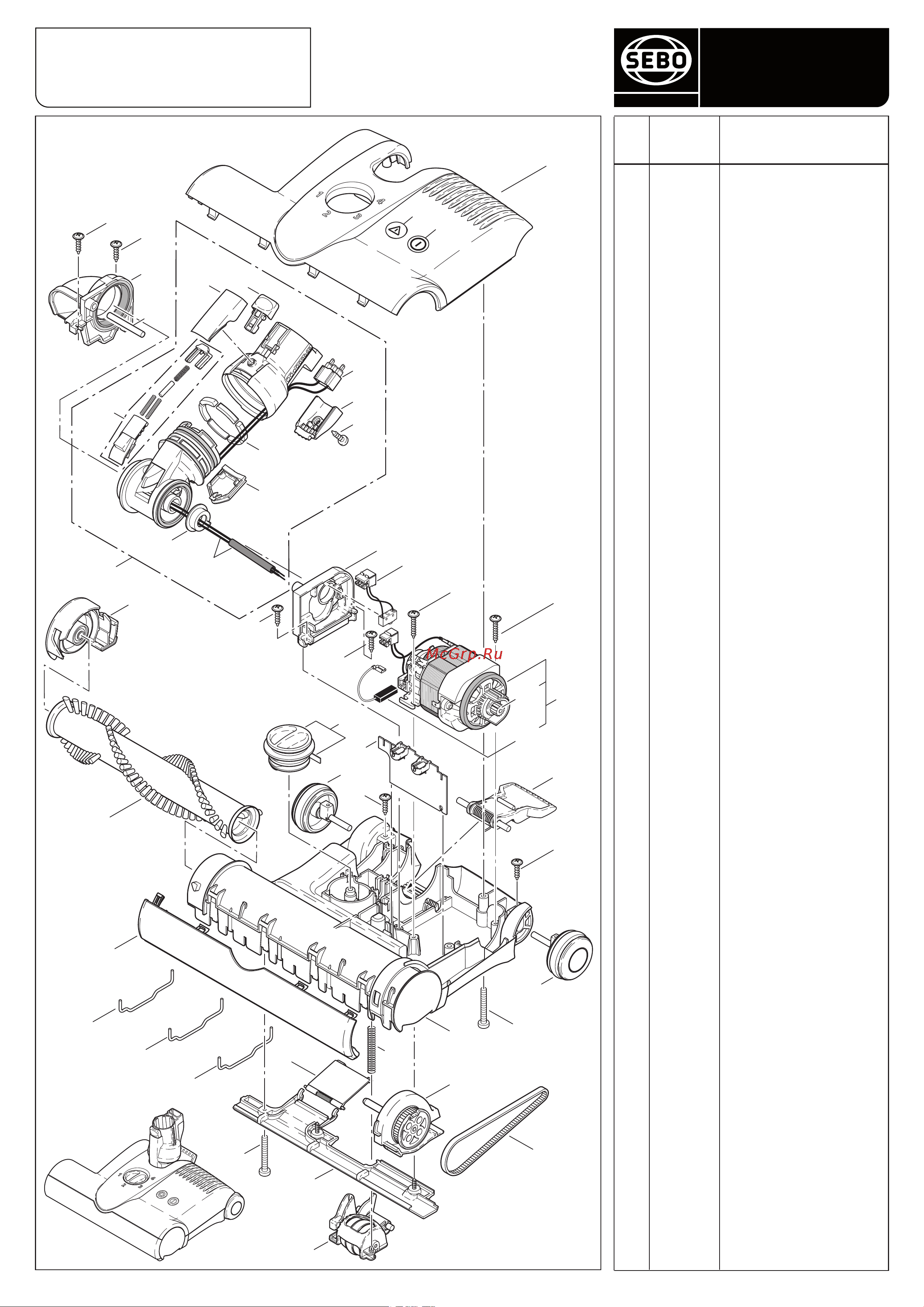

SPARE PARTS LIST
Pos. Product-
Code
Description
100 2324 dg Chassis ET1
101 2302 dg Bumper, cpl.
102 2314 dg Bearing block, left cpl.
103 2923 Belt 333 3M HTDII-6
104 5010 ER Brush roller, cpl.
105 2313 dg Bearing block, right cpl.
106 2929 Spring
107 2316 dg Pile adjustment assembly
compl.
108 2909 VO Access door ET
109 2304 dg Rear bottom plate cpl.
110 2931 DG Pile adjustment button
111 2306 DG Whee
l, cpl.
112 2937 OR Foot pedal
113 2307 dg Swivel neck assembly
compl.
114 0876 ER Wiring swivel neck
115 2947 dg Cover
116 2950 ER Segments, TS-neck
117 1737 DG Release button
118 2952 dg Button cover
119 2945 DG Swivel neck slide
120 2951 DG Socket cover, TS-neck
121
01027 ER
Screw F 3,9x9,5
122 2954 Swivel neck bearing
123 2311 Swivel neck support,
right
124 2312 Swivel neck support
, left
125 0880 Wiring swivel neck
switch
126 2928 Axle
127 01021 ER Screw F 3,9x13
128 2975 ER Brush motor
230/240V, 175W
129 05141 S Pair of carbon brushes
130 01020 ER Screw F 3,9x21
131 2985 ER Printed circuit board
ET1-175W
132 2337 hgSE Power head cover ET1
133 0176 ER Screw AM 4x30
134 5402 Wire tie
135 2319 Motor pulley
This information intended only for Europe (230 V /
240 V) and does not apply to North America !
132
107
100
104
133
111
131
110
105
112
127
130
130
125
124
127
127
111
127
123
127
127
120
114
121
117
116
115
118
106
133
103
109
102
108
107
113
119
114
122
126
101
134
134
134
128
129
135
137
136
136 2955 Lens left
137 2956 Lens right
