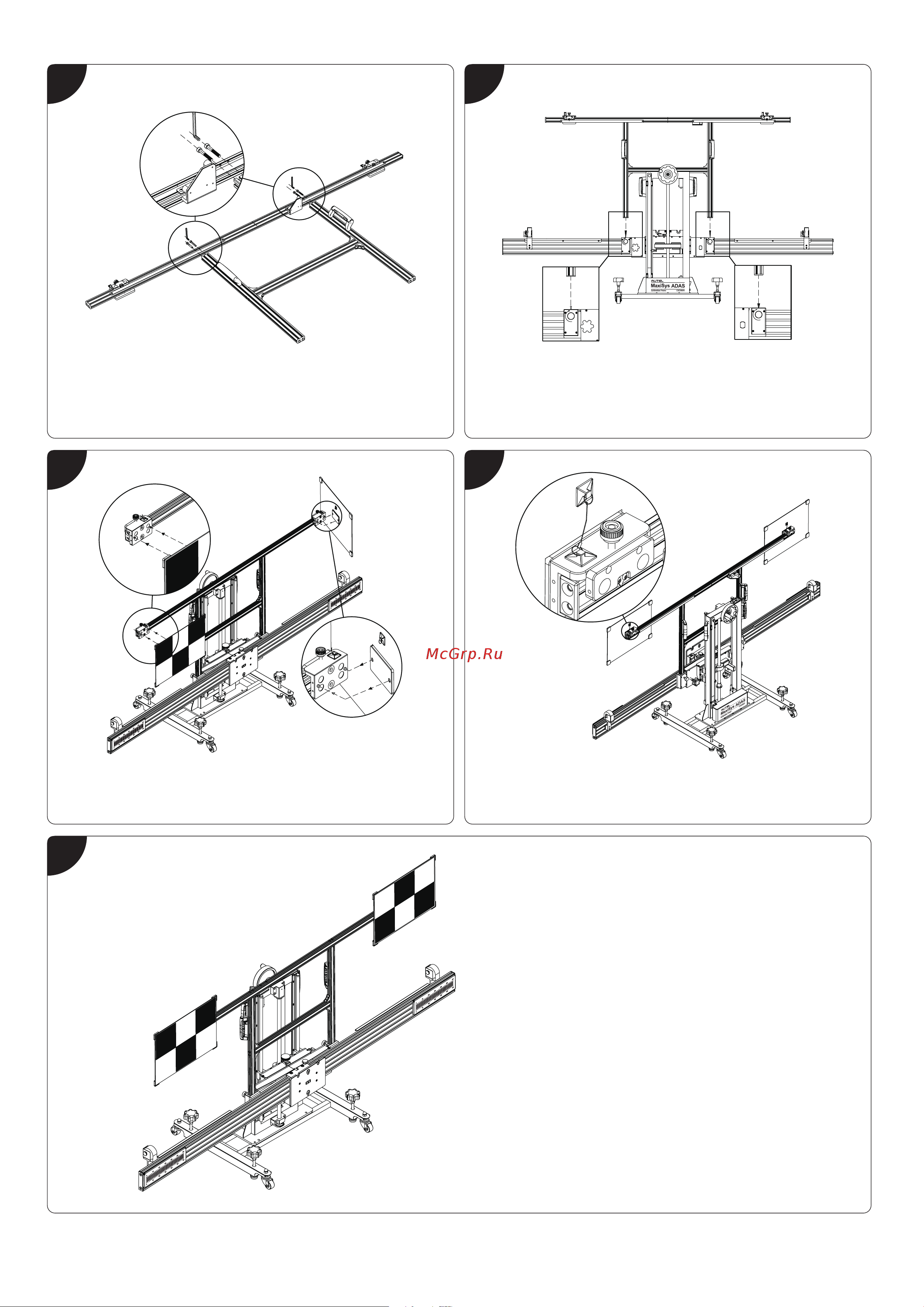

Align the four screw holes on the slide bar with those on the left

and right poles. Insert bolts (M6x40) and tighten with the hex

L-wrench (5mm).

Insert the two poles into the slots on each side of the lifter of the

calibration frame. Tighten the hand knobs adjacent to the slots

and secure the target board holder to the lifter.

Use the locker on the slider to secure the target board to the slide

bar.

Attach the target board to the slide bar with two pins on the slider

inserted into the holes on the back of the target board.

3 4

5 6

Note: To move target board, turn hand knob counter-

clockwise to loosen board, slide it to the appropriate

position on slide bar and secure target board by

turning knob.
