ASSEMBLY INSTRUCTION

Parts List

MaxiSys ADAS (Target Board Holder)

1pc

4pcs

1pc 1pc 1pc

1pc 1pc

Slide Bar

06022

Left Pole

060023

Hex L-wrench (5mm)

060028

Right Pole

060024

Connecting Bar

060025

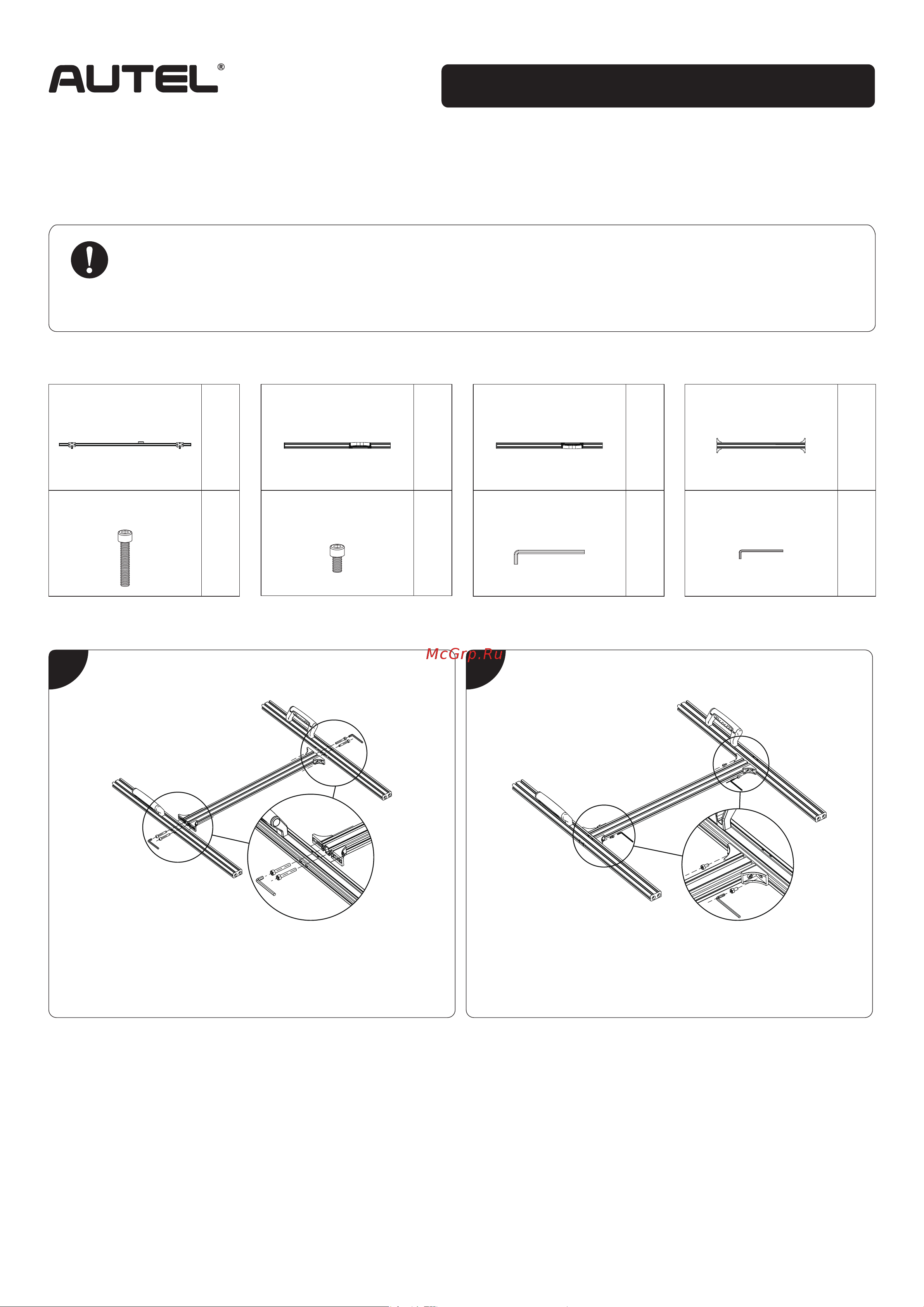

Assemble the Target Board Holder

Place the left and right poles on a ﬂat, level surface. Align the

screw holes on the connecting bar with those on the left and right

poles. Insert the bolts (M6x40) and tighten with the hex L-wrench

(5mm).

Insert the bolts (M4x8) into four screw holes on bar brackets and

tighten with the hex L-wrench (3mm). Ensure the connecting bar

is ﬁrmly attached to the left and right poles.

Hex L-wrench (3mm)

060029

Thank you for purchasing this Autel diagnostic tool. This tool, manufactured to a high standard will if used according to the

instructions and properly maintained give you years of trouble-free performance.

WARNING:

• Serious or fatal crushing injuries can occur from frame tip-over. To prevent the calibration frame from tipping over it must be

secured to the ground during the assembly.

• Improper assembly of the calibration frame may result in permanent damage to the frame and may render it inoperable and/or

unsafe.

Bolt (M4x8)

060027

Bolt (M6x40)

060026
