Numatic George GVE370-2 Деталировка онлайн

Numatic George GVE370-2 Деталировка онлайн
29
28
28
14
6
7
26
32
45
43
41
44
40
42
46
47
35
38
39
56
51
36
34
50
33
52
48
49
27
55
1
10
8
5
6
7
15
7
12
7
54
18
22
23
21
17
20
16
11
16
13
24
9
37
57
58
33
30
60
59
19
1819
61
31
2
3
4
2831
51
36
34
50
25
27
27
28
39
38
1
27
53
POS: ITEM NO: DESCRIPTION: COMMENTS:
1 227115 TOGGLE
2 202031 BOTTOM MOTOR GASKET
3 205411 240V 2 STAGE D.I BYPASS ACUSTEK MOTOR (BL21104)(MARKED 230V)
205410 220V 2 STAGE D.I BYPASS ACUSTEK MOTOR (BL21102)(MARKED 230V)
4 227925 TOP MOTOR GASKET
5 219380 BARBED TUBE FITTING
6 219337 LOCKNUT
7 219299 BLOCKING NUT
8 227998 260MM LONG SOLUTION TUBE
9 219281 TUBE SPRING
10 502040 GAUZE FILTER ASSEMBLY
11 216147 PUMP SMALL BORE 220/240V/50HZ
12 206208 SEALING WASHER
13 303022 PUMP FIXING BRACKET
14 216296 QUICK RELEASE BULK HEAD FITTING
15 227814 215MM LONG SOLUTION TUBE
16 219107 No6 X 5/8 INCH LONG POZI PAN PLASTITE SCREW
17 220564 TERMINAL BLOCK MOULDING (2 INSERTS)
18 220843 BLUE ROCKER SWITCH
19 206573 SWITCH COVER (PLUG HANDLE)
20 227008 BLACK CABLE CLAMP
21 219101 No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW
22 220923 STRESS RELIEF
23 219090 M4 X 8MM LONG POZI PAN SEMS SCREW
24 230078 240/220V THERMAL OVERLOAD
25 321666 DIODE ASSEMBLY
26 227019 CABLE HOOK
27 219369 No8 X 1 INCH LONG POZI PAN STAINLESS STEEL PLASTITE SCREW
28 219041 No8 X 3/4 INCH LONG POZI PAN SCREW
29 227920 SWITCH COVER TOP
30 206451 HANDLE
31 219003 M5 FORM A STEEL WASHER
32 236033 10.0M X 1.00MM X 2 CORE CABLE (UK PLUG)
236034 10.0M X 1.00MM X 2 CORE CABLE (EURO PLUG)
236049 10.0M X 1.50MM X 2 CORE CABLE (INDUSTRIAL PLUG)
236044 10.0M X 1.00MM X 2 CORE CABLE (AUSTRALIAN PLUG)
236047 10.0M X .75MM X 2CORE CABLE + SWISS PLUG
33 204111 50MM TWIN WHEEL CASTOR WITH PU TYRE
34 227011 BLACK WHEEL HUB CAP
35 403039 BUCKET HANDLE
36 219105 No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW
37 206493 WET DRY CONNECTOR
38 208026 BUCKET HANDLE SPACER
39 219282 M5 X 16MM LONG POZI PAN COUNTERSUNK SCREW
40 206026 POLYPROP BALL
41 225087 FLOAT CAGE SUPPORT
42 225086 FLOAT CAGE
43 225083 FLOAT ASSEMBLY GASKET
44 220235 FLOAT GROMMET
45 207011 FLOAT CAGE GASKET
46 207055 GAUZE FILTER
47 227065 FLUID CONTAINER ASSEMBLY
48 207098 WHITE FILTER (SMS) + U GASKET
49 209050 SINGLE FILTER GRID
50 227640 2 SHOT WHEEL ASSEMBLY
51 227638 BLACK PLAIN TRIM
227688 BLUE PLAIN TRIM
227687 RED PLAIN TRIM
227689 GREEN PLAIN TRIM
227690 YELLOW PLAIN TRIM
52 227396 RED THREADED NECK
227397 BLUE THREADED NECK
227398 GREEN THREADED NECK
227399 YELLOW THREADED NECK
53 325511 PROCESSED TOP MOTOR HOUSING (PRINTED WHITE GEORGE) (LAMB MOTOR)
54 227995 235MM LONG SOLUTION TUBE
55 227922 BOTTOM MOTOR HOUSING
56 325417 370 BLUE DRUM ASSEMBLY + FACE (SPARE PART)
325431 370 RED DRUM ASSEMBLY + FACE (SPARE PART)
325432 370 GREEN DRUM ASSEMBLY + FACE (SPARE PART)
325433 370 YELLOW DRUM ASSEMBLY + FACE (SPARE PART)
57 270167 QUICK RELEASE MOUNTING BRACKET
58 219327 80MM LG COMPRESSION SPRING
59 227926 AIR SEPERATOR
60 227927 SWITCH MOUNTING BRACKET
61 220698 SUPPRESSOR ASSEMBLY
Numatic International Spare Parts

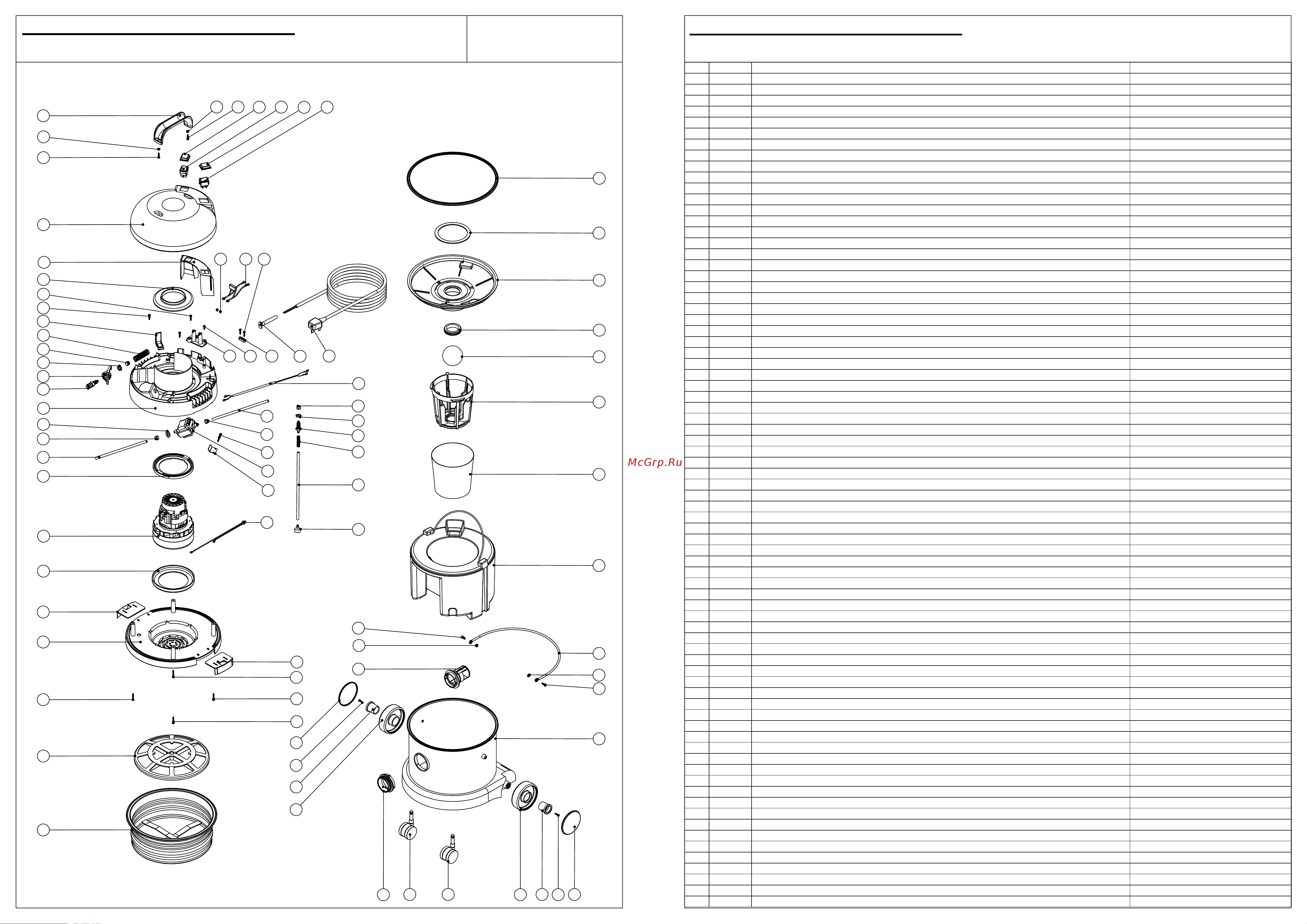

Model No: GVE 370-2 EXPLODED DRAWING
234302
DRAWING: EXP-0733 ISS:A01
19/01/2005
Numatic International Spare Parts
Model No: GVE 370-2 EXPLODED DRAWING
