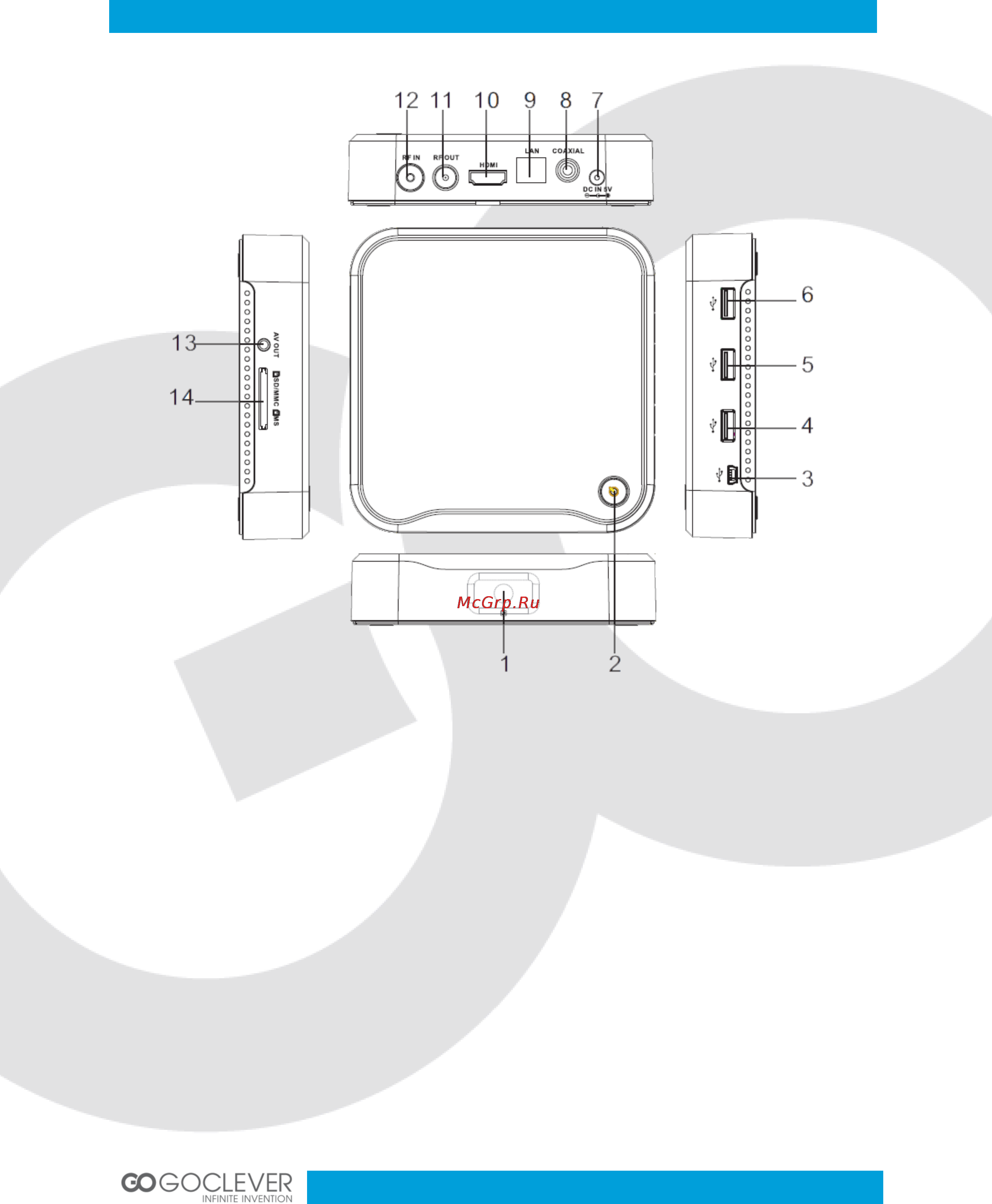

Front and Rear Panel

1. REMOTE CONTROL Sensor: Used to receive the signal from the remote controller.

2. STANDBY button: Switch between standby and operation mode.

3. Mini USB Jack with OTG (On-The-Go): allows this box act as a

peripheral USB device of a computer.

4,5,6 USB Jack: Connects to external USB devices such as USB flash drive,

mobile HDD digital audio/video players, mobile phone ,mouse, keyboard etc.

7. DC IN 5V: Connects to external +5V power supply adapter.

8. COAXIAL: Connects to a coaxial socket on your surround sound system.

9. Ethernet LAN RJ45: 10/100M Ethernet interface for local Network connection.

10. HDMI Output: Connects to HDTV for HD video input.

11. RF IN: This socket connects to your external aerial.

12. RF OUT: This socket will bypass the RF loop through signal to either

your TV or another video system.

13. AV Output: Outputs composite video signal(CVBS) and analog audio

L/R signal, only available when set Setting->Display->Output mode to

480i or 576i.

14. CARD READER Slot: SD/MMC/MS 3 in 1 card slot.
