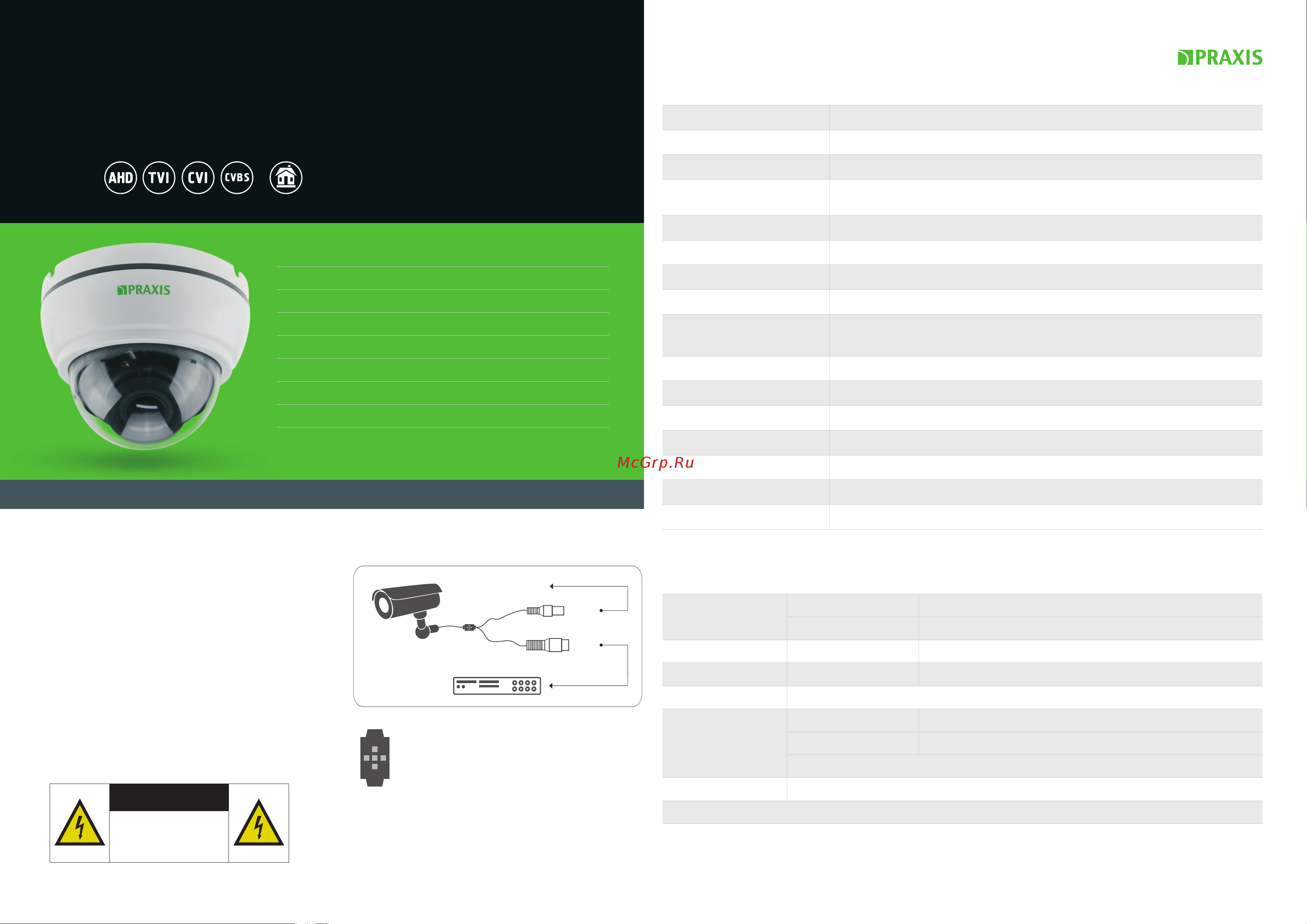

CONNECTION AND CONFIGURATION
Press the following button for 5 seconds in order to
change video format.
<LEFT> — CVBS <RIGHT> — TVI
<UP> — AHD <DOWN> — CVI
Press <ENTER> to access a setup menu. Select one of the items
using buttons <UP> and <DOWN>. In order to change parameter
value use buttons <LEFT> and <RIGHT>.
Press <ENTER> to confirm the selection.
HD-CAMERA
JOYSTICK
VIDEO RECORDER
POWER
POWER SYPPLY 12VDC
VIDEO
PRECAUTIONS
1. Read this user guide carefully before using the camera and keep it for
future reference.
2. Avoid direct eye exposure to LED while it is on.
3. Do not install the camera on anstable surface. It can cause falling or other
hazards.
4. Do not use improper power, it can cause re or electric shock.
5. Do not disassemble or rearrange the camera, it can cause re, electric shock
or other hazards.
6. Stop using the camera when you nd a malfunction like smoke or unusual
heat, it can cause re or electric shock.
7. Do not cut or peel o the cable. Otherwise water can get into the camera
and the warranty will be void.
8. Do not insert any objects into the camera.
9. Power or video cables shall always be loose. Do not tight or twist the cables.
10. Please use the camera within given temperature and electricity limit.
11. Installation shall be performed by qualied personnel only.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
WWW.PRAXIS-CCTV.RU
INDOOR DOME MULTIFORMAT HD CAMERA
SPECIFICATIONS
PP-8111MHD
(
II
)
2.8-12
5M
IMAGE SENSOR / DSP 1/2.5" 5MP CMOS K17 + FH8538E
RESOLUTION 5 MPIX / 4 MPIX / 2 MPIX
VIDEO FORMAT AHD / CVI / TVI / CVBS
LENS VARIFOCAL 2.8-12 ММ
IR LEDS 20 M DISTANCE
HOUSING INDOOR INSTALLATION
POWER SUPPLY 12V DC
CAMERA MAIN MENU
AE
BRIGHTNESS 1 — 20
EXPOSURE MODE GLOBE / BLC (1 — 9)
AWB MODE ATW / MWB (R GAIN, 1 — 127 / B GAIN, 1 — 127)
DAY-NIGHT MODE EXT / AUTO / COLOR / B&W
IMAGE ENHANCE CONTRAST (1 — 16) / SHARPNESS (1 — 16) / COLOR GAIN (1 — 16) / DNR (1 — 16) / D-WDR (OFF / ON)
VIDEO OUTPUT
HD AHD / TVI / CVI / CVBS
VIDEO STANDARD 5MP12.5 / 4MP25 / 4MP30 / 4MP15 / 2MP25 / 2MP30 / 5MP20
REBOOT & APPLY
LANGUAGE ENGLISH
RESET / SAVE-EXIT / EXIT
NOTE: PLEASE READ THIS USER GUIDE CAREFULLY BEFORE USING THE CAMERA
Image Sensor / DSP 1/2.5" CMOS K17 + FH8538E 4K Lite
Resolution 5М (2592 х 1944) / 4М (2560 х 1440) / 2М (1920 х 1080) / 960H
Video Format AHD, HDTVI, HDCVI, CVBS (are changed by joystick)
Video Resolution
digital video interpolation: 8М (3840 x 2160)
AHD, TVI, CVI: 8M @15fps / 5M @20fps / 4M @25fps / 2M @25fps
Lens 2,8 - 12 mm, manual Zoom and Focus adjustment
IR Led up to 20 m distance, 850 nm, photodiode auto control
Minimum Illumination 0.01 Lux @F1.2
S / N Ratio more than 50 dB
Functions
brightness, contrast, sharpness, color gain, white balance, day & night, BLC, DNR,
digital WDR, Control-over-Coax
Video Output BNC
Power Supply 12 V DC (±10%)
Power Consumption 600 mA
Housing Type plastic, for indoor installation
Operating Environment from −10 °С to +55 °С
Dimensions 112 (D) х 87 (H) mm
Weight 600 g
