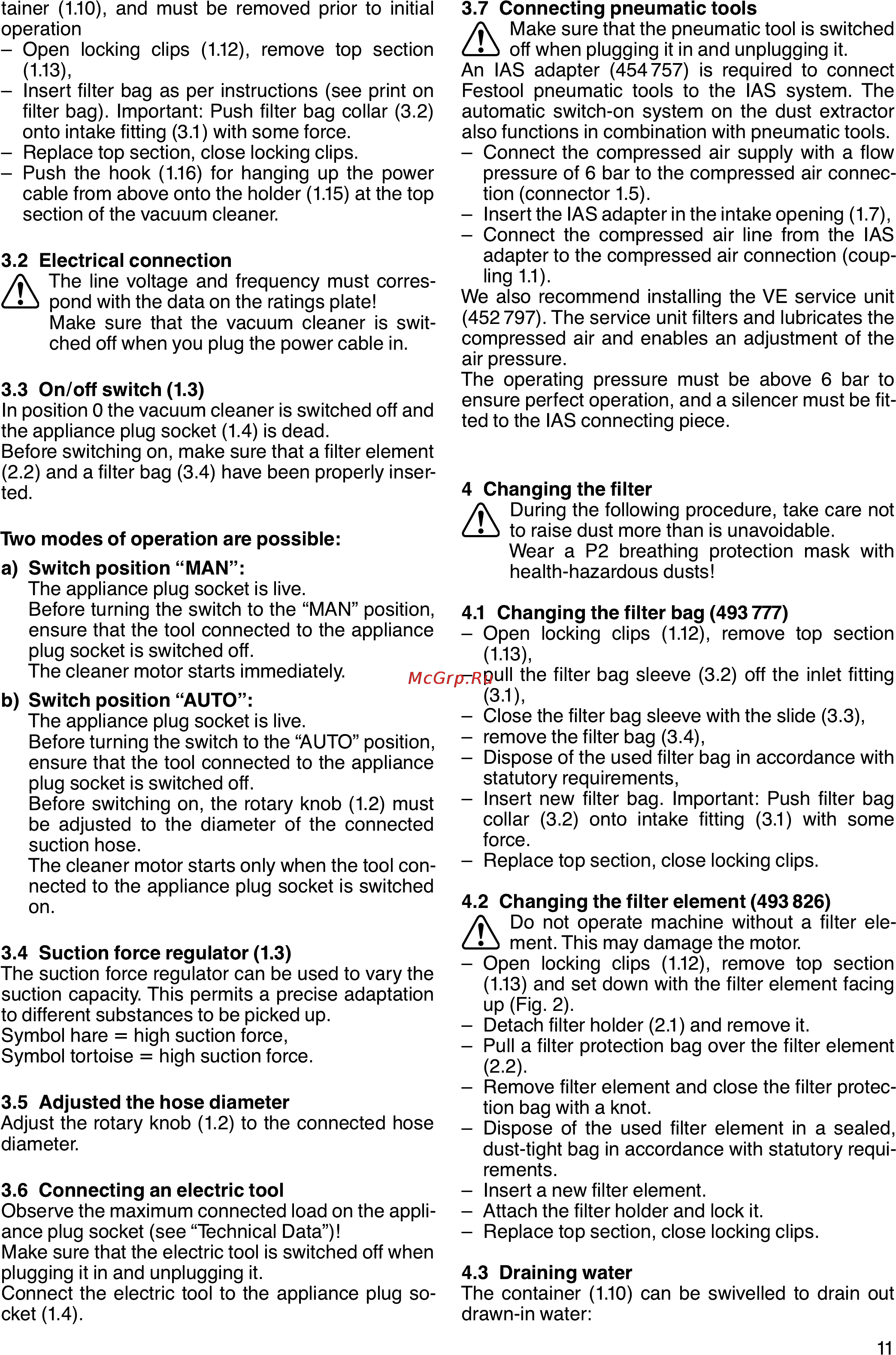

tainer 1 10 and must be removed prior to initial operation Open locking clips 1 12 remove top section 1 13 Insert filter bag as per instructions see print on filter bag Important Push filter bag collar 3 2 onto intake fitting 3 1 with some force Replace top section close locking clips Push the hook 1 16 for hanging up the power cable from above onto the holder 1 15 at the top section of the vacuum cleaner 3 2 Electrical connection The line voltage and frequency must corres pond with the data on the ratings plate Make sure that the vacuum cleaner is swit ched off when you plug the power cable in 3 3 On off switch 1 3 In position 0 the vacuum cleaner is switched off and the appliance plug socket 1 4 is dead Before switching on make sure that a filter element 2 2 and a filter bag 3 4 have been properly inser ted Two modes of operation are possible a Switch position MAN The appliance plug socket is live Before turning the switch to the MAN position ensure that the tool connected to the appliance plug socket is switched off The cleaner motor starts immediately b Switch position AUTO The appliance plug socket is live Before turning the switch to the AUTO position ensure that the tool connected to the appliance plug socket is switched off Before switching on the rotary knob 1 2 must be adjusted to the diameter of the connected suction hose The cleaner motor starts only when the tool con nected to the appliance plug socket is switched on 3 4 Suction force regulator 1 3 The suction force regulator can be used to vary the suction capacity This permits a precise adaptation to different substances to be picked up Symbol hare high suction force Symbol tortoise high suction force 3 5 Adjusted the hose diameter Adjust the rotary knob 1 2 to the connected hose diameter 3 6 Connecting an electric tool Observe the maximum connected load on the appli ance plug socket see Technical Data Make sure that the electric tool is switched off when plugging it in and unplugging it Connect the electric tool to the appliance plug so cket 1 4 3 7 Connecting pneumatic tools Make sure that the pneumatic tool is switched off when plugging it in and unplugging it An IAS adapter 454757 is required to connect Festool pneumatic tools to the IAS system The automatic switch on system on the dust extractor also functions in combination with pneumatic tools Connect the compressed air supply with a flow pressure of 6 bar to the compressed air connec tion connector 1 5 Insert the IAS adapter in the intake opening 1 7 Connect the compressed air line from the IAS adapter to the compressed air connection coup ling 1 1 We also recommend installing the VE service unit 452797 The service unit filters and lubricates the compressed air and enables an adjustment of the air pressure The operating pressure must be above 6 bar to ensure perfect operation and a silencer must be fit ted to the IAS connecting piece 4 Changing the filter During the following procedure take care not to raise dust more than is unavoidable Wear a P2 breathing protection mask with health hazardous dusts 4 1 Changing the filter bag 493 777 Open locking clips 1 12 remove top section 1 13 pull the filter bag sleeve 3 2 off the inlet fitting 3 1 Close the filter bag sleeve with the slide 3 3 remove the filter bag 3 4 Dispose of the used filter bag in accordance with statutory requirements Insert new filter bag Important Push filter bag collar 3 2 onto intake fitting 3 1 with some force Replace top section close locking clips 4 2 Changing the filter element 493 826 Do not operate machine without a filter element This may damage the motor Open locking clips 1 12 remove top section 1 13 and set down with the filter element facing up Fig 2 Detach filter holder 2 1 and remove it Pull a filter protection bag over the filter element 2 2 Remove filter element and close the filter protec tion bag with a knot Dispose of the used filter element in a sealed dust tight bag in accordance with statutory requi rements Insert a new filter element Attach the filter holder and lock it Replace top section close locking clips 4 3 Draining water The container 1 10 can be swivelled to drain out drawn in water 11
