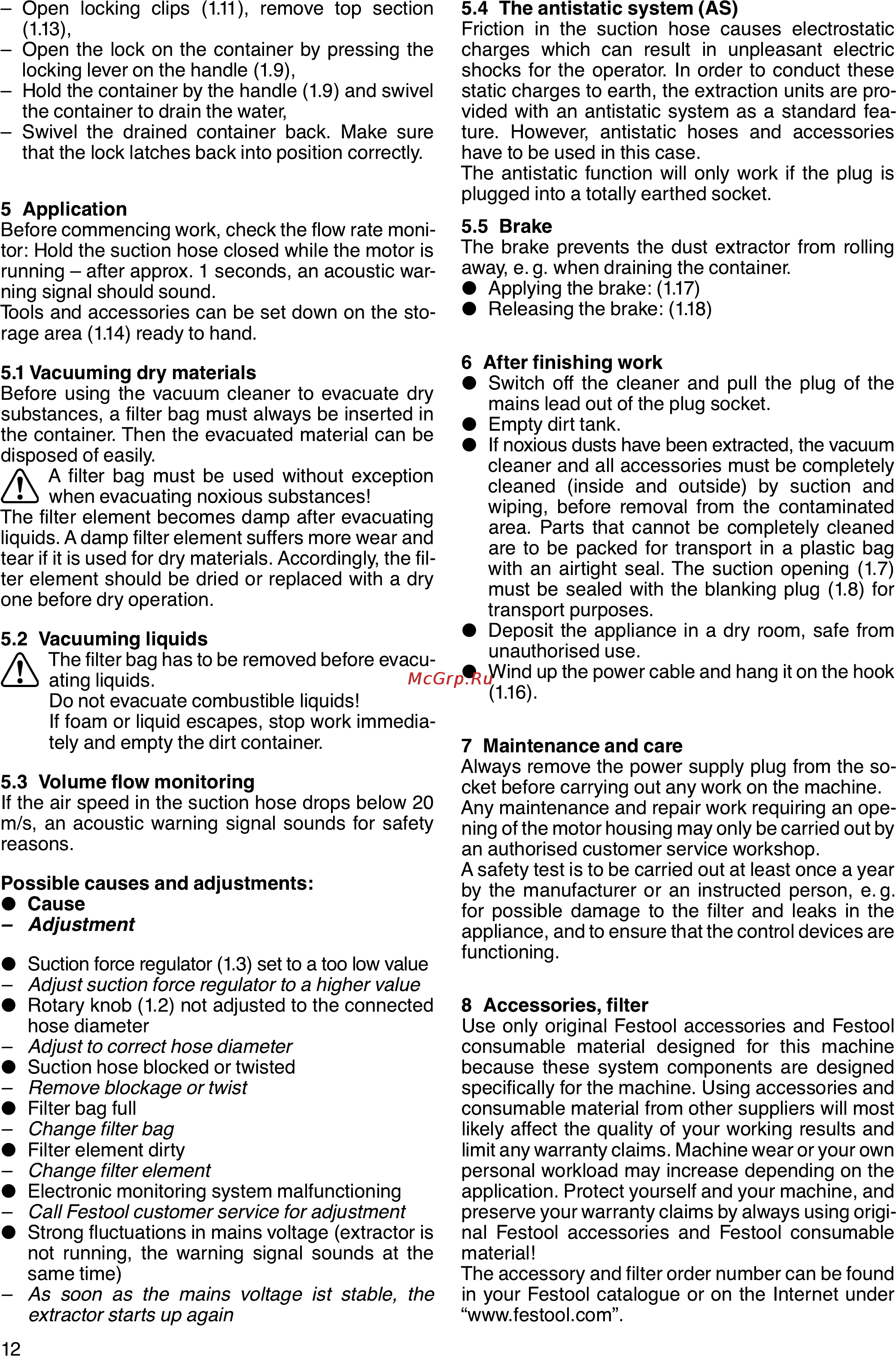

Open locking clips 1 11 remove top section 1 13 Open the lock on the container by pressing the locking lever on the handle 1 9 Hold the container by the handle 1 9 and swivel the container to drain the water Swivel the drained container back Make sure that the lock latches back into position correctly 5 Application Before commencing work check the flow rate moni tor Hold the suction hose closed while the motor is running after approx 1 seconds an acoustic war ning signal should sound Tools and accessories can be set down on the sto rage area 1 14 ready to hand 5 1 Vacuuming dry materials Before using the vacuum cleaner to evacuate dry substances a filter bag must always be inserted in the container Then the evacuated material can be disposed of easily A filter bag must be used without exception when evacuating noxious substances The filter element becomes damp after evacuating liquids A damp filter element suffers more wear and tear if it is used for dry materials Accordingly the fil ter element should be dried or replaced with a dry one before dry operation 5 2 Vacuuming liquids The filter bag has to be removed before evacuating liquids Do not evacuate combustible liquids If foam or liquid escapes stop work immedia tely and empty the dirt container 5 3 Volume flow monitoring If the air speed in the suction hose drops below 20 m s an acoustic warning signal sounds for safety reasons Possible causes and adjustments Cause Adjustment Suction force regulator 1 3 set to a too low value Adjust suction force regulator to a higher value Rotary knob 1 2 not adjusted to the connected hose diameter Adjust to correct hose diameter Suction hose blocked or twisted Remove blockage or twist Filter bag full Change filter bag Filter element dirty Change filter element Electronic monitoring system malfunctioning Call Festool customer service for adjustment Strong fluctuations in mains voltage extractor is not running the warning signal sounds at the same time As soon as the mains voltage ist stable the extractor starts up again 12 5 4 The antistatic system AS Friction in the suction hose causes electrostatic charges which can result in unpleasant electric shocks for the operator In order to conduct these static charges to earth the extraction units are pro vided with an antistatic system as a standard fea ture However antistatic hoses and accessories have to be used in this case The antistatic function will only work if the plug is plugged into a totally earthed socket 5 5 Brake The brake prevents the dust extractor from rolling away e g when draining the container Applying the brake 1 17 Releasing the brake 1 18 6 After finishing work Switch off the cleaner and pull the plug of the mains lead out of the plug socket Empty dirt tank If noxious dusts have been extracted the vacuum cleaner and all accessories must be completely cleaned inside and outside by suction and wiping before removal from the contaminated area Parts that cannot be completely cleaned are to be packed for transport in a plastic bag with an airtight seal The suction opening 1 7 must be sealed with the blanking plug 1 8 for transport purposes Deposit the appliance in a dry room safe from unauthorised use Wind up the power cable and hang it on the hook 1 16 7 Maintenance and care Always remove the power supply plug from the so cket before carrying out any work on the machine Any maintenance and repair work requiring an ope ning of the motor housing may only be carried out by an authorised customer service workshop A safety test is to be carried out at least once a year by the manufacturer or an instructed person e g for possible damage to the filter and leaks in the appliance and to ensure that the control devices are functioning 8 Accessories filter Use only original Festool accessories and Festool consumable material designed for this machine because these system components are designed specifically for the machine Using accessories and consumable material from other suppliers will most likely affect the quality of your working results and limit any warranty claims Machine wear or your own personal workload may increase depending on the application Protect yourself and your machine and preserve your warranty claims by always using origi nal Festool accessories and Festool consumable material The accessory and filter order number can be found in your Festool catalogue or on the Internet under www festool com
