Timberk T-SF1601RC [15/32] Operation manual

IM2021

 Secure it with rear grille nut.

 Slide blades on motor shaft so that claws on motor shaft match the blades slots.

 Screw blade cap on shaft by turning counter clockwise.

 Put front grille on rear grille and close clips or screw grille ring to secure grilles

together.

 Adjust the fan vertically by vertical adjustment screw.

 The fan is ready for work.

8. OPERATION MANUAL

 Place fan only onto dry flat unyielding surface.

BUTTONS:

 ON/SPEED - button switches the fan on and shifts between different speeds. Press

button 1 for a low speed, 2 for a medium speed and 3 for a high

speed.

 OFF - turning off the fan

LIGHT INDICATORS:

 0.5h…4h - fan operating time set

 H – high speed;

 M – middle speed;

 L – minimum speed;

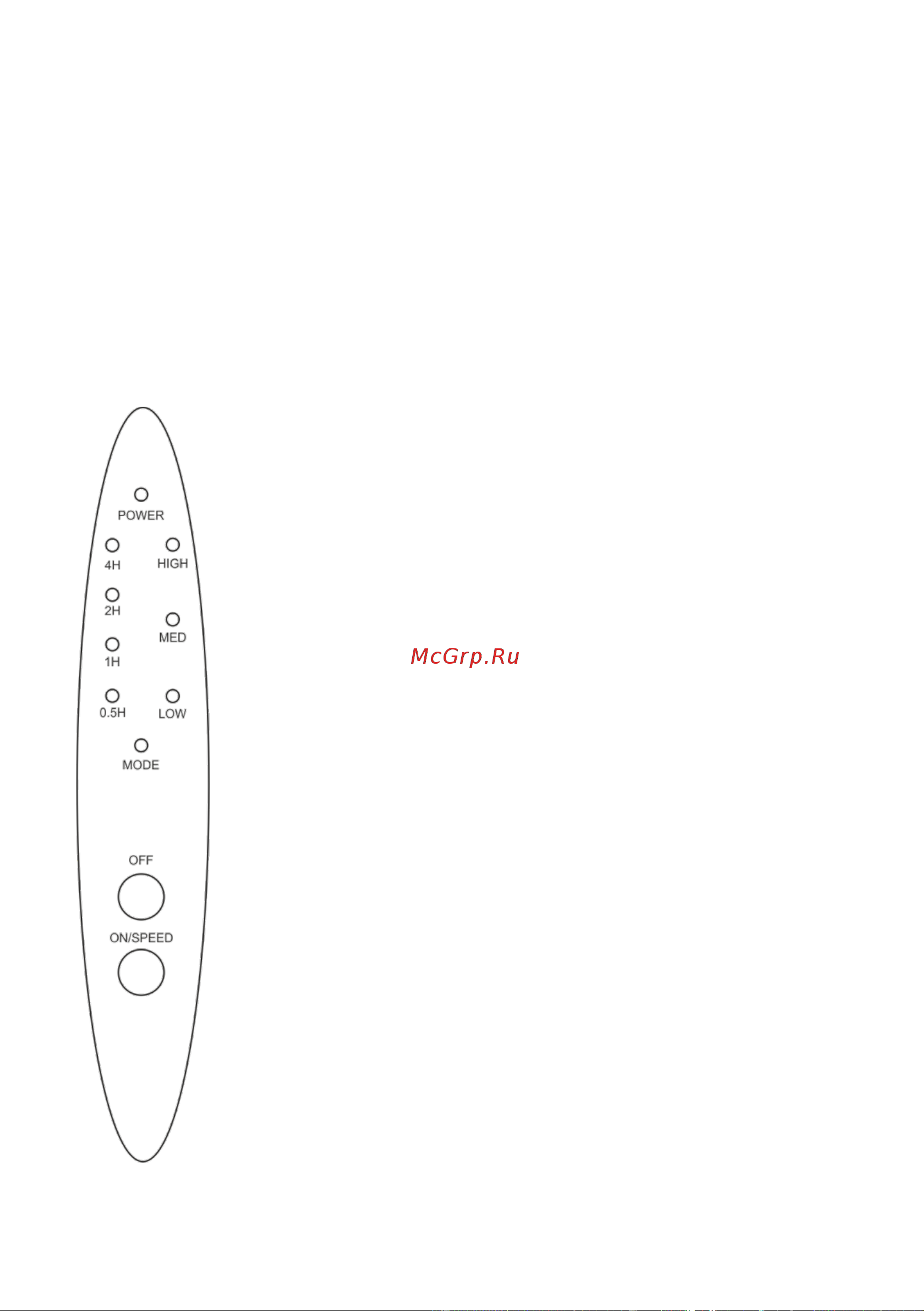

REMOTE CONTROLLER:

 Mode settings can be made manually by using switch mode

buttons on control box or by using remote controller:

 ON/SPEED - button switches the fan on and shifts between

different speeds.

 OFF - turning off the fan

 Mode button helps to choose operating mode of fan.

 Normal - air stream at constant rate

 Nature - air stream by intense waves

 Sleep - air stream by weak waves. The fan will operate

at high speed in Nature mode for 30 minutes, the at medium

speed in Nature mode for 30 minutes, and then it will operate at

low speed in Nature mode for remaining time.

 Timer button helps to adjust fan operating time up to maximum

time of 7 hours and a half. Each pressing of this button adds half

an hour of fan operating time. For example, if you wish to set

operating time of 5 hours and a half, you need to do the following:

Press the button “Timer” several times and see on display: 0.5h,

1h, 4h, that means you have set 5.5h.

NOTE: The remote control is powered by two 1.5 V AAA batteries.

Batteries for the remote control are not included in the kit.
