IM2021

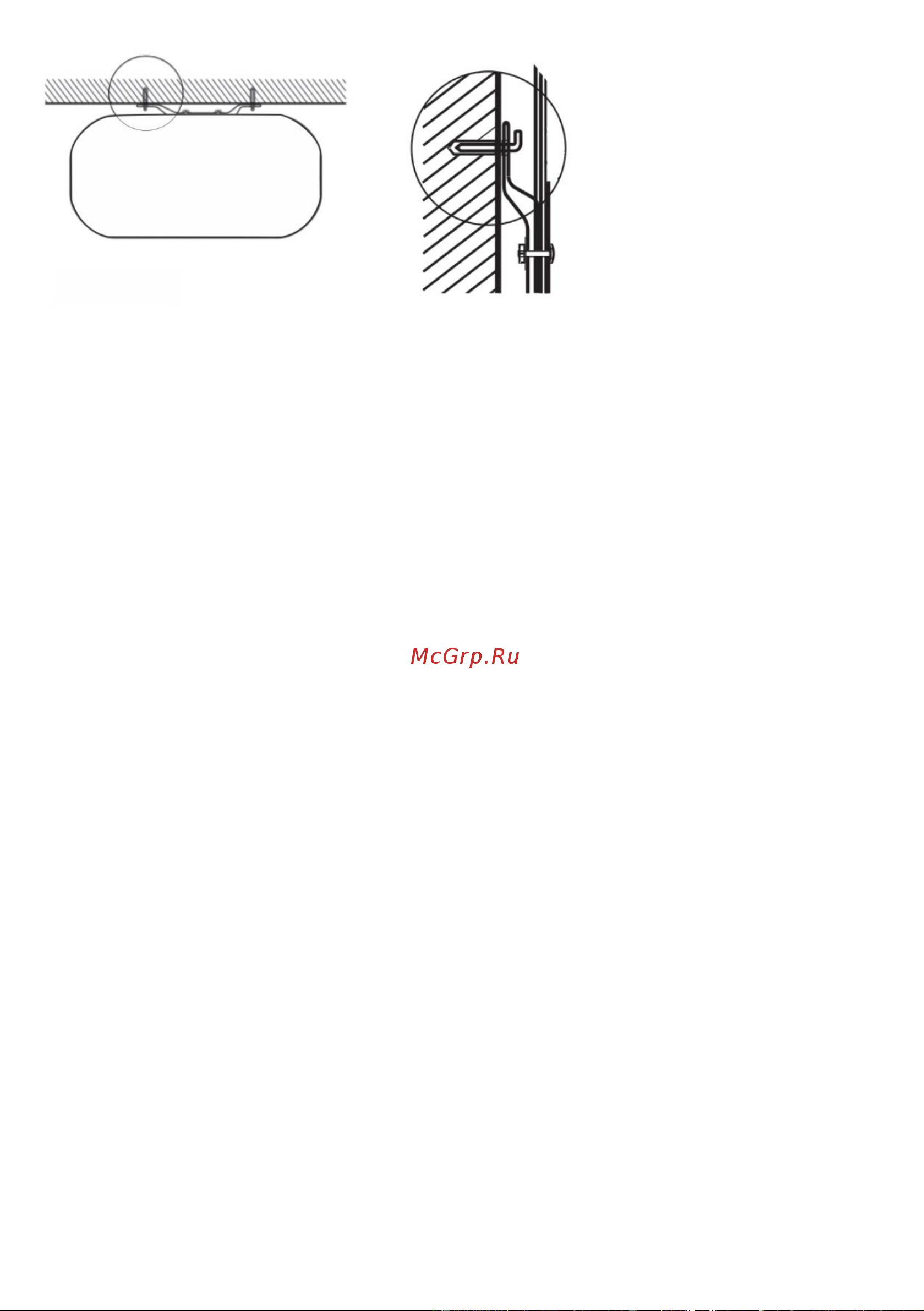

Fig 2 Fig 3

Once you have selected the proper site for the water heater, determine the spots for

the anchor bolt holes with hooks (according to the specifications of the product you

have acquired). Drill two holes of appropriate depth in the wall using a drill bit with the

diameter corresponding to the anchor bolts supplied with the water heater. Insert the

bolts into the holes and tighten the bolt nuts firmly by turning the bolt hooks clockwise,

then hang the water heater on the anchor bolt hooks (see Fig. 2,3).

Connecting to the water main

1. The water heater must be connected to the water main with a minimum pressure of

0.1 MPa and a maximum pressure of 0.6 MPa.

NOTE!

The water heater is a product, in which water pressure corresponds to water pressure

in the water main. If water pressure in the water main exceeds 0.6 MPa, a pressure-

reducing valve must be installed before the heater to ensure that water pressure does

not exceed 0.6 MPa.

2. To connect the water heater to the water main, 12 mm (G1/2) diameter pipes are

used.

3. Use rubber seal gaskets on the threaded ends of the pipes in order to prevent

leakage when connecting the pipes.

4. Screw the safety relief valve on the inlet nozzle, which is marked in blue and has a

water flow direction arrow in such a way that that the water flow coincides with the

direction of the arrow on the valve body. Put the water drainage tube* (water may

appear during heating) on the pressure relief port of the safety relief valve to allow

water drainage into the sewer (see Fig. 5) (the tube must be directed downwards and

must not be bent).

5. Connect the heater with the mounted valve to the water main and install the shut-off

valve at the water inlet point.

6. Connect the required number of water consumption points to the outlet nozzle

marked in red.
