5. Double check the fastening. Turn the appliance over to correct position and set it on a flat, horizontal

surface strictly upright.

Electric convector is ready to work!

Connecting to the network

1. Convector is designed for connection to the plug with single-phase voltage 220V~/50Hz.

2. Before connecting, make sure that the voltage is correct as specified on the nameplate with the

technical data of the device.

3. When connecting the convector to the mains, the applicable electrical safety rules must be observed.

4. Electric outlet must be properly grounded. The socket must be rated for at least 10A. Electrical plug and

socket must always be dry to prevent electrical leakage. Regularly check that the electrical plug is firmly

connected to the outlet. Check the plug in the following order: insert the plug into the socket. After half

an hour, turn off the convector and unplug the power cord, check if the plug is warm with the hand. If

the plug is heated to a temperature above 50

С, in order to avoid damage, accidents, fire, due to poor

electrical contact replace the socket with help of a specialist.

WARNING!

The power socket should be rated at least 10A. Electric cable with a core with cross-section of at least 3x1.5

(copper)

8. OPERATION OF THE DEVICE

T-EC-S1M, T-EC-X1M series

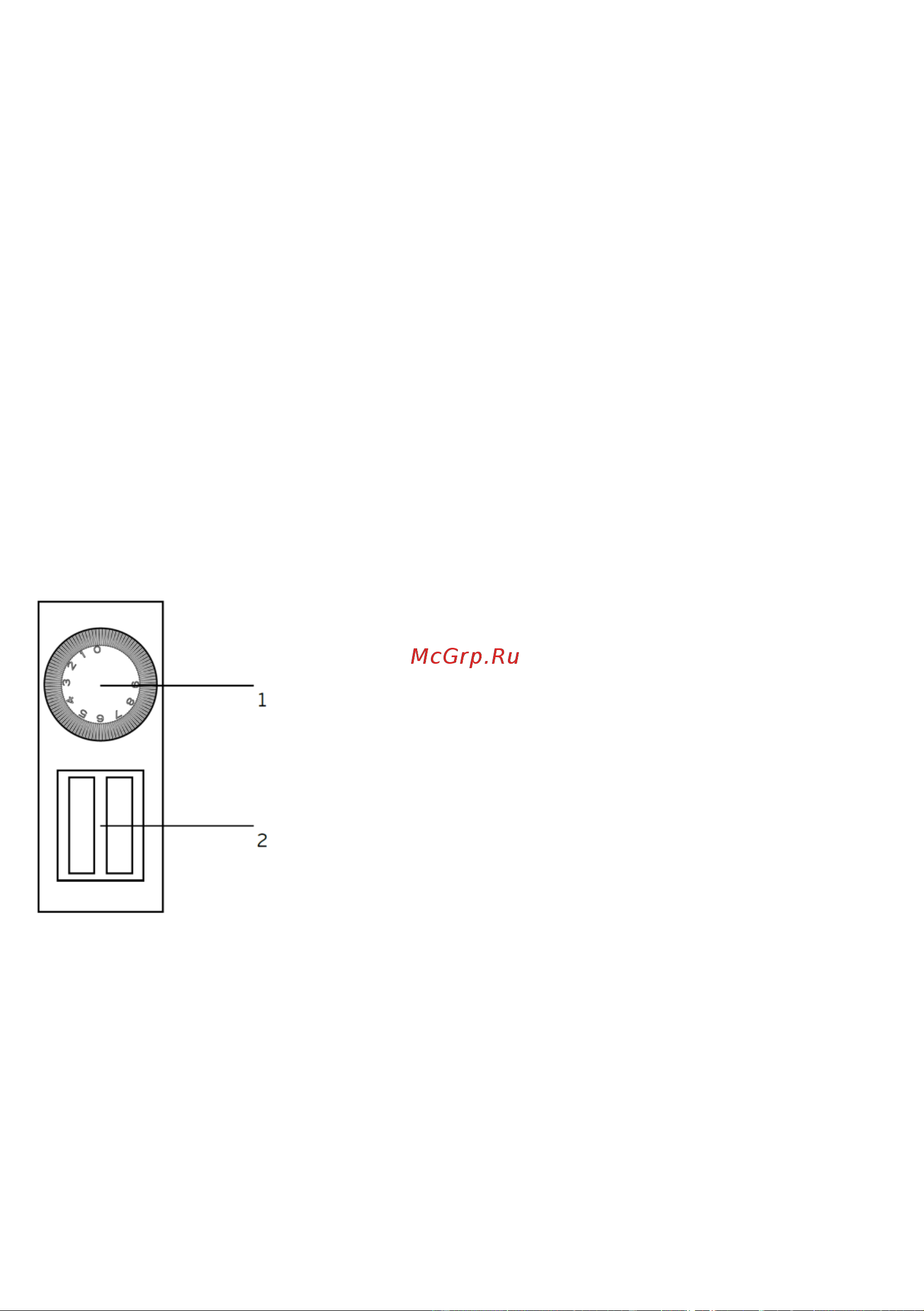

Fig. 5

1. Thermostat knob

2. Power mode switch

Turning on

Connect the convector to the mains by inserting the plug of the power cord into a power outlet,

and set the power mode switch to the "I" position.

Heating power mode selection

Set the power mode switch to “I” to select a low heating output. Set another switch button to the “I” position

to select a high heating output.
