Using the Computer

1. Make sure to turn off the computer and product. Connect the cable as below sketch map

form to .

3. Press button on the front switch panel to turn the power on.

When monitor power is turned on, the 'Self Image Setting

Function' is executed automatically.

(Only Analog Mode)

NOTE

‘ Self Image Setting Function’?

This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function

automatically adjusts the display to optimal settings for individual input signals. If you want to adjust the monitor while in use, or wish to

manually run this function once again, push the ‘AUTO/SET’ button on the front panel of the monitor. Otherwise, you may execute the ‘

Factory reset’ option on the OSD adjustment menu. However, be aware that this option initializes all the menu items except ‘Language’.

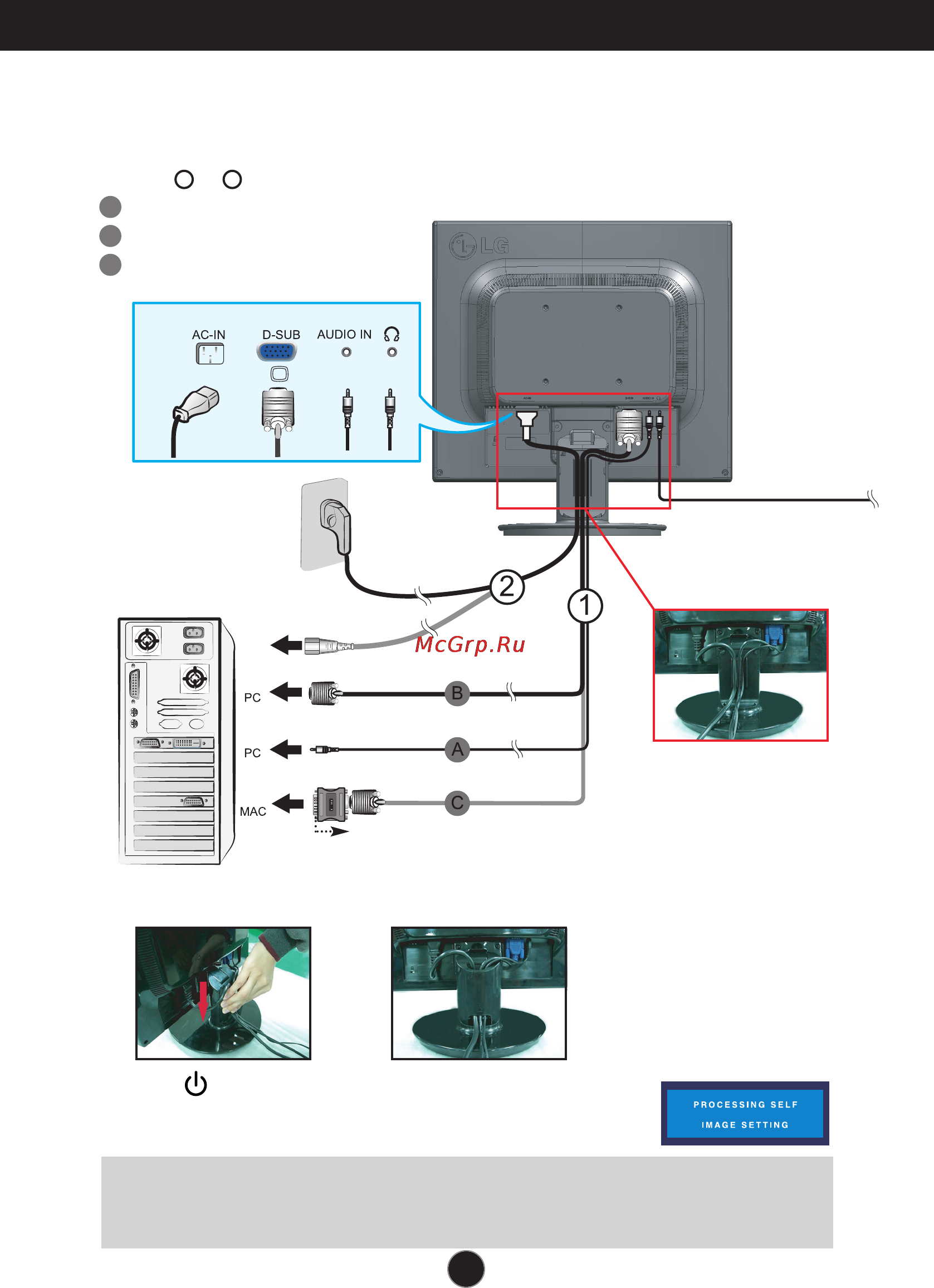

Connecting the Display

Wall-outlet type

Analog signal

Audio signalPower Cord

Connect Audio Cable

Connect Dsub Cable (PC)

Connect Dsub Cable (Mac)

PC-outlet type

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to

change the 15 pin high density (3 row) D-sub VGA connector on

the supplied cable to a 15 pin 2 row connector.

(Connects to the *LINE OUT jack of the PC sound card.)

Headphone/Earphone Input

Automatically mutes the speaker

volume when the headphones are

plugged in.

2. Insert the Cable Deco Cover in the Stand Body in the correct direction.

Fix the power cord & signal cable

as shown in the picture.
