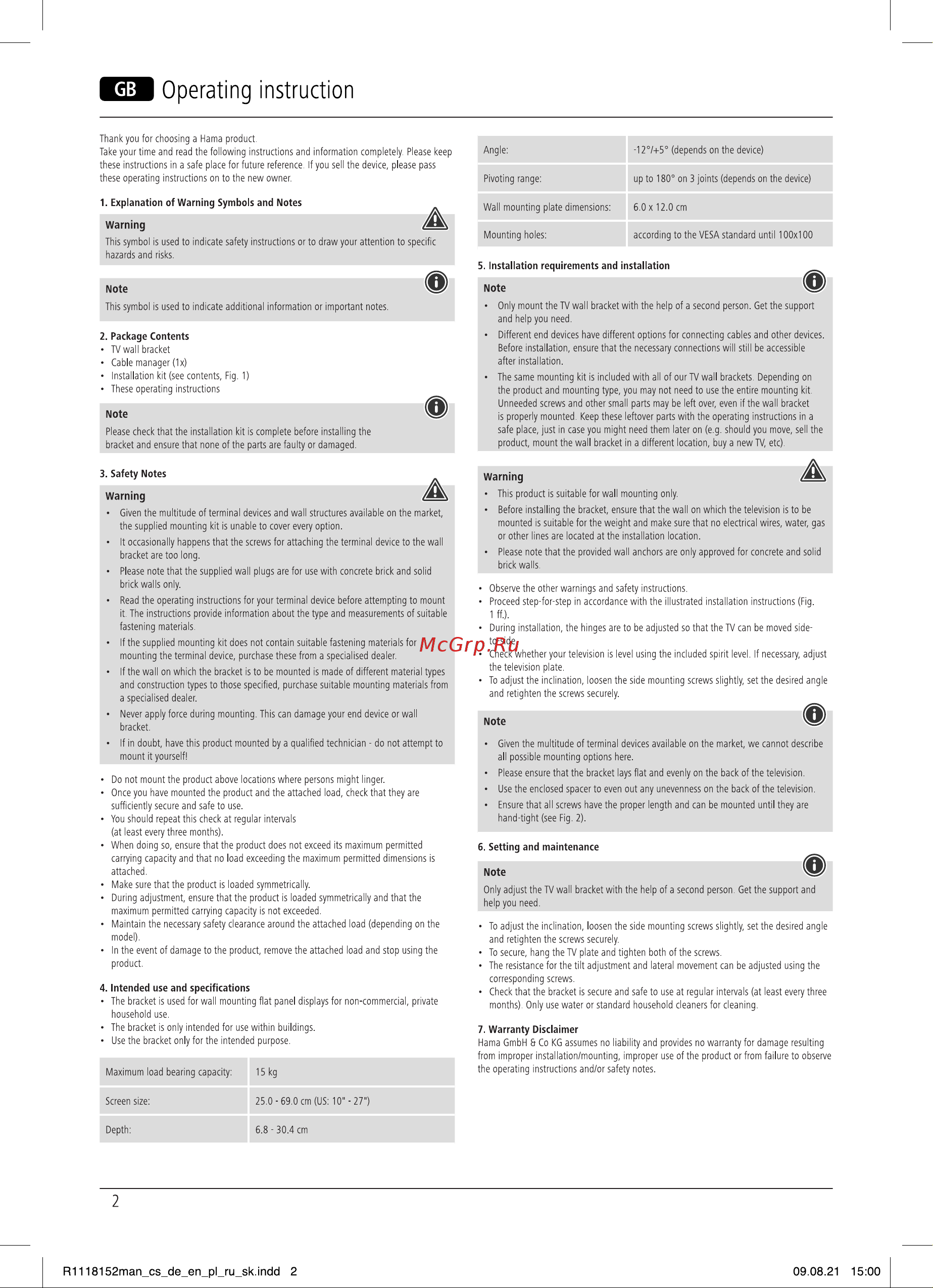

GB Operating instruction Thank you for choosing a Hama product Take your time and read the following instructions and information completely Please keep Angle 12 5 depends on the device Pivoting range up to 180 on 3 joints depends on the device Wall mounting plate dimensions 6 0 x 12 0 cm Mounting holes according to the VESA standard until 100x100 these instructions in a safe place for future reference If you sell the device please pass these operating instructions on to the new owner 1 Explanation of Warning Symbols and Notes Warning This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks 5 Installation requirements and installation Note Note This symbol is used to indicate additional information or important notes Only mount the TV wall bracket with the help of a second person Get the support and help you need Different end devices have different options for connecting cables and other devices 2 Package Contents TV wall bracket Before installation ensure that the necessary connections will still be accessible Cable manager 1x after installation Installation kit see contents Fig 1 The same mounting kit is included with all of our TV wall brackets Depending on These operating instructions the product and mounting type you may not need to use the entire mounting kit Un needed screws and other small parts may be left over even if the wall bracket is properly mounted Keep these leftover parts with the operating instructions in a Please check that the installation kit is complete before installing the safe place just in case you might need them later on e g should you move sell the bracket and ensure that none of the parts are faulty or damaged product mount the wall bracket in a different location buy a new TV etc 3 Safety Notes A Warning Given the multitude of terminal devices and wall structures available on the market the supplied mounting kit is unable to cover every option It occasionally happens that the screws for attaching the terminal device to the wall A warning This product is suitable for wall mounting only Before installing the bracket ensure that the wall on which the television is to be mounted is suitable for the weight and make sure that no electrical wires water gas or other lines are located at the installation location Please note that the provided wall anchors are only approved for concrete and solid bracket are too long Please note that the supplied wall plugs are for use with concrete brick and solid brick walls only brick walls Observe the other warnings and safety instructions Read the operating instructions for your terminal device before attempting to mount it The instructions provide information about the type and measurements of suitable fastening materials Proceed step for step in accordance with the illustrated installation instructions Fig 1 ff During installation the hinges are to be adjusted so that the TV can be moved side If the supplied mounting kit does not contain suitable fastening materials for mounting the terminal device purchase these from a specialised dealer If the wall on which the bracket is to be mounted is made of different material types and construction types to those specified purchase suitable mounting materials from to side Check whether your television is level using the included spirit level If necessary adjust the television plate To adjust the inclination loosen the side mounting screws slightly set the desired angle and retighten the screws securely a specialised dealer Never apply force during mounting This can damage your end device or wall bracket If in doubt have this product mounted by a qualified technician do not attempt to mount it yourself Given the multitude of terminal devices available on the market we cannot describe all possible mounting options here Do not mount the product above locations where persons might linger Once you have mounted the product and the attached load check that they are Please ensure that the bracket lays flat and evenly on the back of the television Use the enclosed spacer to even out any unevenness on the back of the television Ensure that all screws have the proper length and can be mounted until they are sufficiently secure and safe to use You should repeat this check at regular intervals hand tight see Fig 2 at least every three months When doing so ensure that the product does not exceed its maximum permitted 6 Setting and maintenance carrying capacity and that no load exceeding the maximum permitted dimensions is attached Note Make sure that the product is loaded symmetrically During adjustment ensure that the product is loaded symmetrically and that the maximum permitted carrying capacity is not exceeded Maintain the necessary safety clearance around the attached load depending on the model Only adjust the TV wall bracket with the help of a second person Get the support and help you need To adjust the inclination loosen the side mounting screws slightly set the desired angle and retighten the screws securely In the event of damage to the product remove the attached load and stop using the product To secure hang the TV plate and tighten both of the screws The resistance for the tilt adjustment and lateral movement can be adjusted using the corresponding screws 4 Intended use and specifications Check that the bracket is secure and safe to use at regular intervals at least every three The bracket is used for wall mounting flat panel displays for non commercial private months Only use water or standard household cleaners for cleaning household use The bracket is only intended for use within buildings 7 Warranty Disclaimer Use the bracket only for the intended purpose Hama GmbH Co KG assumes no liability and provides no warranty for damage resulting from improper installation mounting improper use of the product or from failure to observe Maximum load bearing capacity 15 kg Screen size 25 0 69 0 cm US 10 27 Depth 6 8 30 4 cm the operating instructions and or safety notes 2 R1118152man_cs_de_en_pl_ru_sk indd 2 09 08 21 15 00
