Soundmax SM-LED40M04 — инструкция по подключению антенн и внешних устройств [5/38]

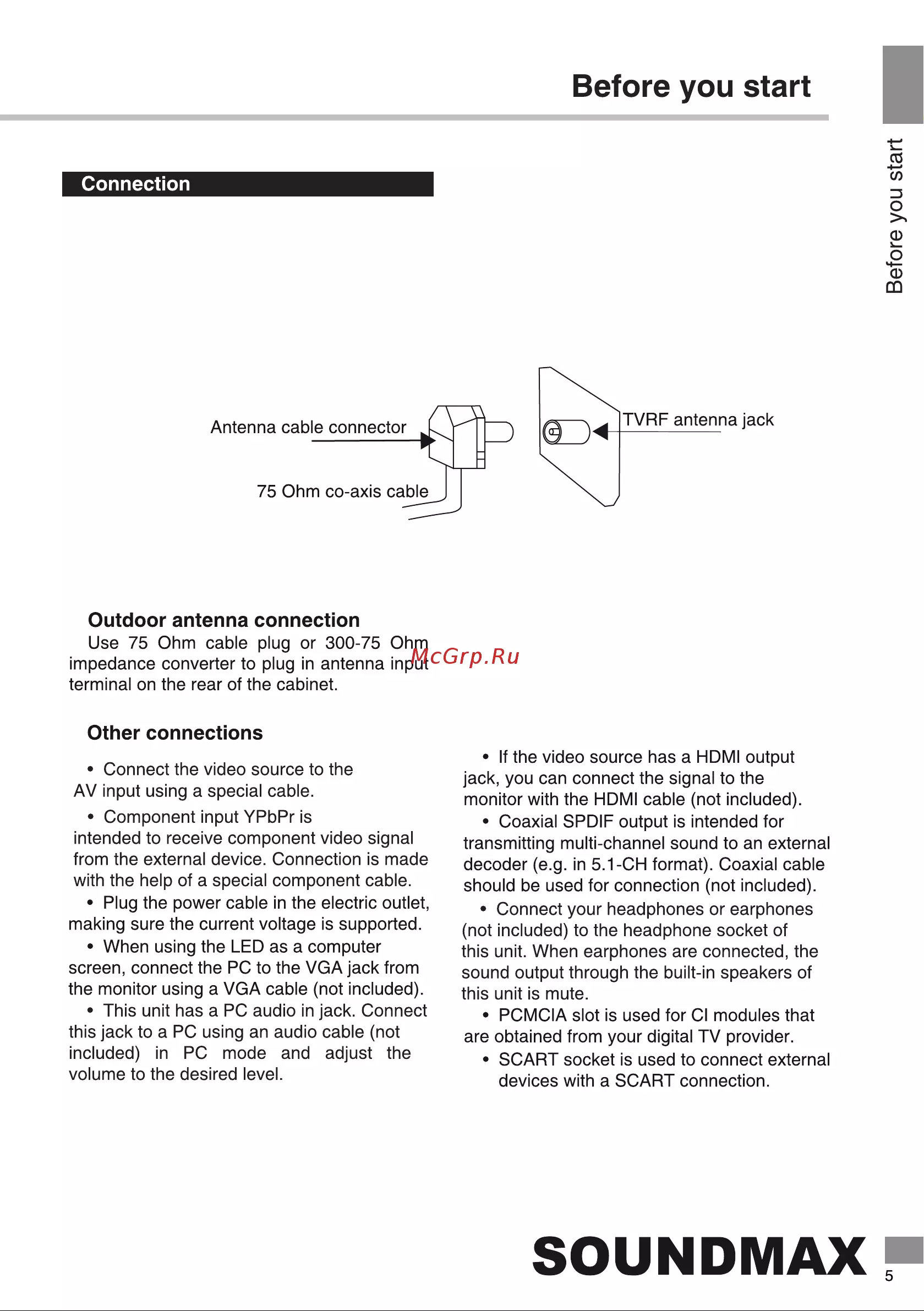

Before you start Before you start Connection Outdoor antenna connection Use 75 Ohm cable plug or 300 75 Ohm impedance converter to plug in antenna input terminal on the rear of the cabinet Other connections Connect the video source to the AV input using a special cable Component input YPbPr is intended to receive component video signal from the external device Connection is made with the help of a special component cable Plug the power cable in the electric outlet making sure the current voltage is supported When using the LED as a computer screen connect the PC to the VGA jack from the monitor using a VGA cable not included This unit has a PC audio in jack Connect this jack to a PC using an audio cable not included in PC mode and adjust the volume to the desired level If the video source has a HDMI output jack you can connect the signal to the monitor with the HDMI cable not included Coaxial SPDIF output is intended for transmitting multi channel sound to an external decoder e g in 5 1 CH format Coaxial cable should be used for connection not included Connect your headphones or earphones not included to the headphone socket of this unit When earphones are connected the sound output through the built in speakers of this unit is mute PCMCIA slot is used for Cl modules that are obtained from your digital TV provider SCART socket is used to connect external devices with a SCART connection SOUNDMAX 5
