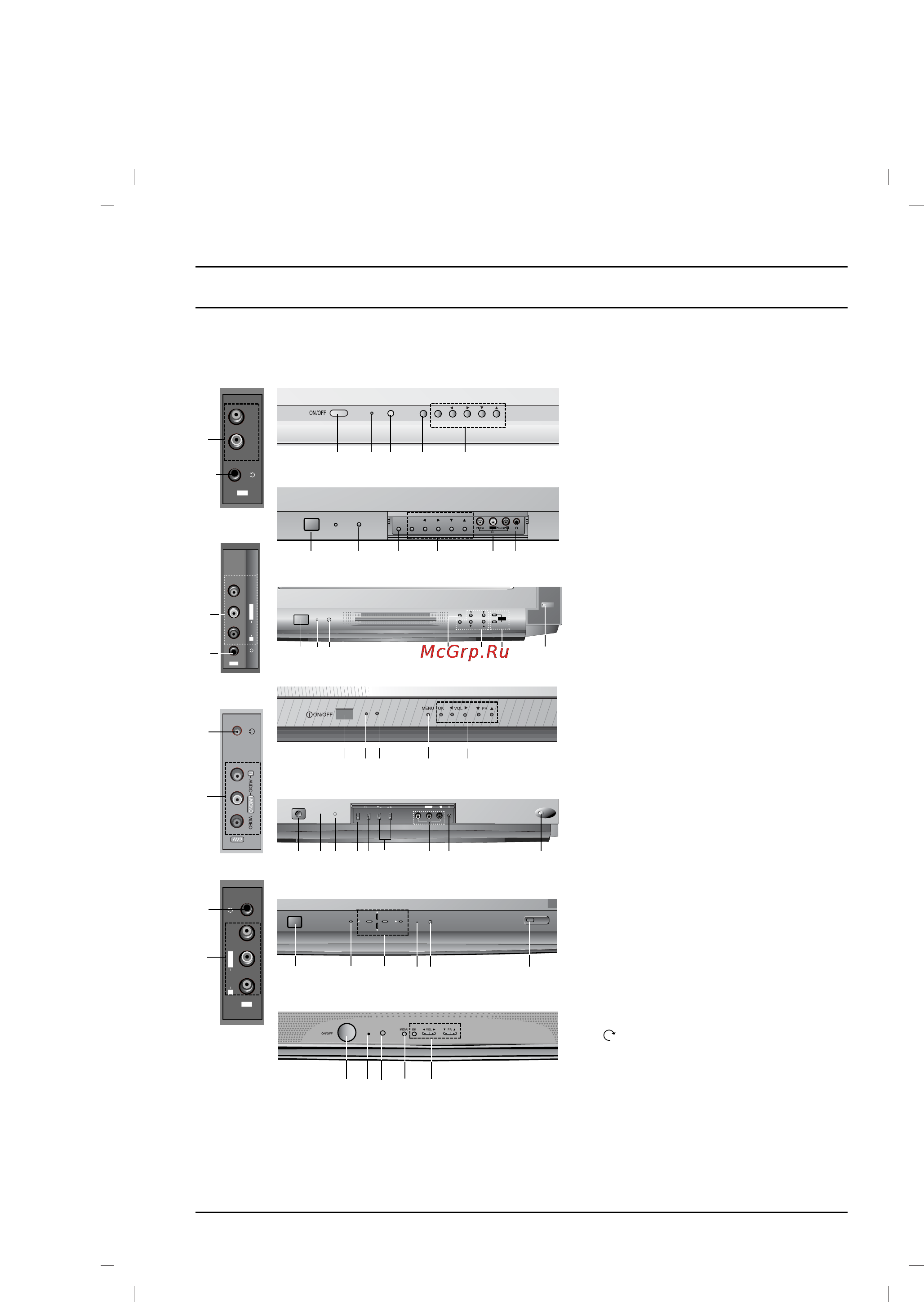

Location and function of controls
7
Front panel
17/21FA3 series
ON/OFF
MENU OK VOL PR
2
L/MONO
1
3 4
5
6
7
2
ON/OFF
MENU
VOL SOUND
OK
PR PICTURE
TURBO
15/21Q9 series
1
2
3 5 9
8
4
VIDEO
L/MONO
RAUDIO
A
V
2
7
6
VIDEO AUDIO
A
V
7
6
21FE6 series
1
2
3
5
4
7
6
VIDEO
L/MONO
R
AUDIO
A
V
2
7
6
21FC1 series
MENU
OK
VOL
PR
1 2 3 4 5
1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in
standby mode.
dims when the set is switched on.
3. REMOTE CONTROL SENSOR
Note : Only use the supplied remote
control handset. (When you use oth-
ers, they’ll be not able to function.)
4. MENU (option)
selects a menu.
5. OK (option)
accepts your selection or displays the
current mode.
FF
/
GG
(Volume Up/Down) (option)
adjusts the volume.
adjusts menu settings.
DD
/
EE
(Programme Up/Down) (option)
selects a programme or a menu item.
switches the set on from standby.
6. AUDIO (or AUDIO-L/R)/VIDEO IN
SOCKETS (AV or AV2) (option)
Connect the audio/video out sockets of
external equipment to these sockets.
7. HEADPHONE SOCKET (option)
Connect the headphone plug to this
socket.
8. EYE (option)
adjusts picture according to the sur-
rounding conditions.
9. TURBO SOUND / PICTURE (option)
switches Turbo sound or Turbo picture
function on or off.
10. TV/AV (option)
selects TV or AV mode.
clears the menu from the screen.
switches the set on from standby.
11. (Function) (option)
selects volume, EYE (option), picture
items or brief auto programme while
the menus not display.
12. + / - (
DD
/
EE
) (option)
adjusts the function or selects a programme.
switches the set on from standby.
Note : Shown is a simplified representa-
tion of front or side panel. Here shown
may be somewhat different from your set.
TV/AV (VOL)PR VIDEO
AUDIO
AV2
L/MONO
R
( ) ( )
ON/OFF
21Q6 series
1
2 3 10
11
6
7
8
12
ON/OFF
MENU
O K
VOL VOL
PR
21Q4 series
1
4
2 3
8
5
21FJ5 series
1
2
3
4
5
