Using CLOUD Solution

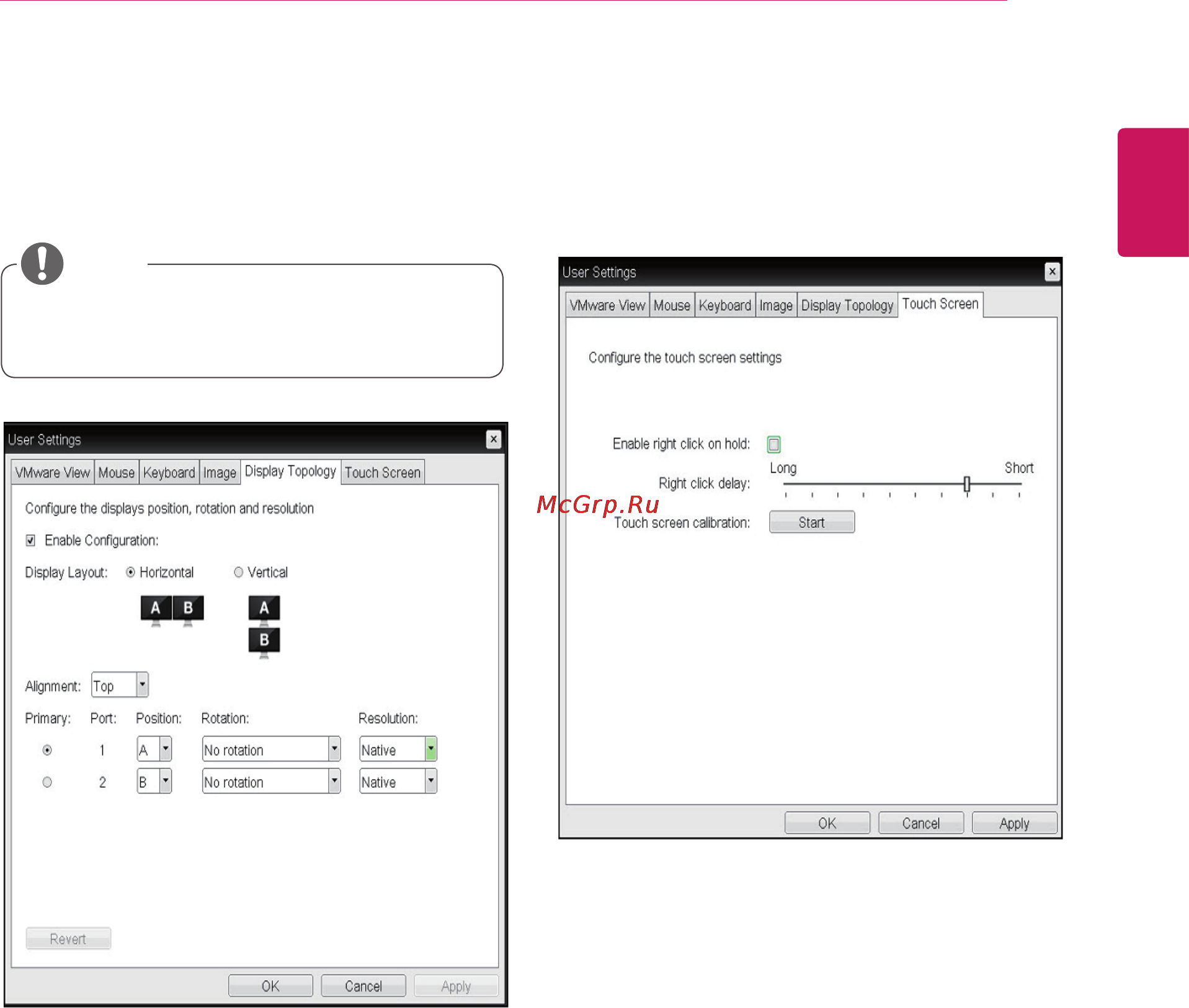

Display Topology Tab

The Display Topology tab allows the user to specify

the position and alignment of a connected second-

ary monitor.

It is applicable when the VMware View Con-

nection Server version is 4.5 or later.

NOTE

Enable Configuration

When this option is selected, you can set the

display position and alignment. You can save the

settings by clicking the Apply or OK button, and

the settings will be reset if you initialize the monitor

set.

Display Layout

This option allows the user to specify the direction

of monitor connection: vertical or horizontal.

Alignment

This option allows the user to specify the align-

ment position of the monitor to be connected when

there is a resolution difference between the two

monitors.

Primary

This option allows the user to change the primary/

secondary settings of the connected monitor.

Touch Screen Tab

The Touch Screen tab allows the user to specify

the touch sensitivity and alignment when the moni-

tor supports the touch screen function.

Enable right click on hold

If this option is selected, clicking and holding the

touch screen for several seconds works the same

as the mouse right click.

Right Click Delay

This option allows the user to make moving the

pointer position work the same as the mouse right

click. You can also specify the distance to move

(from Long to Short).

Touch screen calibration

The alignment of a touch screen is started when

clicking the Start button.
