Dell Latitude 5521-8063 [11/31] Table 2 battery charge and status led indicator

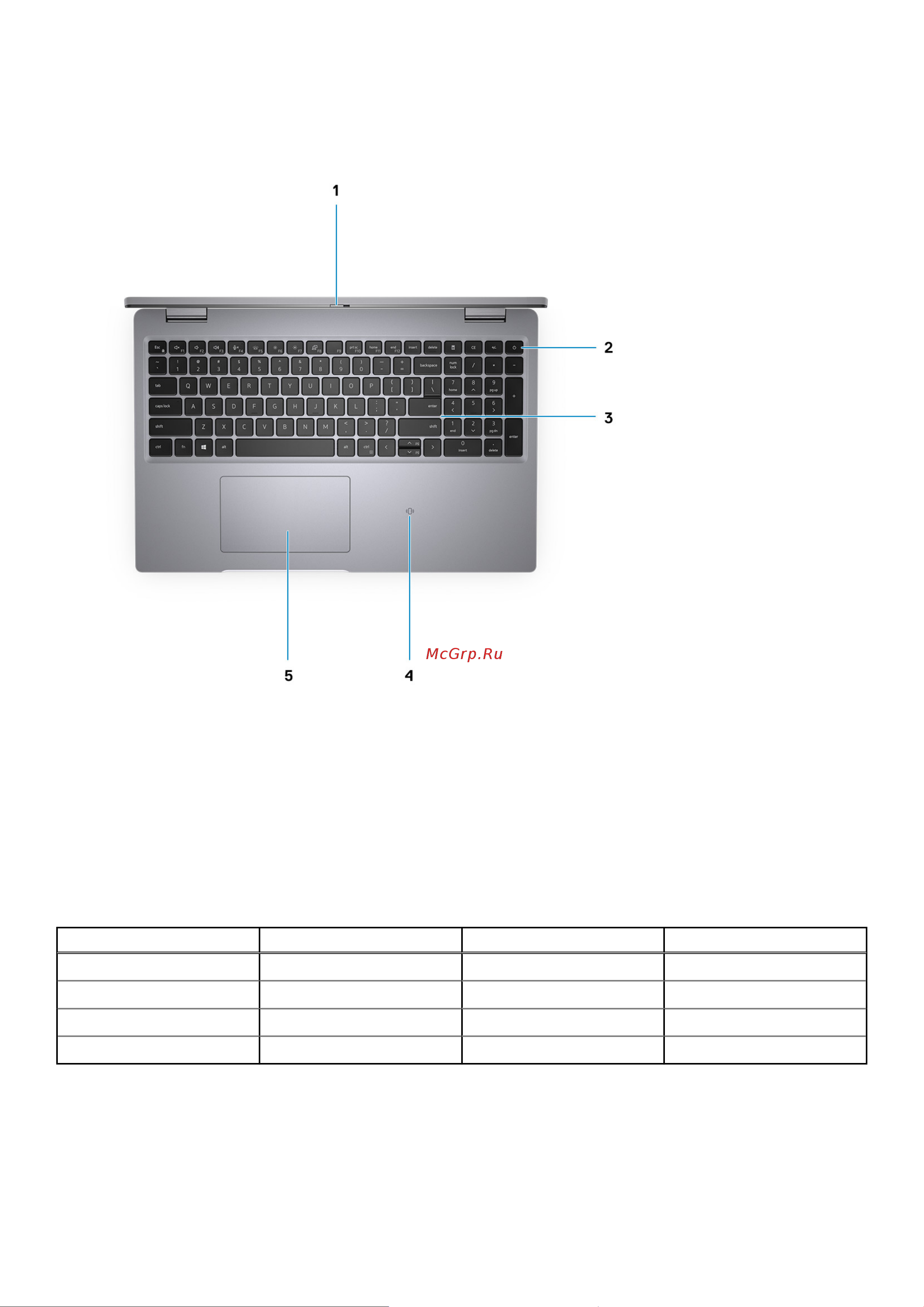

Palmrest

1. Camera shutter

2. Power button with fingerprint reader (optional)

3. Keyboard

4. Contactless smart card reader (Optional)

5. Clickpad

Battery charge and status LED

Table 2. Battery charge and status LED Indicator

Power Source LED Behavior computer Power State Battery Charge Level

AC Adapter Off S0 - S5 Fully Charged

AC Adapter Solid White S0 - S5 < Fully Charged

Battery Off S0 - S5 11-100%

Battery Solid Amber (590+/-3 nm) S0 - S5 < 10%

● S0 (ON) - Computer is turned on.

● S4 (Hibernate) - The computer consumes the least power compared to all other sleep states. The computer is almost at an

OFF state, expect for a trickle power. The context data is written to hard drive.

● S5 (OFF) - The computer is in a shutdown state.

Views of Latitude 5521
