LG N1941W-PF [21/29] F engine
![LG N1941W-PF [21/29] F engine](/views2/1086495/page21/bg15.png)
A19

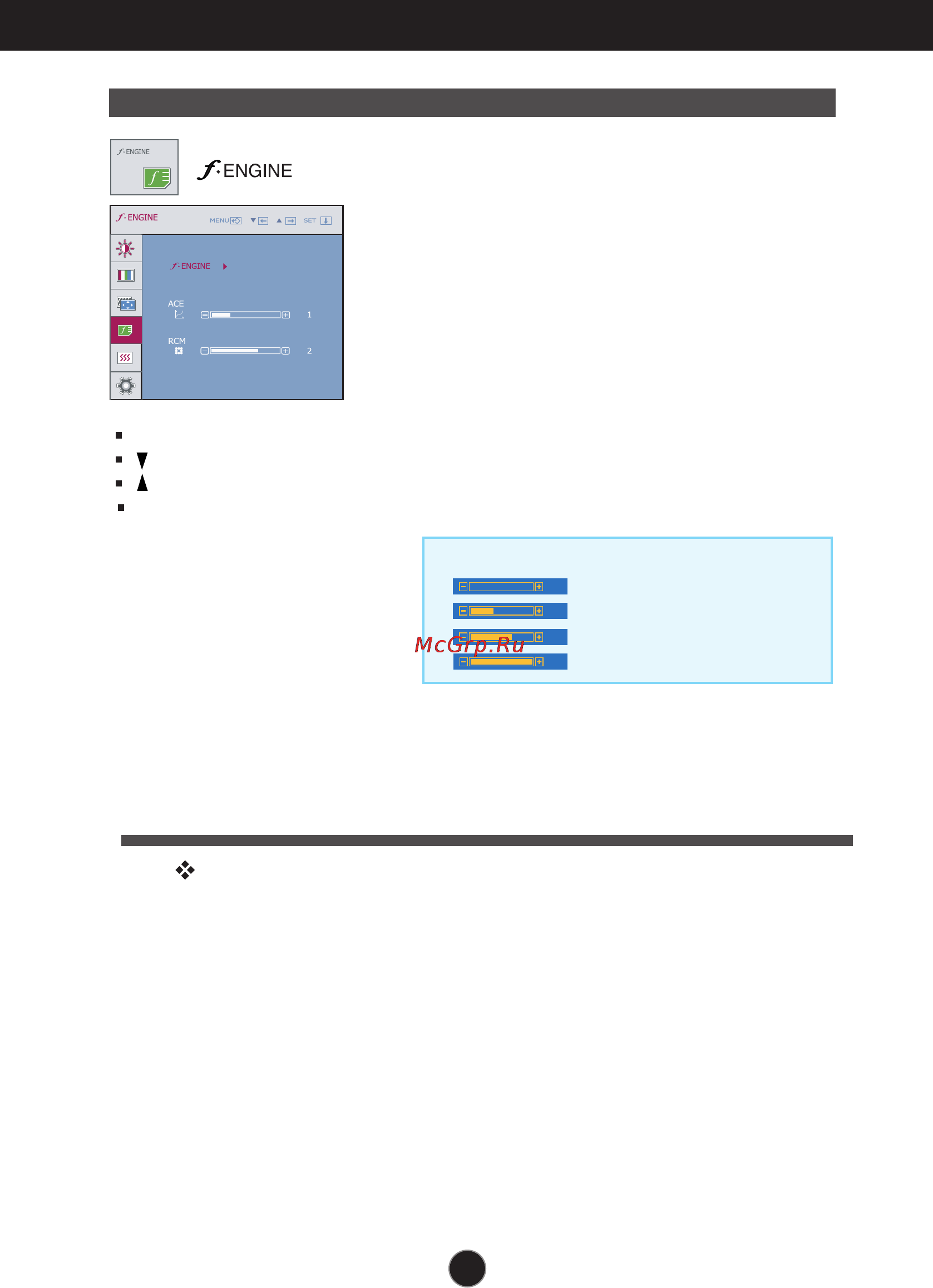

On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
MOVIE
INTERNET
NORMAL
DEMO
USER
INTERNET
: For text images (Word processing etc.)
MOVIE
: For animation images in videos or movies
This is under normal operating conditions.
This is just for advertising to customer in the
shops. It’s setting is same with Movie mode and
screen is divided by half.
This feature lets you easily select the best desired
image condition optimized to the environment
(ambient illumination, image types etc).
User
You can manually adjust ACE or RCM.
You can save or restore the adjusted value even
when using a different environment.
...
ACE(Adaptive Clarity Enhancer): Selects the clarity mode.
...
RCM(Real Color Management): Selects the color mode.
Not applied
Green enhance
Flesh tone
Color Enhance
0
1
2
3
USER
MENU : Exit
: Decrease
: Increase
SET :
Select another
sub-menu
The INTERNET and NORMAL features become enabled for X-PORT input.
