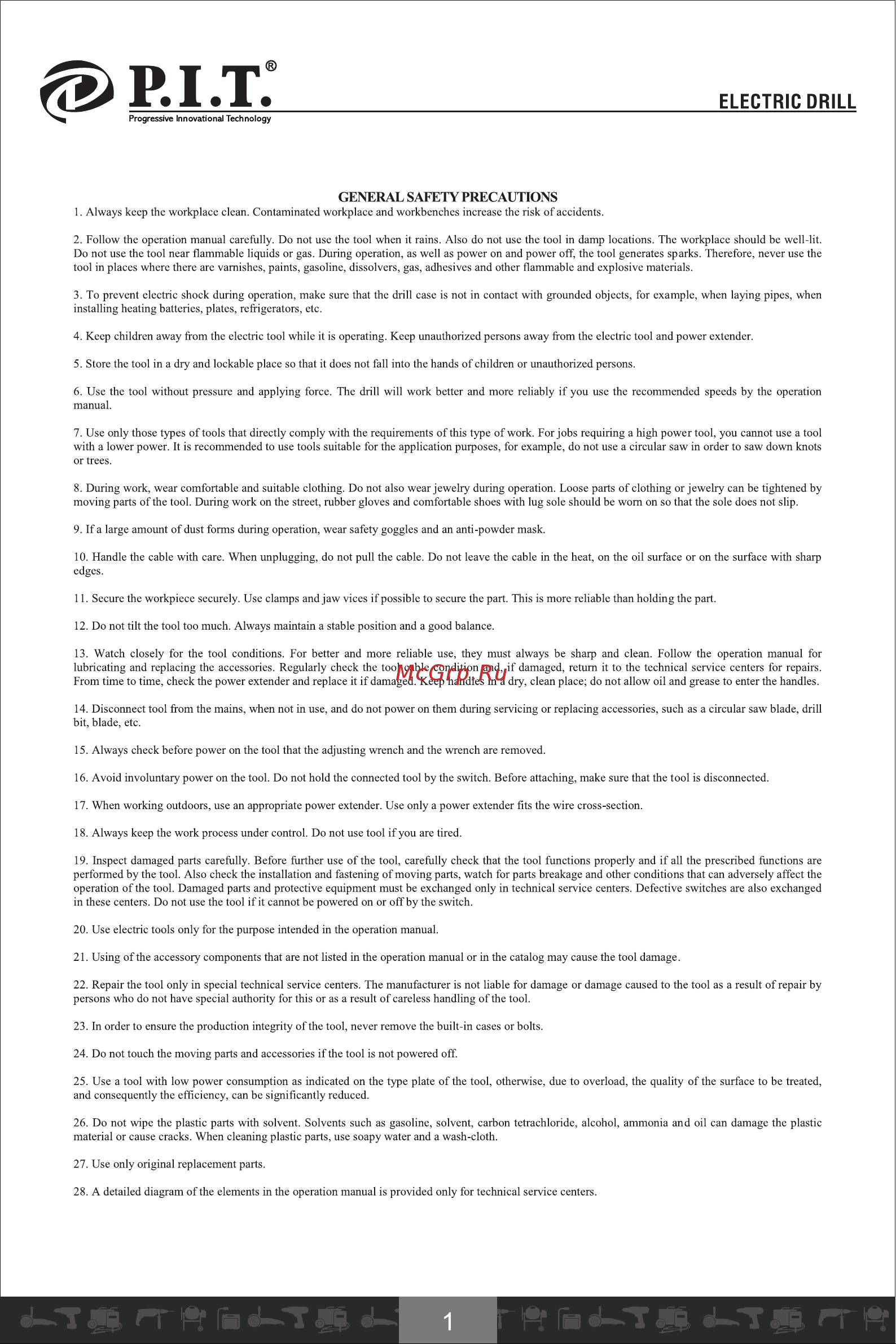

ELECTRIC DRILL GENERAL SAFETY PRECAUTIONS 1 Always keep the workplace clean Contaminated workplace and workbenches increase the risk of accidents 2 Follow the operation manual carefully Do not use the tool when it rains Also do not use the tool in damp locations The workplace should be well lit Do not use the tool near flammable liquids or gas During operation as well as power on and power off the tool generates sparks Therefore never use the tool in places where there arc varnishes paints gasoline dissolvers gas adhesives and other flammable and explosive materials 3 To prevent electric shock during operation make sure that the drill case is not in contact with grounded objects for example when laying pipes when installing heating batteries plates refrigerators etc 4 Keep children away from the electric tool while it is operating Keep unauthorized persons away from the electric tool and power extender 5 Store the tool in a dry and lockable place so that it docs not fall into the hands of children or unauthorized persons 6 Use the tool without pressure and applying force The drill will work better and more reliably if you use the recommended speeds by the operation manual 7 Use only those types of tools that directly comply with the requirements of this type of wort For jobs requiring a high power tool you cannot use a tool with a lower power It is recommended to use tools suitable for the application purposes for example do not use a circular saw in order to saw down knots or trees 8 During work wear comfortable and suitable clothing Do not also wear jewelry during operation Loose parts of clothing or jewelry can be tightened by moving parts of the tool During work on the street rubber gloves and comfortable shoes with lug sole should be worn on so that the sole does not slip 9 If a large amount of dust forms during operation wear safety goggles and an anti powder mask 10 Handle the cable with care When unplugging do not pull the cable Do not leave the cable in the heat on the oil surface or on the surface with sharp edges 11 Secure the workpiece securely Use clamps and jaw vices if possible to secure the part This is more reliable than holding the part 12 Do not tilt the tool too much Always maintain a stable position and a good balance 13 Watch closely for the tool conditions For better and more reliable use they must always be sharp and clean Follow the operation manual for lubricating and replacing the accessories Regularly check the tool cable condition and if damaged return it to the technical service centers for repairs From time to time check the power extender and replace it if damaged Keep handles in a dry clean place do not allow oil and grease to enter the handles 14 Disconnect tool from the mains when not in use and do not power on them during servicing or replacing accessories such as a circular saw blade drill bit blade etc 15 Always check before power on the tool that the adjusting wrench and the wrench are removed 16 Avoid involuntary power on the tool Do not hold the connected tool by the switch Before attaching make sure that the tool is disconnected 17 When working outdoors use an appropriate power extender Use only a power extender fits the wire cross section 18 Always keep the work process under control Do not use tool if you arc tired 19 Inspect damaged parts carefully Before further use of the tool carefully check that the tool functions properly and if all the prescribed functions are performed by the tool Also check the installation and fastening of moving parts watch for parts breakage and other conditions that can adversely affect the operation of the tool Damaged parts and protective equipment must be exchanged only in technical service centers Defective switches are also exchanged in these centers Do not use the tool if it cannot be powered on or off by the switch 20 Use electric tools only for the purpose intended in the operation manual 21 Using of the accessory components that are not listed in the operation manual or in the catalog may cause the tool damage 22 Repair the tool only in special technical service centers The manufacturer is not liable for damage or damage caused to the tool as a result of repair by persons who do not have special authority for this or as a result of careless handling of the tool 23 In order to ensure the production integrity of the tool never remove the built in cases or bolts 24 Do not touch the moving parts and accessories if the tool is not powered off 25 Use a tool with low power consumption as indicated on the type plate of the tool otherwise due to overload the quality of the surface to be treated and consequently the efficiency can be significantly reduced 26 Do not wipe the plastic pans with solvent Solvents such as gasoline solvent carbon tetrachloride alcohol ammonia and oil can damage the plastic material or cause cracks When cleaning plastic parts use soapy water and a wash cloth 27 Use only original replacement parts 28 A detailed diagram of the elements in the operation manual is provided only for technical service centers 1
