PC Connection

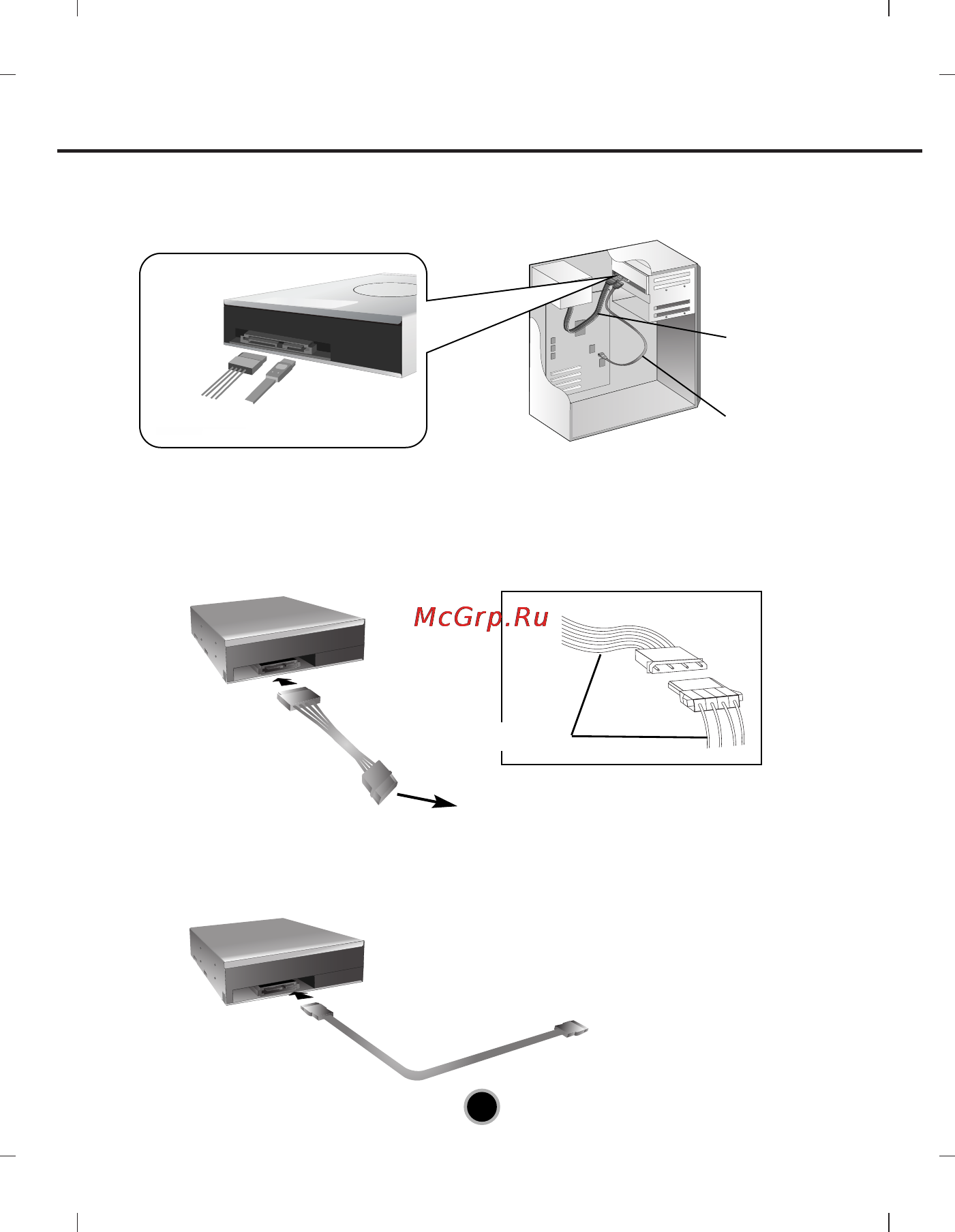

The Super Multi DVD Rewriter connects to the motherboard of the host computer
using a SATA interface cable.
Connecting the SATA Power Cable
Connect the power cable so the projection of the cable connector side to come to the
left side. Be careful not to connect upside down.
NOTE : Improper connection may damage the drive and void the warranty. Generally,
the power connector can only fit one way.
Connecting the SATA Data Cable
Connect the data cable. Be careful not to connect upside down.
5
Connect to the power
connector of the PC.
Connect to the SATA
connector on the PC's
Motherboard.
Red
Data cable
Power cable
Data cable
Power
cable
