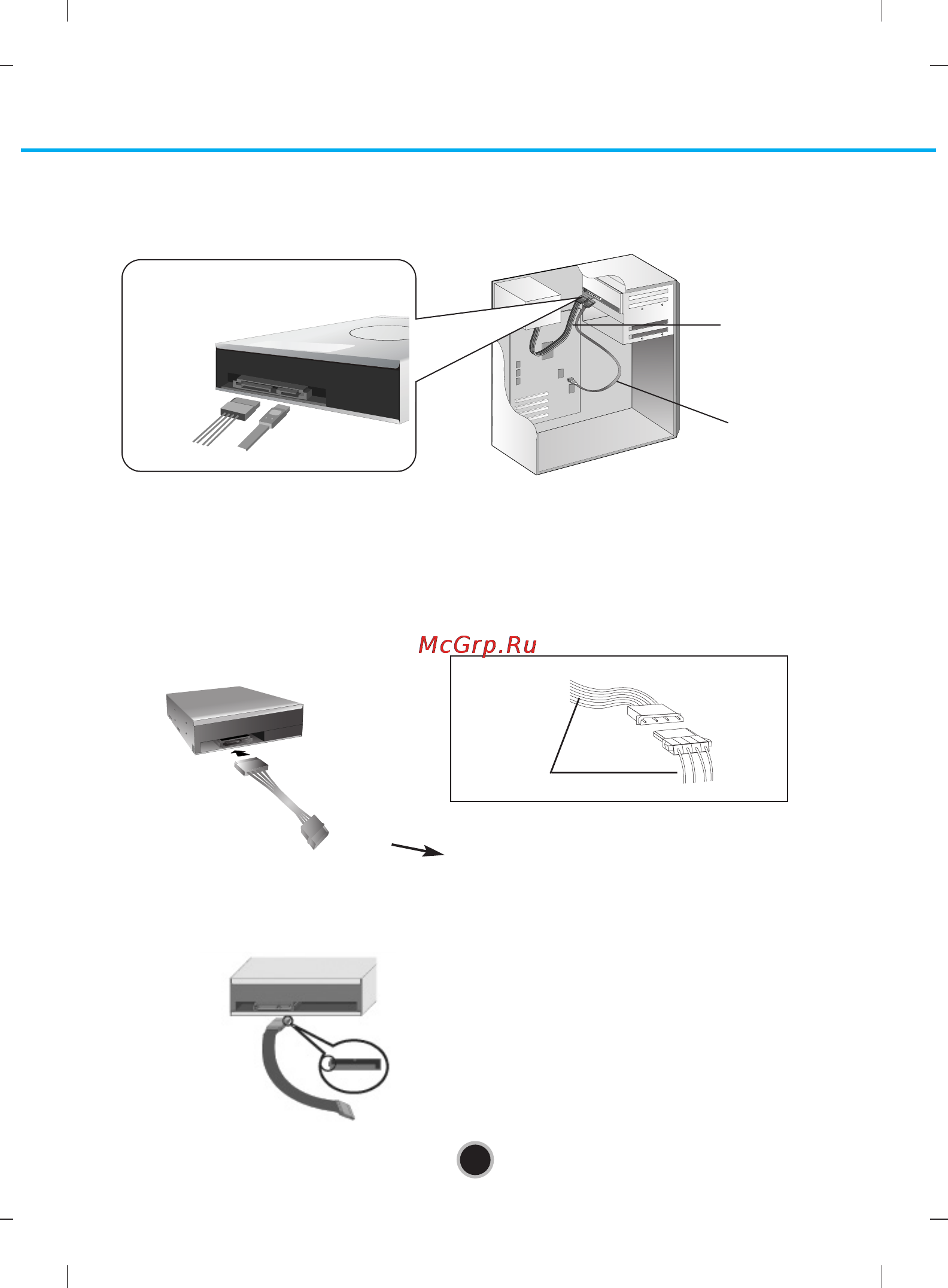

PC Connection
The BD-ROM/DVD Rewriter connects to the motherboard of the host computer using a
SATA interface cable.
Connecting the SATA Power Cable
Connect the power cable so the projection of the cable connector side to come to the left
side. Be careful not to connect upside down.
NOTE : Improper connection may damage the drive and void the warranty. Generally,
the power connector can only fit one way.
Connecting the SATA Data Cable
Connect the data cable. Be careful not to connect upside down.
6
Data cable
Power cable
Data cable
Power
cable
Connect to the SATA connector
on the PC's Motherboard.
Connect to the power
connector of the PC.
Red
