Full-integrated model

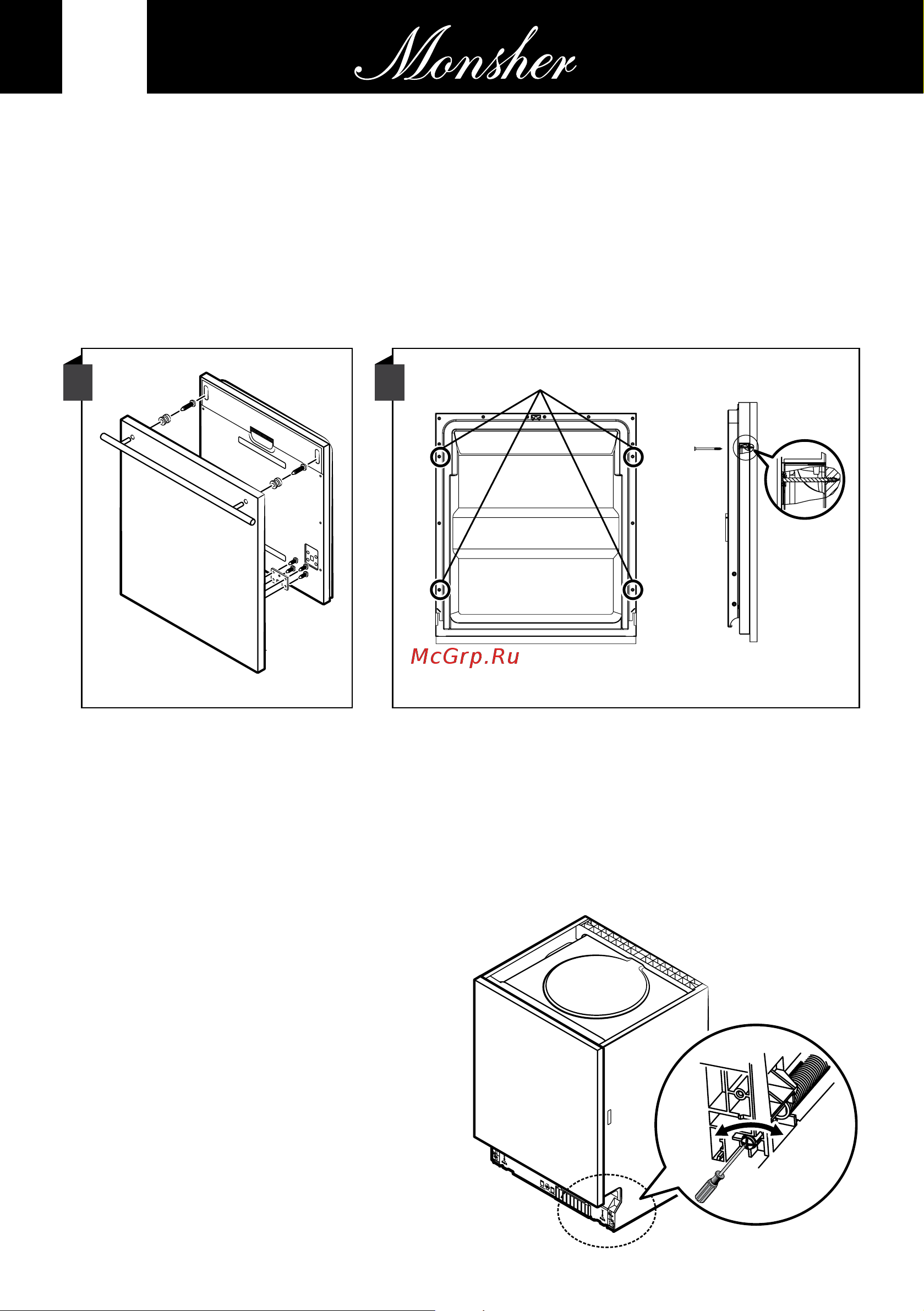

Install the hook on the aesthetic wooden panel and put the hook into the slot of

the outer door of dishwasher (see figure A). After positioning of the panel , fix the

panel onto the outer door by screws and bolts (See figure B).

STEP 3. Tension adjustment of the door spring

1. The door springs are set at the factory to the proper tension for the outer door.

If aesthetic wooden panel are installed,

you will have to adjust the door spring

tension. Rotate the adjusting screw to

drive the adjustor to strain or relax the

steel cable.

2. Door spring tension is correct

when the door remains horizontal in

the fully opened position, yet rises to a

close with the slight lift of a finger.

1. Take away the four short screws

2. Pin up the four long screws
