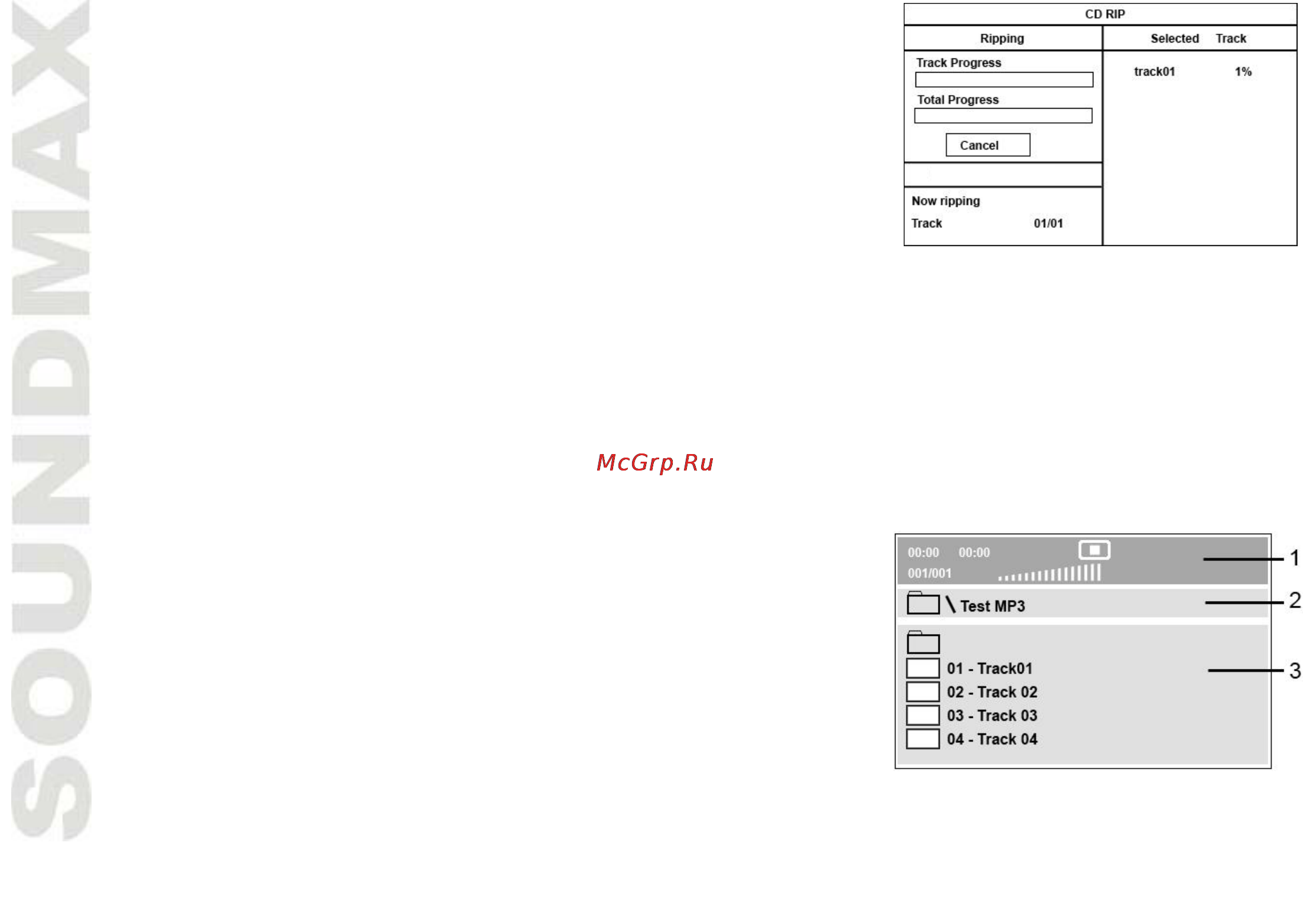

After ripping is started, a menu will appear showing the progress of the

procedure. File ripping is performed in real time, so you can listen to files

currently under ripping.

Notes:

 While converting the files no buttons are functional except OPEN/CLOSE

button and VOL+/VOL- buttons.

 A folder named RIPPING is created on the USB-drive or memory card for the

ripped files. If such a folder already exists on the storage, ripping operation is

unavailable.

 To avoid data loss, do not disconnect the USB-drive or memory card until

ripping is completed.

MP3/JPEG/compressed video playback

MP3 - generally adopted standard of audio compression, compressing audio data to 1/12 of their size. One CD disc may

store more than 600 minutes of music (170 songs). And the quality of MP3 disc approximates to an audio Dc disc quality.

JPEG (Joint Photographic Expert Group) - image compression algorithm, used all over the world and providing high level of

compression of the source data. Any graphics editor may edit images of this format and their size in 15-20 times less then

the original images.

Note: Some DivX discs cannot be played due to their parameters and recording conditions. Video files more than 2 Gb

having AVI extension can be played partially.

When a disc, a USB or a memory card containing files of these formats is inserted, following menu interface will be displayed:

1. Playback info window - shows current playback time, track number, volume

level, playback status (stop/play/pause) etc.

2. Address window - shows directory address at which the currently played file is

found.

3. Directory window - shows the currently selected directory.

Use cursor buttons to select the directory you want and press ENTER button to

enter it. Select a file and press ENTER button to start its playback.

Notes: While playing JPEG files press STOP button to go back to the menu.

Press cursor buttons to rotate the picture in different directions.

Regardless of the picture size and format, a picture may possibly not be shown

on the full screen area, leaving black stripes.
