Control elements

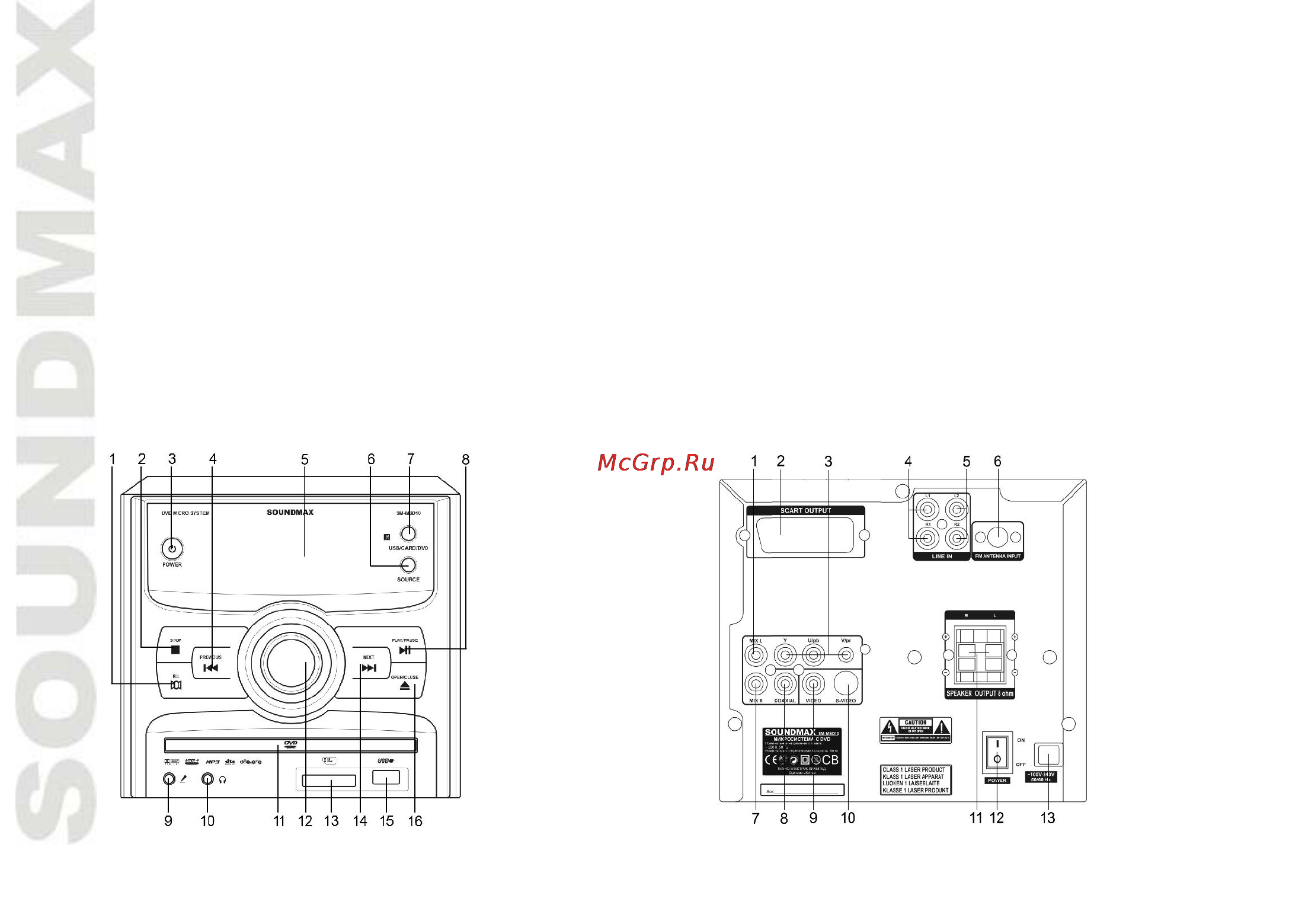

Front panel Rear panel

1. R/L button 1. Stereo audio out (Left)

2. STOP button 2. SCART connector

3. POWER button 3. Component video out

4. PREVIOUS button 4. Audio line in 1 (Left/Right)

5. Display 5. Audio line in 2 (Left/Right)

6. SOURCE button 6. FM antenna input

7. USB/CARD/DVD button 7. Stereo audio out (Right)

8. PLAY/PAUSE button 8. Coaxial digital audio out

9. Microphone jack 9. Composite video out

10. Headphone jack 10. S-video out

11. Disc tray 11. Speaker output

12. Volume knob 12. Power switch (On/Off)

13. SD/MMC card slot 13. Power cord

14. NEXT button

15. USB slot

16. OPEN/CLOSE button
