Pedrollo 6HR 54/11 - HYD [4/8] Characteristic curves and performance data 50 hz n 2900 min 1
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Pedrollo 6HR 54/11 - HYD [4/8] Characteristic curves and performance data 50 hz n 2900 min 1

Pedrollo 6HR 54/6 - HYD [4/8] Characteristic curves and performance data 50 hz n 2900 min 1
315
6HR54
0 100 200 300 400 500 600 700 800
900
1000 1100 1200
0
25
50
75
100
125
150
175
200
225
250
275
300
0
100
200
300
400
500
600
700
800
900
0 50 100 150 200 250 300
0 50 100 150 200 250
0 10 20 30 40 50 60 70
US g.p.m.
Imp g.p.m.
feet
l/min
m³/h
η = 74%
50
65
6HR 54/22
6HR 54/18
6HR 54/16
6HR 54/13
6HR 54/11
6HR 54/9
6HR 54/8
6HR 54/6
6HR 54/5
6HR 54/4
6HR 54/3

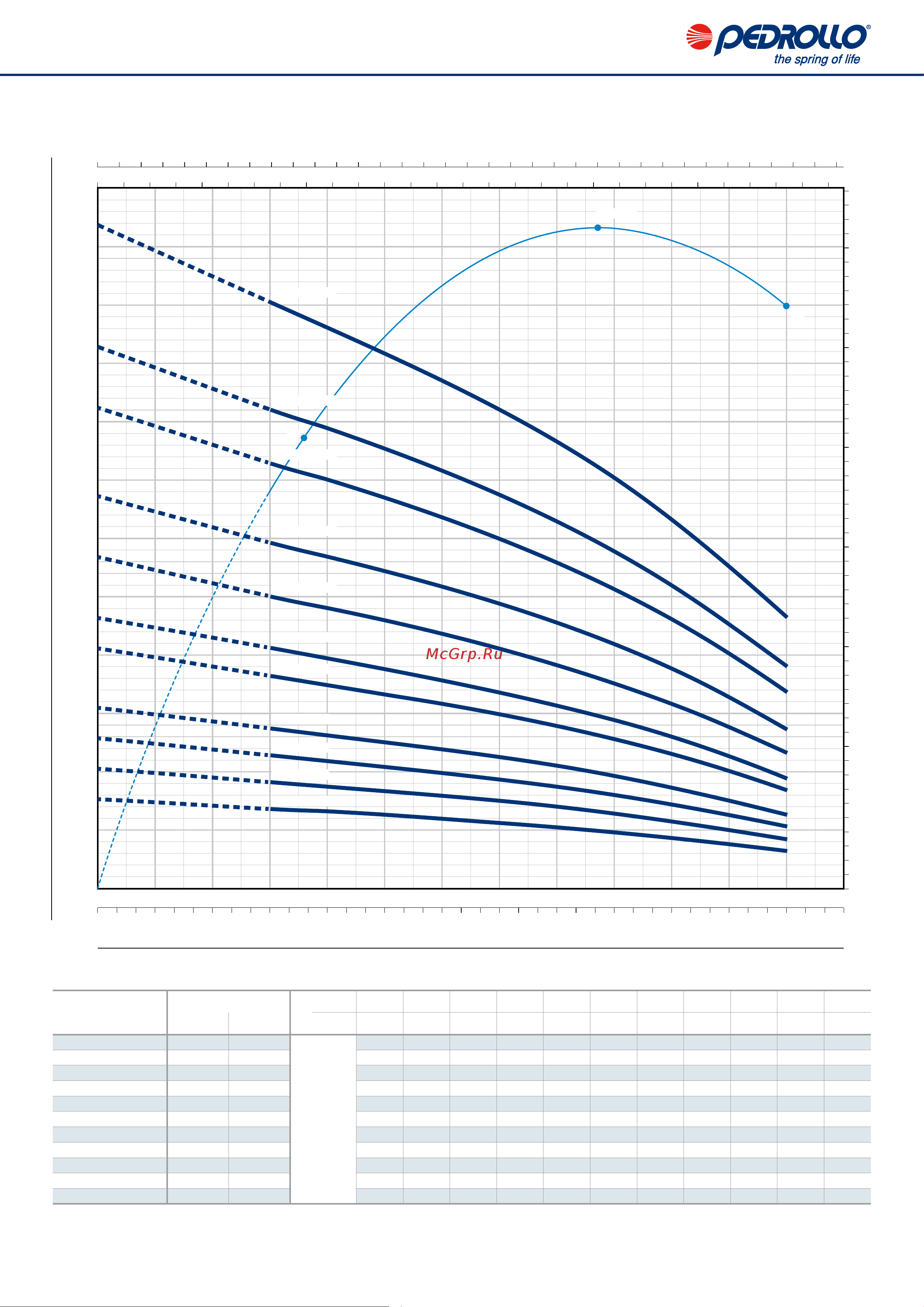

CHARACTERISTIC CURVES AND PERFORMANCE DATA 50 Hz n= 2900 min
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
(1) Pump tted with a 20 HP motor
(2) Pump tted with a 40 HP motor
MODEL POWER (P)
Q
m³/h 0 18 24 30 36 42 48 54 60 66 72
Three-phase kW HP
l/min 0 300 400 500 600 700 800 900 1000 1100 1200
6HR 54/3 5.5 7.5
H
metres
38.5 34 33 31.5 29.5 28 26 24 21.5 19 16
6HR 54/4 7.5 10
51.5 45.5 43.5 41.5 39.5 37.5 35 32 29 25 21
6HR 54/5 9.2 12.5
64.5 57 54.5 52 49.5 46.5 43.5 40 36 31.5 26.5
6HR 54/6 11 15
77. 5 68.5 65.5 62.5 59.5 56 52.5 48 43 37. 5 31.5
6HR 54/8 13 17. 5
(1)
103 91 87 83 79 74.5 69.5 64 57. 5 50.5 42
6HR 54/9 15 20
116 103 98 94 89 84 78 72 65 57 47
6HR 54/11 18.5 25
142 125 120 115 109 103 96 88 79 69 58
6HR 54/13 22 30
168 148 142 136 129 121 113 104 94 82 68
6HR 54/16 26 35
(2)
206 182 175 167 159 149 139 128 115 101 84
6HR 54/18 30 40
232 205 197 188 178 168 157 144 130 113 95
6HR 54/22 37 50
284 251 240 229 218 205 192 176 158 138 116
Flow rate Q
4
Head H (metres)
4
6HR54 | 50 Hz
