Acer V276HLbd [17/27] Lane3 n

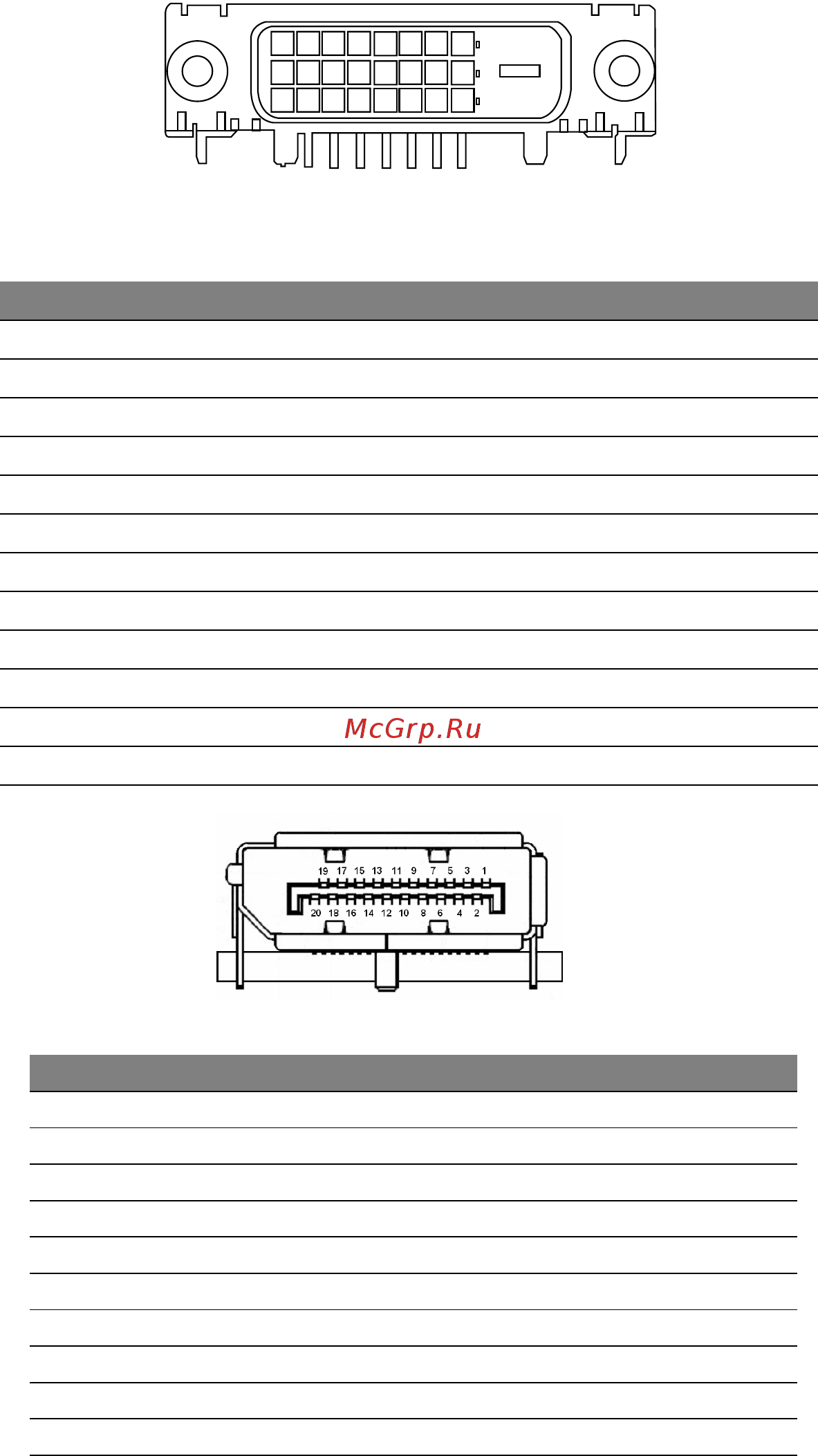

24-pin color display signal cable*

PIN No. Description PIN No. Description

1 TMDS data 2- 13 NC

2 TMDS data 2+ 14 +5 V power

3 TMDS data 2/4 shield 15 GND (return for +5 V hsync.vsync)

4 NC 16 Hot-plug detection

5NC 17TMDS data 0-

6DDC clock 18TMDS data 0+

7 DDC data 19 TMDS data 0/5 shield

8NC 20NC

9 TMDS data 1- 21 NC

10 TMDS data 1+ 22 TMDS clock shield

11 TMDS data 1/3 shield 23 TMDS clock+

12 NC 24 DDC TMDS clock-

PIN No. Description PIN No. Description

Lane0(p)

GND

Lane0(n)

Lane1(p)

GND

Lane1(n)

Lane2(p)

GND

Lane3(n)

Lane3(p)

GND

Lane3(n)

Config1

Config2

AUX_CH (n)

GND

AUX_CH (p)

Hot Plug Detect

DP Power_Return

DP Power

20-pin color display signal cable*

* only for certain models
