1. ON/OFF SWITCH WITH VARIABLE SPEED

CONTROL

Depress to start and release to stop your tool. This

tool has a variable speed switch (1) that delivers

higher speeds with increased trigger pressure - speed

is controlled by varying the pressure applied to the

switch. (See Fig. A)

2. SWITCH LOCK-ON BUTTON

Depress the on/off switch (1) then the lock on button

(2) (See Fig. A) release the on/off switch rst and the

lock-on button second. Your switch is now locked on

for continuous use. To switch off your tool just depress

and release the on/off switch.

3. AUXILIARY HANDLE

Slide the handle onto the drill and rotate to the desired

working position. To clamp the auxiliary handle rotates

the handle clockwise. To loosen the auxiliary handle,

rotate the handle anti-clockwise. (See Fig. B)

Warning: Always use the auxiliary handle.

4. FORWARD AND REVERSE ROTATION

CONTROL

With the drill pointing away from you, push the forward/

reverse-lever (3) to the left “

“ for forward rotation.

Push the forward/reverse-lever (3) to the right for

reverse rotation “

“.

WARNING: Never change the direction of

rotation while the tool is rotating, wait until it has

stopped.

5. ADJUSTABLE DEPTH GAUGE

Fit the drill bit into the chuck. Loosen the depth stop

by rotating the handle anti-clockwise. Slide the depth

gauge until the distance between the depth gauge end

and the drill bit end is equal to the depth of hole/screw

you wish to make. Then clamp the depth gauge by

rotating the handle clockwise.

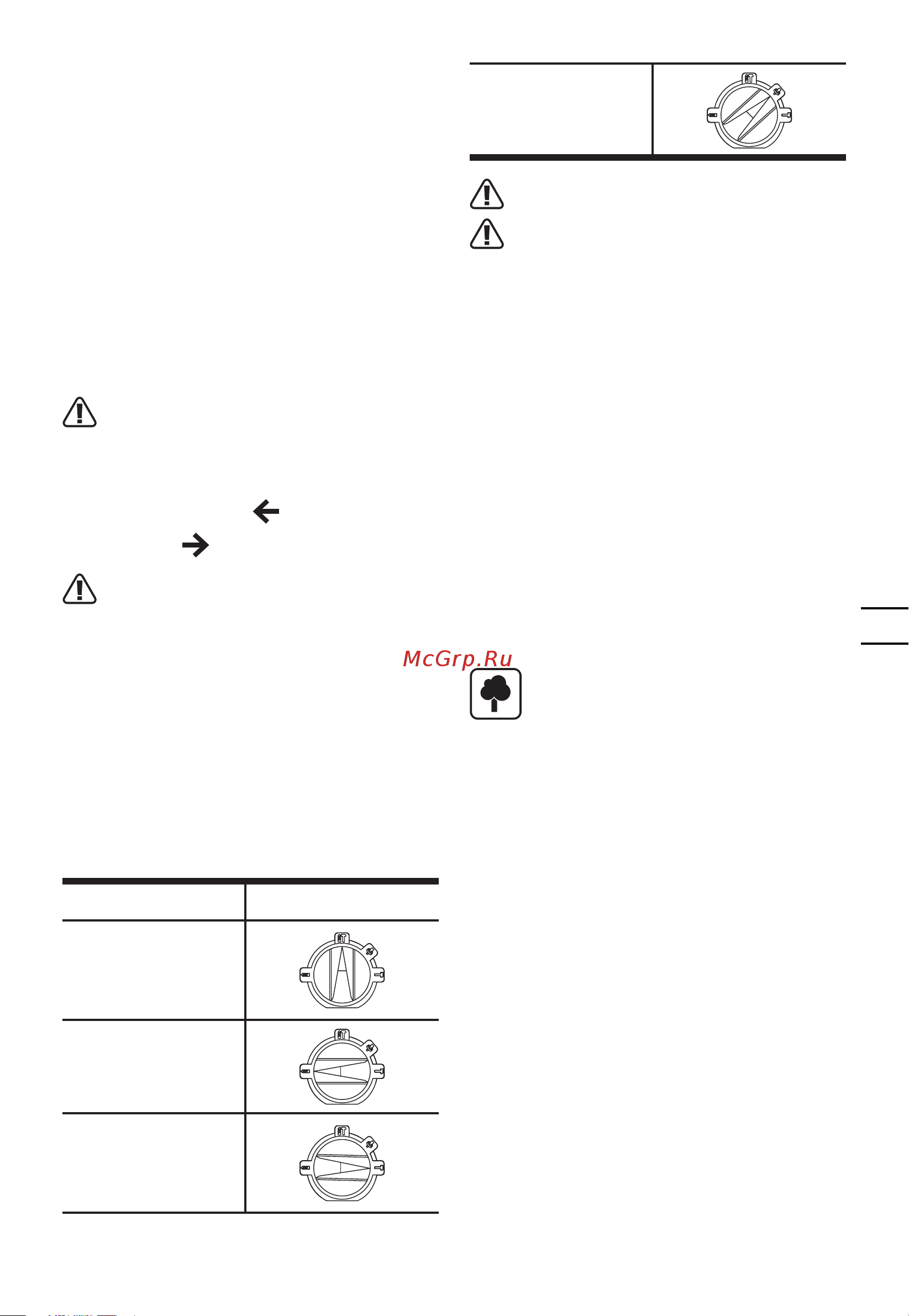

6. FUNCTION MODE SELECTION (See Fig. C)

The operation of the gearbox for each application is set

with the function mode selection switch (4), To change

between functions, depress the release button (9) and

rotate the selector to the desired operating mode.

Function

For simultaneous

drilling and impacting

of concrete or masonry,

choose the Hammer

drilling position.

For drilling into steel,

wood and plastics

choose the Rotary

drilling position.

For impacting only

- for light chipping,

chiseling and demolition

applications choose the

Hammer position.

For adjustment of

the chiseling position

choose the bit angle

position

WARNING: The operating mode selector switch

may be actuated only at a standstill.

WARNING: Prolonged use will cause the

aluminum housing to become hot, do not touch.

MAINTENANCE

Remove the plug from the socket before

carrying out any adjustment, servicing or

maintenance.

Your power tool requires no additional lubrication or

maintenance. There are no user serviceable parts in

your power tool. Never use water or chemical cleaners

to clean your power tool. Wipe clean with a dry cloth.

Always store your power tool in a dry place. Keep the

motor ventilation slots clean. Keep all working controls

free of dust.

If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

ENVIRONMENTAL

PROTECTION

Disposal

The machine, its accessories and packaging

materials should be sorted for environmentally

friendly recycling. The plastic components are labeled

for categorized recycling.
