APPLICATION LIMITS
• Manometric suction lift up to 7 m
• Liquid temperature between -10 °C and +40 °C
• Ambient temperature up to +40 °C
• Max. working pressure 10 bar
• Continuous service S1
Flow rate Q
4
Head H (metres)
4

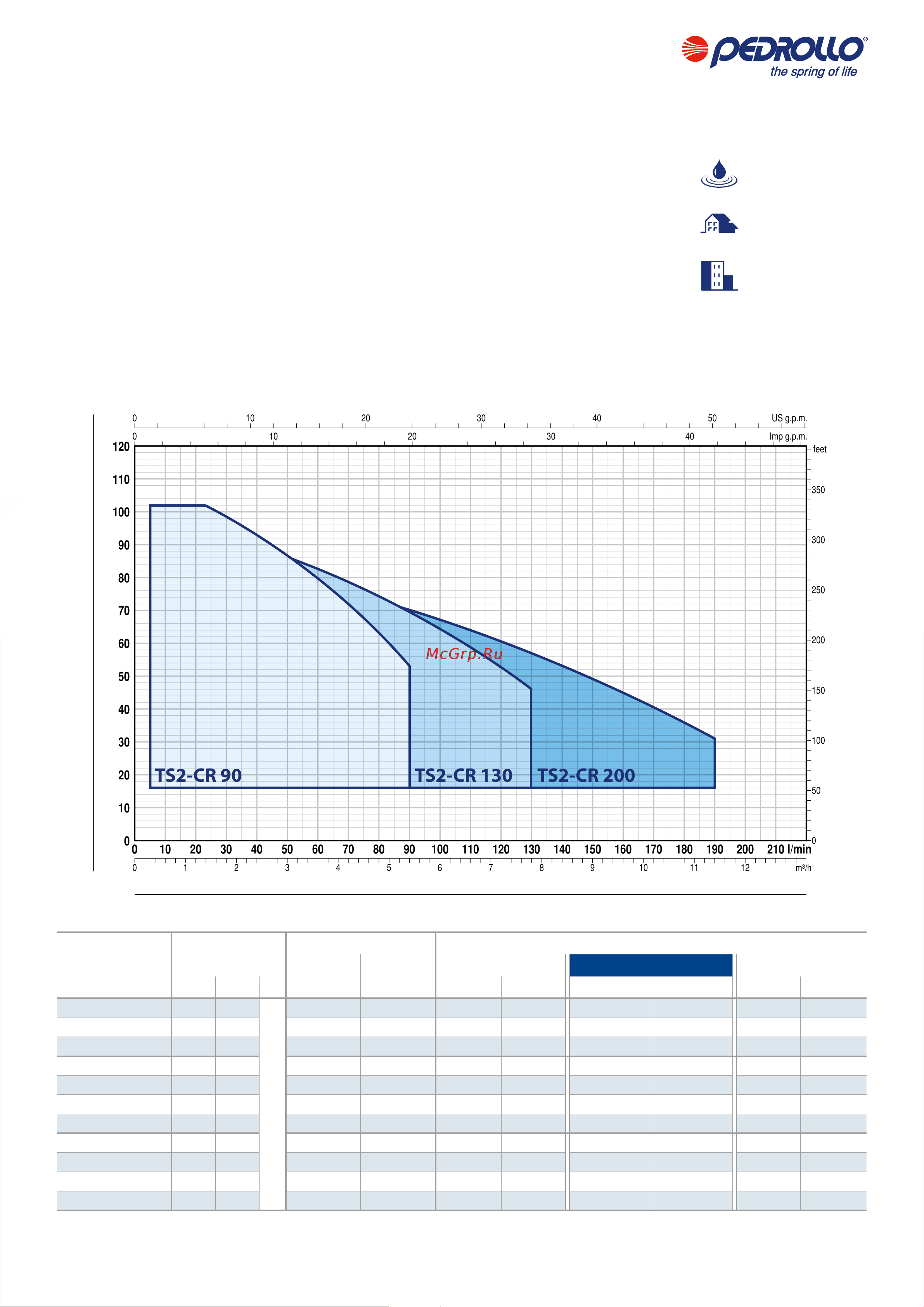

PERFORMANCE RANGE
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
 
Three phase motor eciency class (IEC 60034-30-1)
MODEL POWER MAX PERFORMANCES PERFORMANCES (ADJUSTABLE SET POINT)
P2 Q H Min. Set Point Set Point Stand. Setting Max. Set Point
Single-phase kW HP
l/min metres bar l/min bar l/min bar l/min
TS2-5CR 90 1.1 1.5
IE3
5 – 90 78 – 38 2.80 5 – 75 5.30 5 – 65 7.10 5 – 23
TS2-6CR 90 1.5 2 5 – 90 94 – 45 3.40 5 – 75 6.30 5 – 65 8.60 5 – 21
TS2-7CR 90 1.8 2.5 5 – 90 110 – 53 4.00 5 – 75 7. 50 5 – 65 10.00 5 – 21
TS2-3CR 130 1.1 1.5 5 – 130 49 – 24 1.80 5 – 110 3.40 5 – 92 4.30 5 – 48
TS2-4CR 130 1.5 2 5 – 130 65 – 31 2.30 5 – 110 4.40 5 – 92 5.80 5 – 45
TS2-5CR 130 1.8 2.5 5 – 130 81 – 39 2.90 5 – 110 5.50 5 – 92 7.4 0 5 – 38
TS2-6CR 130 2.2 3 5 – 130 97 – 45 3.50 5 – 110 6.50 5 – 92 9.00 5 – 33
TS2-3CR 200 1.1 1.5 5 – 200 43 – 13 1.60 5 – 185 2.80 5 – 133 3.80 5 – 72
TS2-4CR 200 1.5 2 5 – 200 57 – 17 2.10 5 – 185 3.60 5 – 133 5.10 5 – 65
TS2-5CR 200 1.8 2.5 5 – 200 72 – 22 2.60 5 – 185 4.60 5 – 133 6.50 5 – 56
TS2-6CR 200 2.2 3 5 – 200 86 – 26 3.10 5 – 185 5.50 5 – 133 7.90 5 – 45
CLEAN WATER
DOMESTIC USE
CIVIL USE
