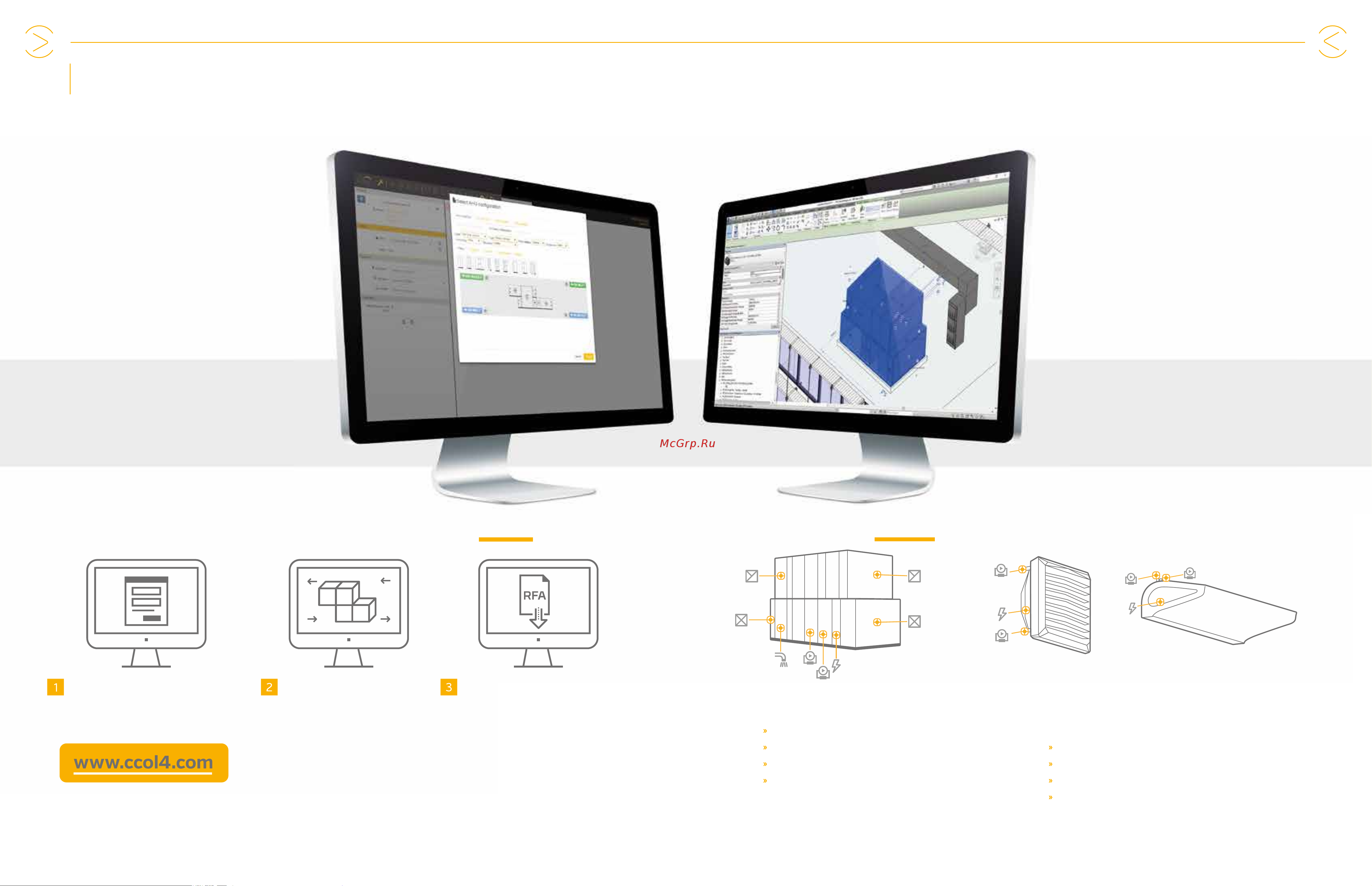

VTS has created the possibility of
generating digital models of VENTUS
VS and American VENTUS air-handling
models on-line. This is possible thanks to
the implementation of a new ClimaCAD
OnLine 4.0 selection tool, equipped with
.rfa (Revit®) les generator.
The release of families for the Autodesk Revit®
environment by VTS makes it easier to design
agencies for model the building installations
on the basis of using the same platform.
At present the on-line generator is a unique
solution in BIM environment. It enables
the generation of a VENTUS air-handling
unit model practically in no time in any
conguration and with any parameters.
The process of model generation comes down to the following 3 steps: As a result, the client receives:
Login to CCOL 4.0 website
Login to the CCOL 4.0 using the
following web address:
Unit conguration
Use the intuitive selection tool to
select your Air Handling Unit and
set its working parameters to t the
specied project demands.
Data export to .rfa le
In order to generate a model
in .rfa le, it is enough to enter
the name and surname plus the email
address of the person dedicated
to receive the le. The system will
automatically send a link to download
the model. The entire process lasts
approximately 15 minutes.
The generated objects contain detailed parameters
connectors:
air systems,
hydraulic systems,
sanitary systems,
electric systems,
as well as the complete dimensional data, the device
maintenance zone and the service (repair) zone.
VTS also provides digital models of WING air curtains
and VOLCANO air heaters.
The models contain:
parametrized electric and hydraulic connectors,
mount options vertically and horizontally,
presentation of the range of air stream,
parameter of any inclination angle of an air heater in relation
to the horizontal plane.
Models can be downloaded from:
https://vtsgroup.com/us/vts-bim
VTS BIM - a new approach
to digital models of air-handling units
