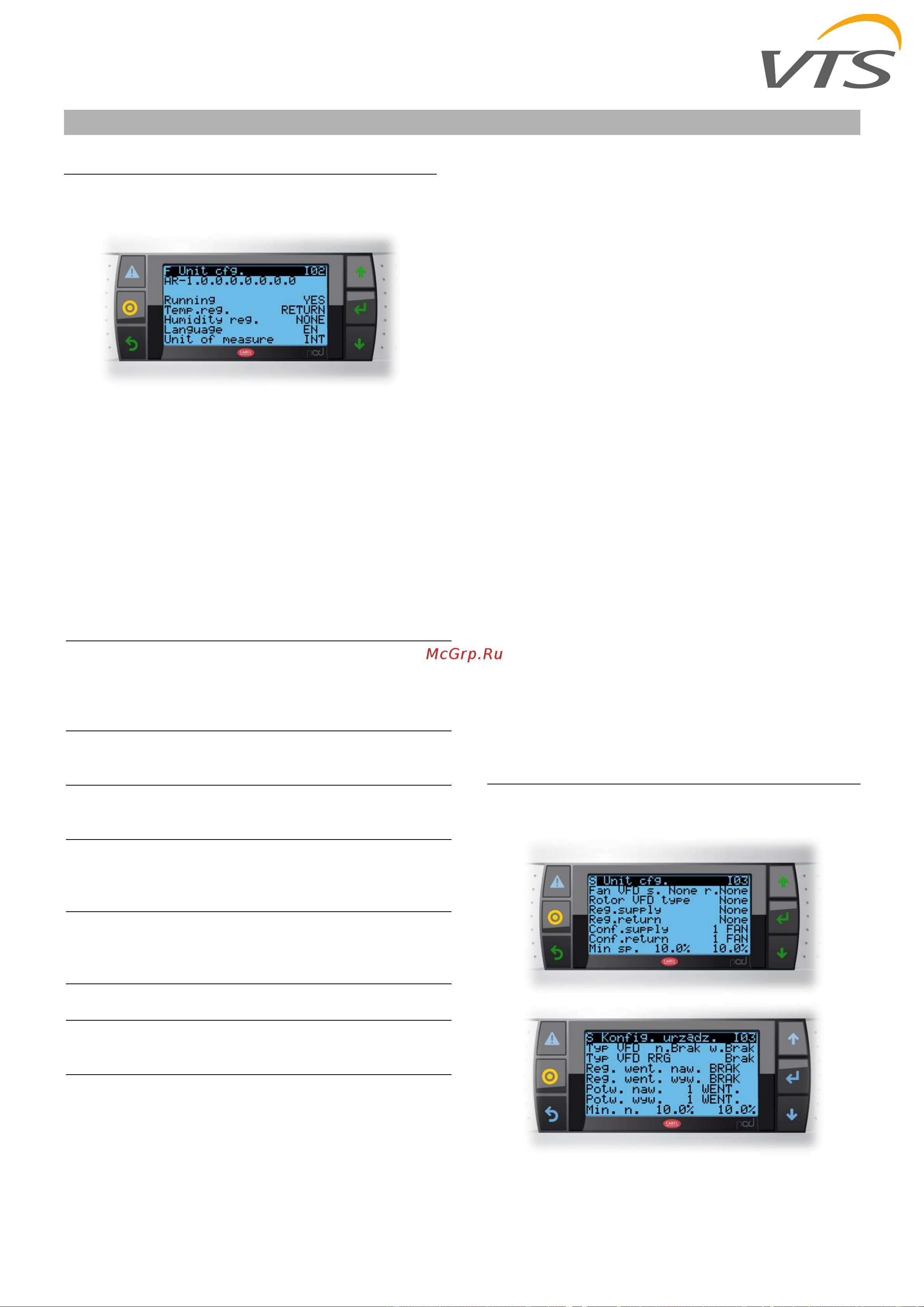

![VTS American VENTUS AVS 230 [14/47] Modbus devices](/views2/1894674/page14/bge.png)
uPC3 – rel 1.8 – 11/2021
14
4. UNIT CONFIGURATION
4.1 Application code
HMI Advanced ► Menu ► Unit cfg. ► I02
To change application codce Running change to NO
and go mask above I01.
Application code is a combination of elements,
functions and option sub-codes.
Code
Val
Options
Letter code
0
AS: supply application
1
AD: Supply&Exhaust (S/E)
2
AR: S/E & Rotary wheel
3
AG: S/E & Glycol
4
AP: S/E & Plate cross
1
Main-Heater
0
None
1
Hot water
2
Direct expansion
3
Electric heater
4
Steam
2
Main-Cooler
0
None
1
Chilled water
2
Direct expansion
3
Reverse
heat/cool
0
None
1
Hydronic
2
Direct expansion
4
Pre-Heater
0
None
1
Hot water
2
Direct expansion
3
Electric heater
5
Re-Heater
0
None
1
Hot water
2
Direct expansion
3
Electric heater
6
Economizer
0
None
1
Yes
7
Humidifer
0
None
1
Evaporative Humidifying
2
Steam
8
uPC3
configuration
6*
Standard
3
+ HMI Basic (th-Tune)
* For this value the controller has the correct behavior for the value
of 0,1,6 for uPC3 XS or 3 for unit with HMI Basic.
In unit configuration mask a parameter “running mode”
is provided. It will put the SW in running operation,
while in stop mode all the functions, inputs and outputs
are bypassed. Before to start the unit, the service must
check that everything is set in a correct way.
The application code can change only if the unit is in
configuration mode.
Description for other values in the automation code:
For example:
AR|0|2|0|0|1|1|0|6|3|0|0|0|0|0|1
Recovery mode:
0: None
1: Winter
2: Summer
3: Winter + Summmer
For active recovery, winter recovery is the standard.
Summer recovery should be activated on the
Menu ► Recovery ► D03 screen
AR|0|2|0|0|1|1|0|6|3|0|0|0|0|0|1
Redundant fan:
0: NO
1: YES
The number of fans is selected on the screen
Menu ► Unit cfg. ► I03
AR|0|2|0|0|1|1|0|6|3|0|0|0|0|0|1
The remaining values are system values.
4.2 Modbus devices
HMI Advanced ► Menu ► Unit cfg. ► I03
The inverter type can be selected separately for the
supply fan, exhaust fan and rotary exchanger.
Type VFD:
