VTS WING PRO C150 EC [4/5] Accessories

VTS WING PRO W150 R2 EC [4/5] Accessories
PARAMETERS
WING PRO DOUBLE
ROW COIL
WING PRO SINGLE
ROW COIL
WITHOUT HEATING
(AMBIENT)
W150 W200 W150 W200 C150 C200
AC EC AC EC AC EC AC EC AC EC AC EC
VTS article No.
1-4-2801-0346
1-4-2801-0349
1-4-2801-0352
1-4-2801-0355
1-4-2801-0345
1-4-2801-0348
1-4-2801-0351
1-4-2801-0354
1-4-2801-0344
1-4-2801-0347
1-4-2801-0350
1-4-2801-0353
Max. height of door
m 1,5 2 1,5 2 1,5 2
Max. air stream range
m 7 7,5 8
Max. flow rate
m³/h 7 300 10 700 7 900 11 900 8 500 12 800
Heating power range
kW 17-58 28-88 3-32 15-48 -
Max. temperature of heating medium
°C 130 -
Max. Working pressure
MPa 1,6 -
Diameter of stub pipe connectors
“ 3/4 -
Supply voltage
V/ph/Hz ~230/1/50
AC motor power
kW 2 x 0,28 3 x 0,28 2 x 0,28 3 x 0,28
2 x 0,28 3 x 0,28
Rated current (AC motor)
A 2 x 1,3 3 x 1,3 2 x 1,3 3 x 1,3 2 x 1,3 3 x 1,3
EC motor power
kW 2 x 0,25 3 x 0,25 2 x 0,25 3 x 0,25
2 x 0,25 3 x 0,25
Rated current (EC motor)
A 2 x 1,3 3 x 1,3 2 x 1,3 3 x 1,3 2 x 1,3 3 x 1,3
Weight AC/EC (without water)
kg
52,9 53,6 67,4 69,6 47,5 50,5 64 66,1 42,7 43,4 56,2 58,3
IP protection rating
IP 54

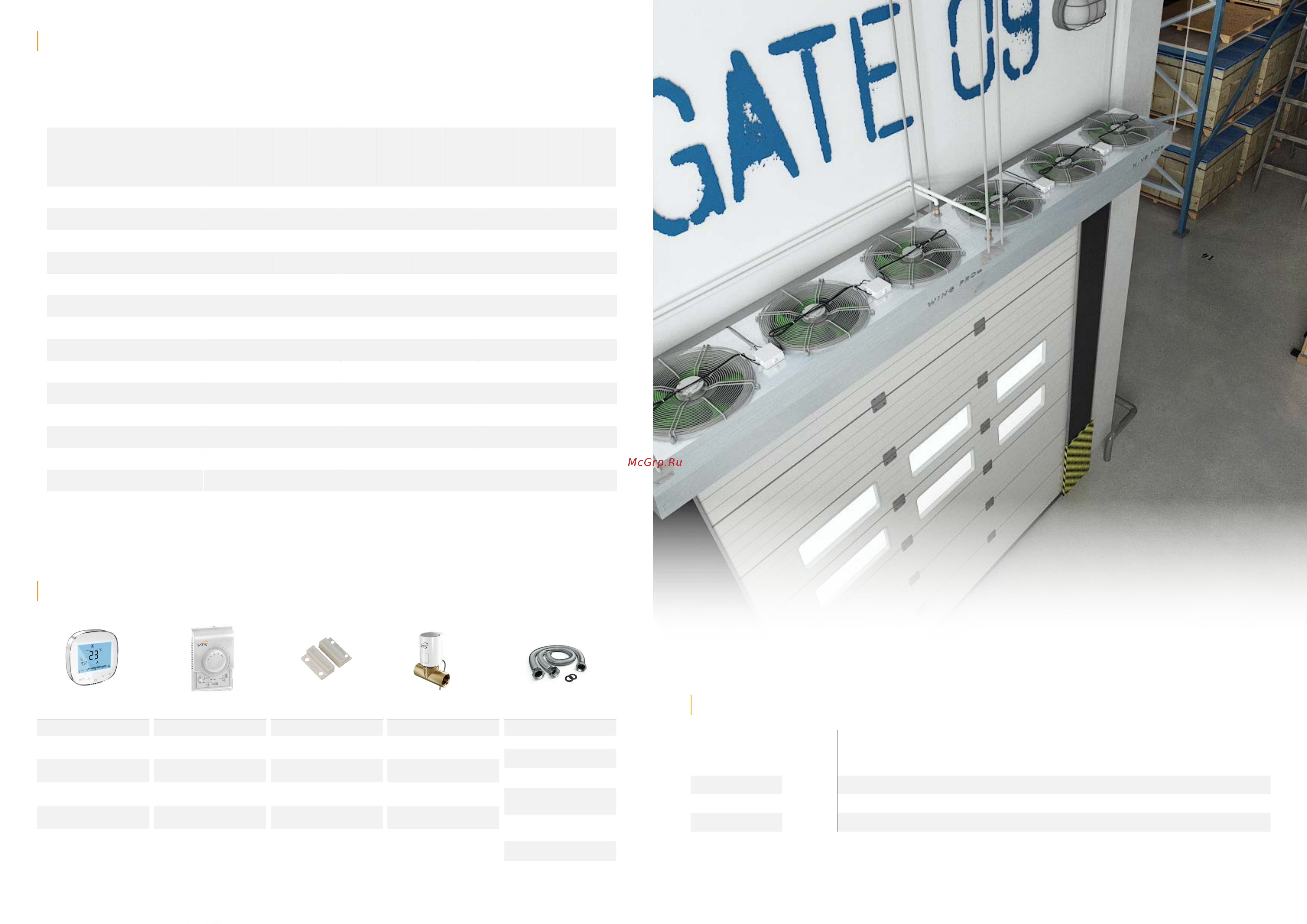

Technical parameters
Accessories
Noise level
* speed measurement conditions: semi-open space, horizontal installation on the wall, measurement performed 5 m away from the device
Fan speed
Noise level
WING PRO W R1 WING PRO W R2 WING PRO C
1,5m 2m 1,5m 2m 1,5m 2m
I
dB(A)*
45 46 45 45 47 48
II 55 57 54 55 57 58
III 64 65 62 63 65 66
HMI WING EC controller
VTS article No. 1-4-2801-0155
Motor
support
- EC
Power supply
voltage
V/ph/
Hz
~230/1/50
Permissible
load
A
1A for 230VAC
0,02A for 0-10V
Setting range °C 5…40
Protection
rating
IP 20
Wall controller
WING/VOLCANO
VTS article No. 1-4-0101-0438
Motor
support
- AC
Power supply
voltage
V/ph/
Hz
6(3)
Permissible
load
A
1A for 230VAC
0,02A for 0-10V
Setting range °C 10...30
Protection
rating
IP 30
Door sensor
(reed switch)
VTS article No. 1-4-0101-0454
Contact
conguration
- NO
Switching
current
mA 500
Switching
voltage
V max 200 V
Connection °C screw
Valve with actuator
VTS article No. 1-2-1204-2019
Power supply
voltage
V/ph/
Hz
~230/1/50
Opening min 3/3
Kvs - 4,5
Protection
rating
IP 54
Flex. connection hoses
(set)
VTS article No. 1-2-2702-0076
Lenght m 0,6-0,9
Connectrion
type
GW 3/4”
Max. fluid
pressure
MPa 1,6
Min. working
temperature
for water
°C 5
Min. working
temperature
for glycol
°C -20
Max. working
temperature
°C 130
Set includes -
hose (2 pcs)
gasket (4 pcs)
