Apach AP10T [4/6] Esploso corpo forno 10t 12t 10t 12t oven body exploded view lista ricambi spare parts list
![Apach AP10T [4/6] Esploso corpo forno 10t 12t 10t 12t oven body exploded view lista ricambi spare parts list](/views2/1896831/page4/bg4.png)
18 19
Parti di ricambio consigliate / Recommended spare parts

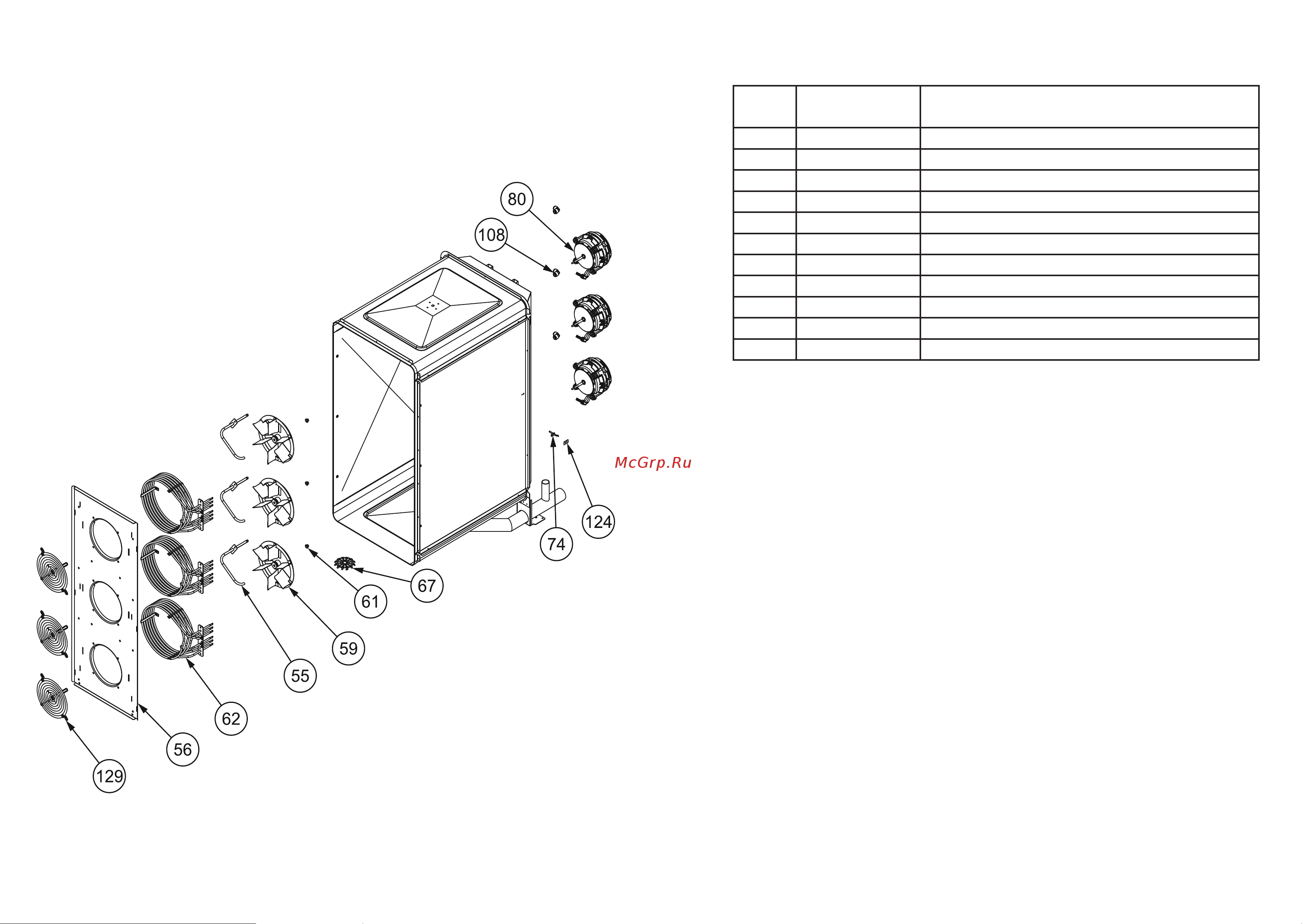

Esploso corpo forno 10T-12T / 10T-12T oven body exploded view Lista ricambi / Spare parts list
IL CODICE VARIA A SECONDA DELLA VERSIONE, COMUNICARE NUMERO DI SERIE
PART NUMBER ACCORDING TO UNIT VERSION, PLEASE COMMUNICATE THE SERIAL NUMBER
Parte n°
Part n°
Codice / Code Descrizione / Description
55 85TBA00017 TUBO UMIDIFICAZIONE / Humidication pipe
56 85DEF00024 DEFLETTORE / Deflector
59 60VENAI013 VENTOLA / Fan
61 040BOC00006 BOCCOLA / Bushing
62
RESISTENZA / Heater
67 85PIA00007 GRIGLIA SCARICO / Drain grid
74 020SON0001 SONDA TEMPERATURA / Temperature probe
80
MOTORE VENTILATORE / Fan motor
108 040RAC00001 RACCORDO A GOMITO / Elbow tting
124 040GUA00007 GUARNIZIONE SONDA TEMPERATURA / Temperature probe sealer
129 50GRIAI106 GRIGLIA VENTOLA / Fan grid
