Page 4
Rev . 2 - 1 2/ 03 / 201 9
SL 70 NEW - 2014

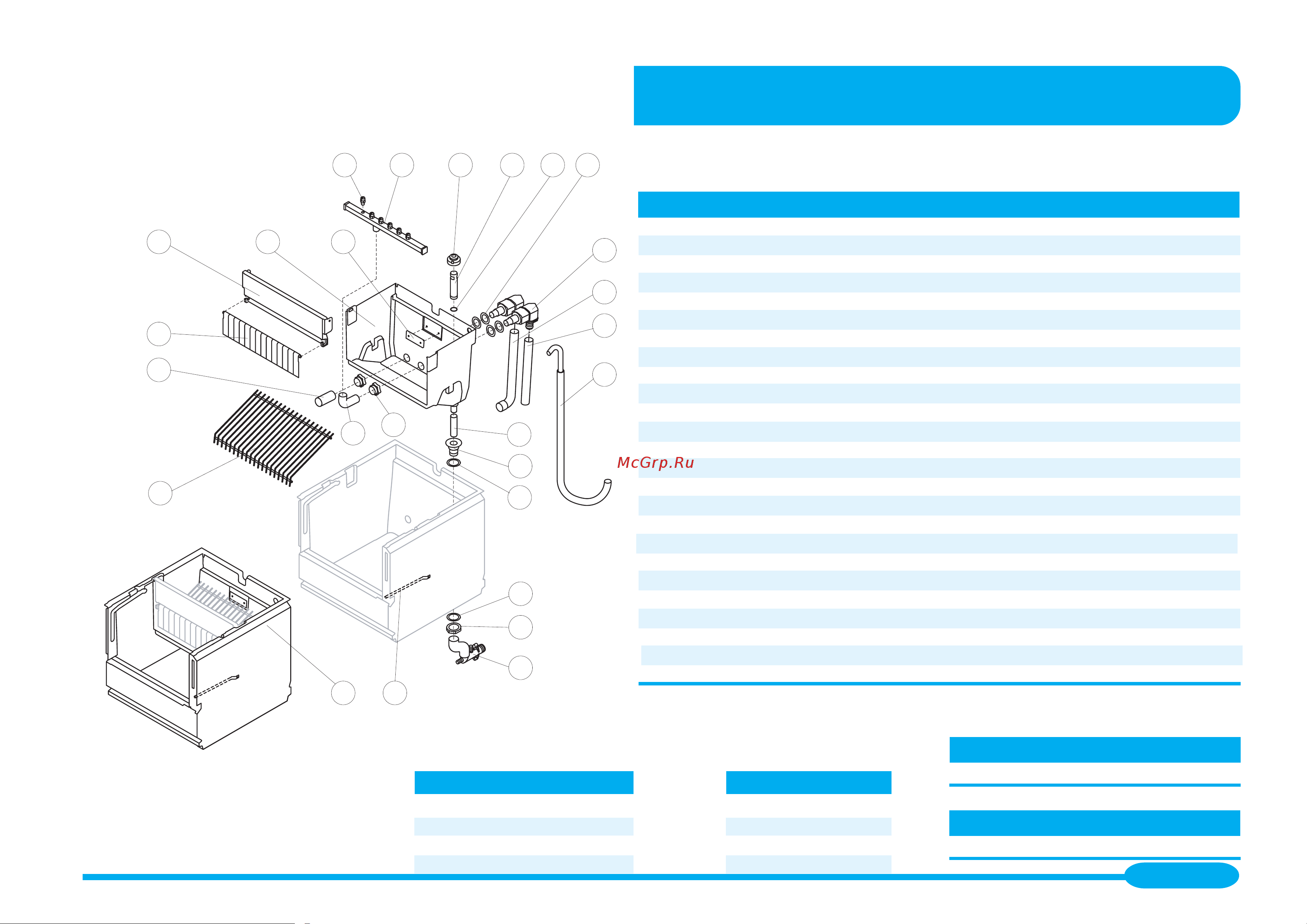

HYDRAULIC CIRCUIT
SL 70A / SL 70W
Ref. 20* - Ice Cubes Slide
17 g. (Standard) D12008
32 g. D12030
14 g. D12038
41 g. D12030
Kind of Cube Code
Ref. Spare Description Code
2 Sprayer D20002
3* Sprayers Bar Assembly See Table
4* Overflow Cap 10305
5* Overflow Pipe 10133
6* OR Gasket for Overflow Pipe 20233
7 Gasket for Pump Suction/Delivery Pipes 13220
8 Insulated Pump Suction/Delivery Fitting C10653
9 Insulated Pump Suction Pipe C13172
10 Insulated Pump Delivery Pipe C13175320
11* Water Supply Pipe to the Evaporator C13127
12* Overflow Pipe 13107
13 Water Outlet Nipple 10472
14 Silicone Gasket 13219
15 Semirigid Polyethylene Gasket 13007
16 Bin Discharge Nut 10096
18 Bulbe-holder Pipe 20522
19 Complete Basin Assembly C11186
20* Ice Cubes Slide See Table
21* Pump Suction Filter 20005
22 Rod with Flags 10534
23 Flags ABS Support 10526
24 Inner Basin 10253
25 Slide Keep Plate 10009
26 Sprayers Feeding Pipe 13005
27 Fittings Locking Ringa 10654
Common Parts
Ref. Spare Description Code
Parts for Air-Cooled Version Only
17 Discharges Manifold
C10006
Parts for Water-Cooled Version Only
17 Discharges Manifold
C26452
Ref. Spare Description Code
Ref. 3* - Sprayers Bar Assembly
17 g. (Standard) C201070
32 g. C201090
14 g. C201072
41 g. C201090
Kind of Cube Code
26
26
21
21
11
11
27
27
24
24
25
25
19
19
4 5 6
18
18
7
8
9
10
10
12
12
13
13
14
14
15
15
16
16
17
17
20
20
22
22
23
23
2 3
