SLF 190
Rev . 15 - 1 2/ 03 / 201 9
Page 5

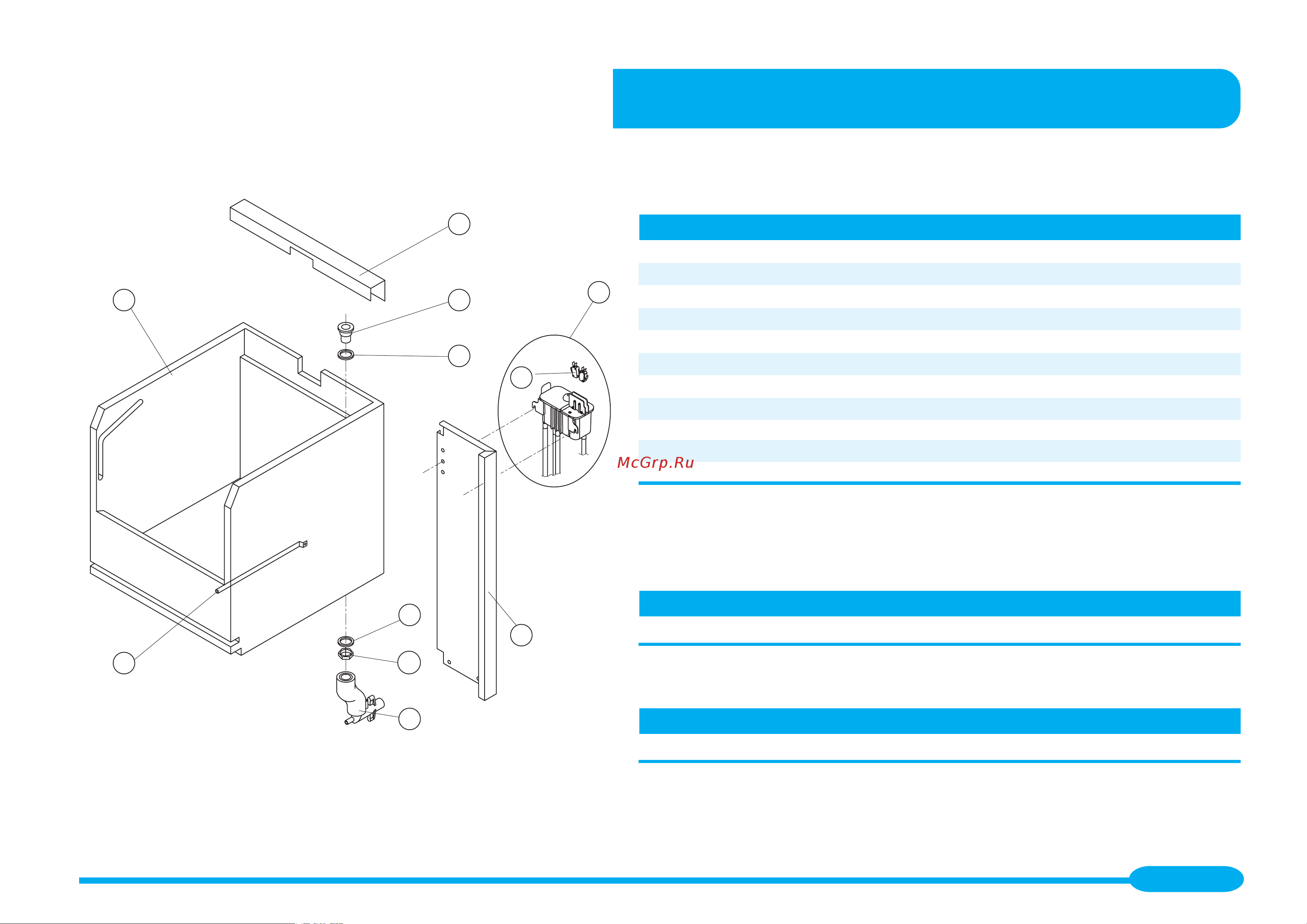

HYDRAULIC CIRCUIT
2
2
1
1
3
3
6
6
7
7
8
8
9
9
11
11
12
12
10
10
4
4
Parts for Air-Cooled Version Only
Ref. Spare Description Code
9 Discharges Manifold C10366
Parts for Water-Cooled Version Only
Ref. Spare Description Code
9 Discharges Manifold C10367
Common Parts
Ref. Spare Description Code
1 Cover for Ice Exhoust 22775
2 Water Outlet Nipple 10472
3 Silicone Gasket 13219
4* Double Switch Basin Assembly C10680
6 Basin Support 21246
7 Semirigid Polyethylene Gasket 13007
8 Bin Discharge Nut 10096
10 Bulb- holder Pipe Current Version 20522
10 Bulb- holder Pipe Till s/n. 445719 20522
11 Insulated Bin Assembly C11125
12 Microswitch 23055
