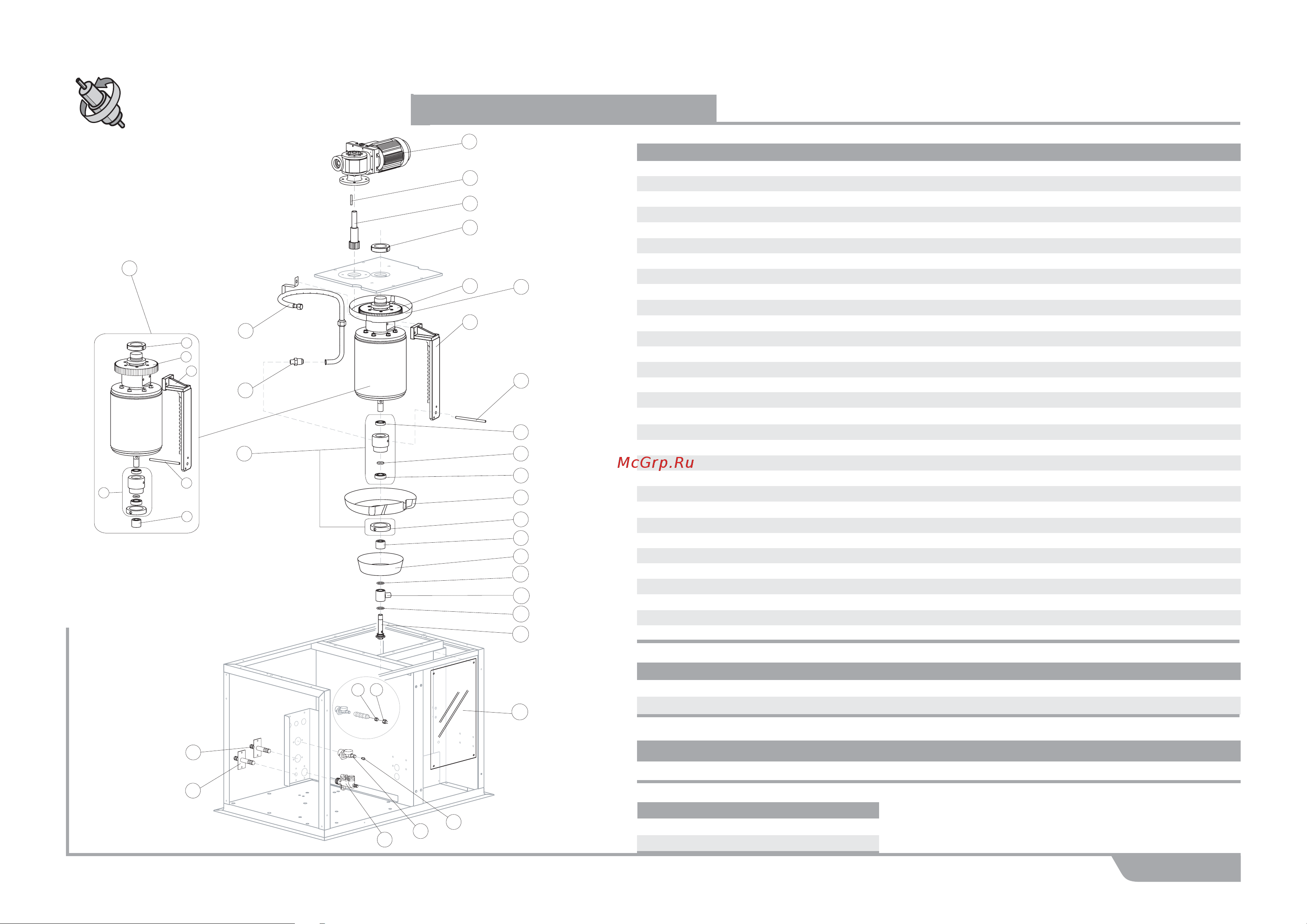

SM 750
EVAPORATOR
Ref. Spare Description Code
1 Gearmotor Assy See Table
2 Key 6x6x40 20350
3 Pinion with Shaft for Gearmotor C20344
4 Cylinder Locking Ring Nut 20324
5 Ring Gear 20354
6 Scraper Current Version 20846
6 Scraper Till s/n. 377385 20330
7 M8 Tie Rod (to Block Scraper) 20329
8 Stainless Steel Upper Bearing 20531
9 Silicone OR 4081 Ring 20338
10 Stainless Steel Bearing 20045
11 Rotating Basin 10184
12 Ring Nut for Rotating Ring 10182
13 Spacer Currente Version 10519
13 Spacer Till s/n. 377385 20321
14 Fixed Basin C10598
15 Water Inlet Ring 20851
16 Screw 20849
17 Evaporator Chamber Shield Current Version 10523
17 Evaporator Chamber Shield Till s/n. 377385 10187
19 1 Way- Water Inlet Nipple 10239
20 Discharges Manifold 10580
22 Complete Rotating Ring C10180
23 Joint 20335
24 Sprayer Ring C20858
24 Sprayer Ring Till s/n. 377385 C20319
25 Evaporator Current Version C11253
25 Evaporator Till s/n. 377385 NKITNEVM350
26 Bush Till s/n. 261851 20405
27 Nut Till s/n. 261851 20404
28 Ring Gear Cover From s/n. 551986 C10629
Parts for Water-Cooled Version Only
Ref. Spare Description Code
21 Connection with Plate C20462
2
3
4
5
6
7
8
9
10
11
12
13
14
18
19
22
23
1
25
24
9
15
16
9
17
21
21
20
27
26
4
5
6
7
22
13
28
2nd Version
SM750A - SM750W - SM750AW
Ref. 1- Gearmotor assy
Voltage Code
220/240V 50 Hz C23412
220/230V 60Hz C23389
Parts for Mixed Cooled Version Only
Ref. Spare Description Code
18 Lt. 1,2 Flow Control for Water Inlet Connector 10011
21 Connection with Plate C20462
Common Parts
