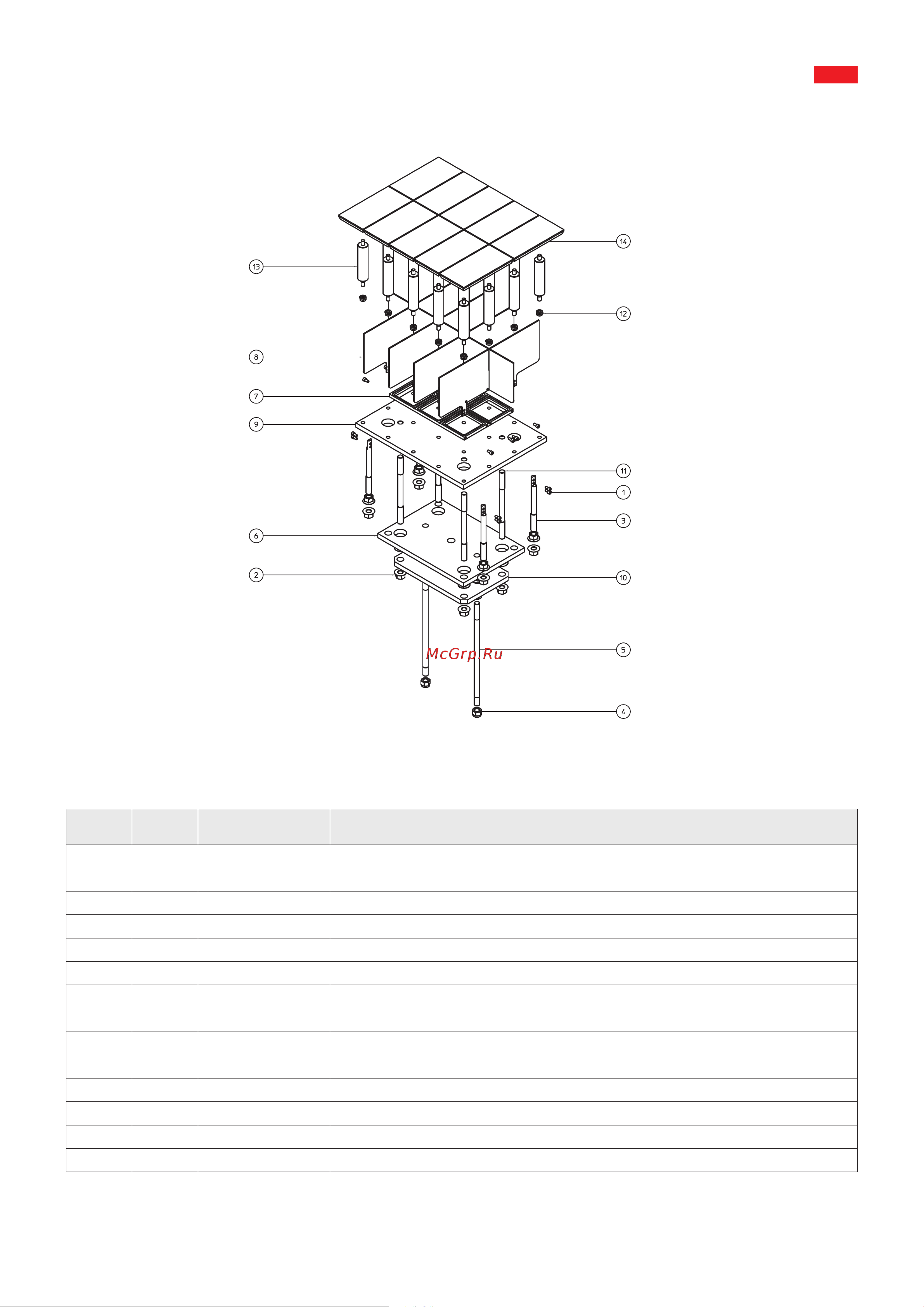

POSITION QUANTITY CODE DESCRIPTION
1 12 69280612 SCREW M6X12 INOX
2 24 30191601 NUT M16 ZINC.
3 4 65810010 CUTTING KNIFE SUPPORT SHAFTS
4 2 30081601 SELFLOCKING NUT M16 ZINC.
5 2 65810012 FIXED LIMIT ROD
6 1 49420111 KNIFE SUPPORT PLATE
7 1 49420130 KNIFE SUPPORT PLATE
8 1 60040148 KNIFE
9 1 49420110 PRESS SUPPORT PLATE
10 1 49420112 PRESS SUPPORT GUIDE ROD PLATE
11 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
12 20 30091001 NUT M10 ZINC.
13 20 62000005 PRESS PLATE SUPPORT
14 10 52600034 PRESS PLATES
10 DIVISIONS KNIFE GROUP COD. TG000023
