5
Submerge Suction
Tube into paint. Turn
Power Switch ON and
watch for paint to come
out of the Drain Tube. Turn
Power Switch OFF.
4
Allow fluid to flow up
the Suction Tube and
out of Drain Tube for 30-60
seconds. Turn Power
Switch OFF.
SET UP
START UP
SPRAYING

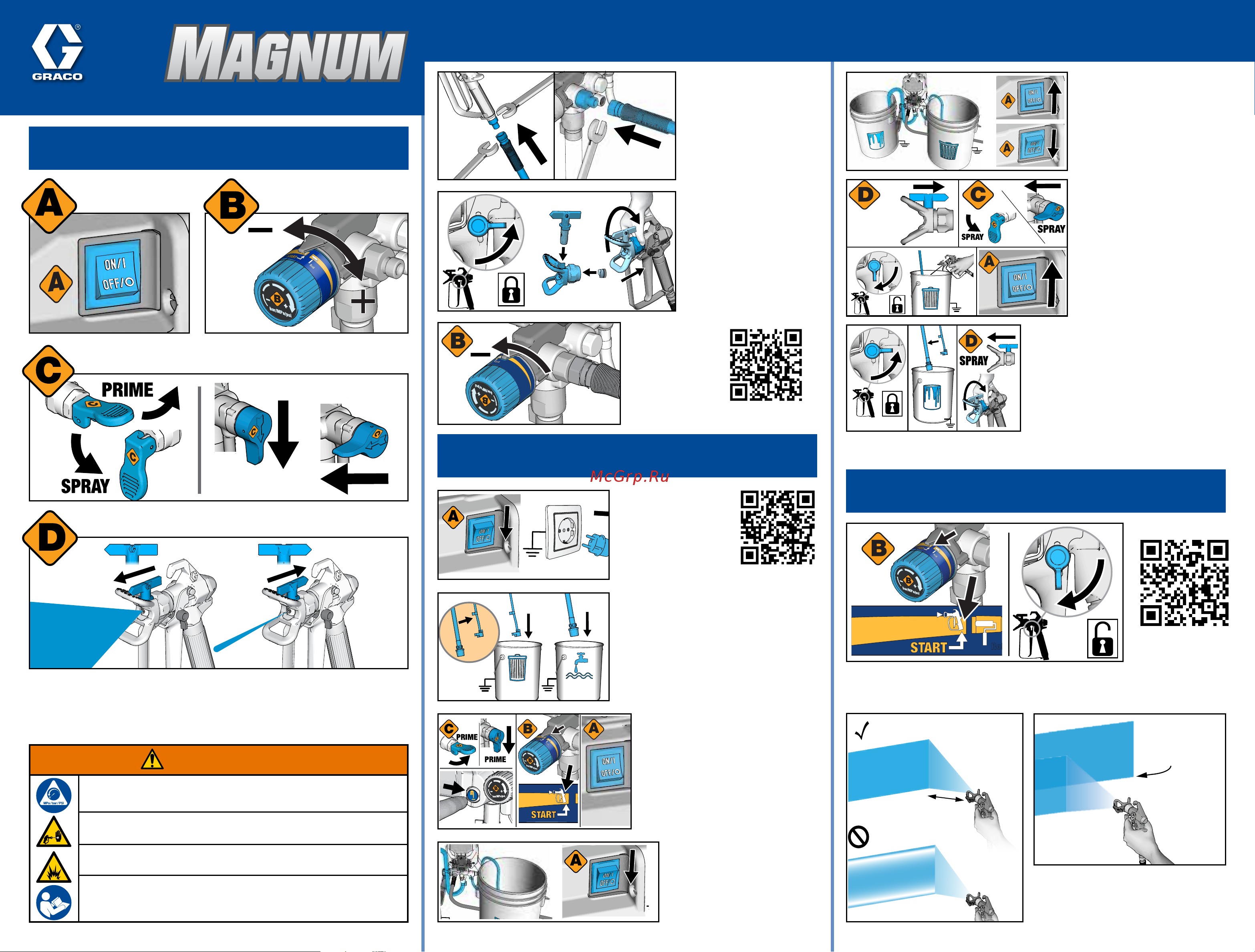

QUICK GUIDE
KNOW YOUR CONTROLS
Power
Pressure
PRIME
SPRAY
Prime/Spray
SPRAY
UNCLOG
Spray Tip
1
Turn Power
Switch OFF and
plug sprayer into a
grounded outlet.
2
Separate Drain Tube (smaller)
from Suction Tube (larger). Place
Drain Tube in a waste pail. Submerge
Suction Tube into pail filled with water
for water-based material, or mineral
spirits if spraying oil-based material.
3
Move the Prime/Spray Valve
to the PRIME position. Press
the PushPrime button* twice
to loosen inlet valve ball. Turn
Pressure Control Knob to START
position. Turn Power Switch ON.
7
When paint comes out of gun,
release trigger. Engage Trigger
Lock. Transfer Drain Tube to paint pail
and attach to Suction Tube. Rotate
Spray Tip back to SPRAY position
and ensure Spray Tip Guard is tight.
1
Turn Pressure Control Knob to the START
position. Disengage the Trigger Lock.
2
Increase Pressure Control Knob
if needed until spray is even and
without gaps at edges.
6
Rotate Spray Tip to
UNCLOG Position.
Disengage Trigger Lock.
Point gun into waste pail,
pull and hold trigger.
Move Prime/Spray Valve
to SPRAY position and
turn Power Switch ON.
Aim Gun here
to overlap
stroke by 50%
Release trigger
before end
of stroke.
Pull trigger
after
starting stroke.
Good Spray Pattern
Pressure
too low
Tip Wear
TAILS - Gaps at edges
12 in. (30 cm)
from surface
UNGLOG
Roll
Read Owner’s Manual for complete instructions and warnings. This
quick guide is not a substitute for reading and understanding all
instruction manuals and warning labels supplied with the equip-
ment. Manuals are available at magnumbygraco.eu
START UP
WARNING
READ AND UNDERSTAND ALL LABELS AND INSTRUCTION
MANUALS BEFORE USE.
FAILURE TO FOLLOW ALL WARNINGS
CAN RESULT
IN SERIOUS INJURY, AMPUTATION, OR DEATH.
Follow pressure relief procedure and wear protective
equipment including but not limited to protective eye wear.
SKIN INJECTION HAZARD: Keep clear of spray tip and leaks.
Engage trigger lock when not spraying.
FIRE AND EXPLOSION HAZARD:
Follow fire and explosion warnings as listed in your manual.
magnum.graco.com/quickstart
magnum.graco.com/
howtospray
3
Turn the
Pressure
Control Knob
to the lowest
setting.
2
Engage Trigger Lock.
Assure Spray Tip is
properly inserted into
the Spray Tip Guard,
and the Spray Tip Guard
assembly is tightened
securely to gun.
1
If needed, connect
hose to gun. Remove
red cap, then connect
hose to sprayer. Tighten
securely.
magnum.graco.com/quickassembly
YOU ARE NOW READY TO SPRAY!
* Not available on all models.
