Service
3A6583A 7
(216) (note orientation) and backup washer (229) on
piston valve, threads are good for four repackings.
Use thread sealant on piston valve threads after
four repackings.
B) For all QuikPak™ Piston Repair Kits (provided
pre-soaked in oil)
2. Install ball (206) in piston rod. If thread sealant is
applied to piston valve threads, make sure that none
gets on ball.

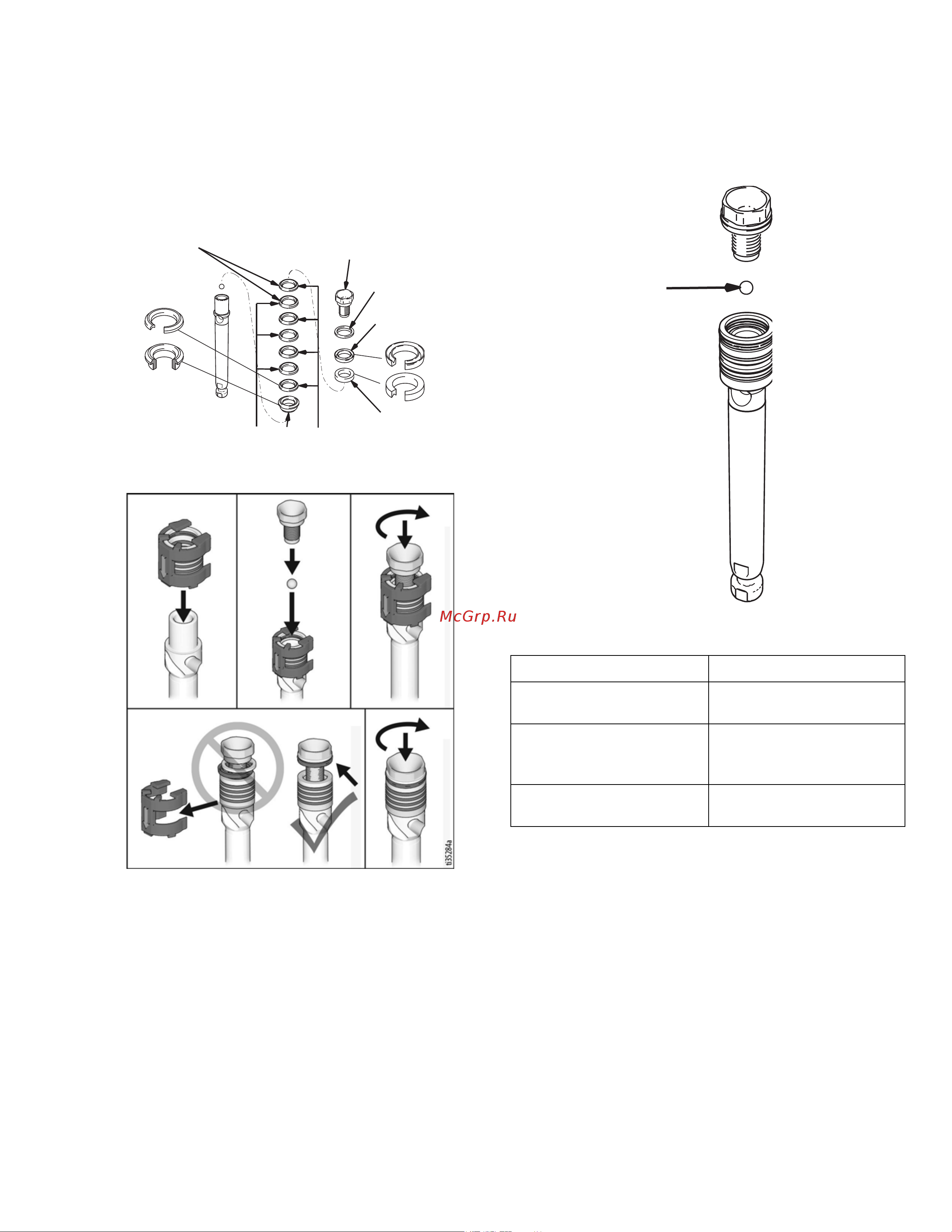

3. Tighten piston valve to piston rod as specified:
216
218 208
204
217
210
229
ti7574e
Not
used on
16X414,
17H823,
17H832
Models Torque
16X414, 17H832, 17H823 27 ± 3 ft-lb.
(36.1 ± 4.1 N•m)
16X419, 17H826, 17H824,
17H833, 17H892, 17H834,
17H836
55 ± 3 ft-lb.
(74.6 ± 4.1 N•m)
16X426, 17H827, 17H837,
17H825, 17H835
100 ± 5 ft-lb.
(136 ± 7 N•m)
206
ti7575c
