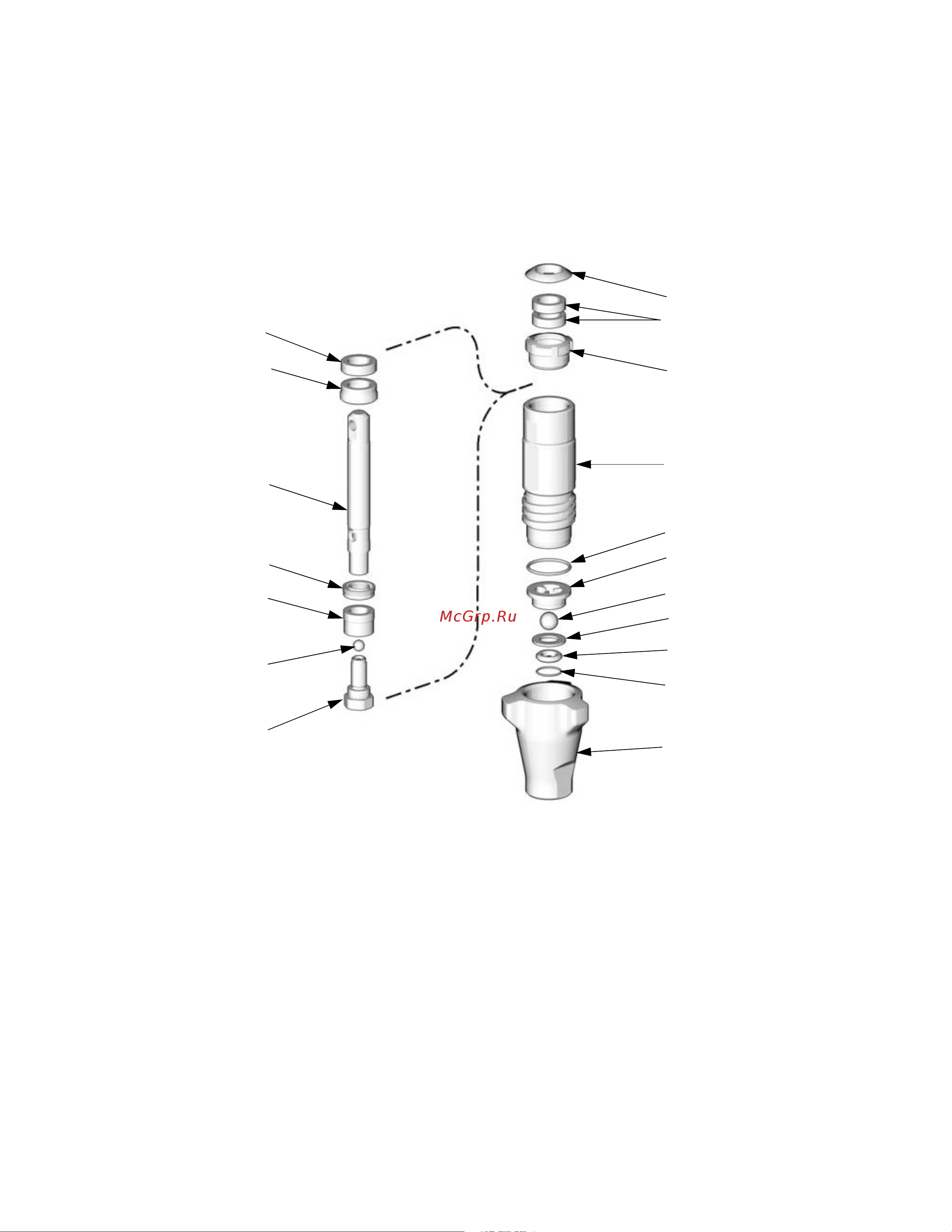

Part No. 24L006, Displacement Pump

* Parts included in Kit 249855 (purchase separately).

† Parts included in Kit 243190

20*

11*

13*†

14†

15*†

16*†

TI6994a

Ref.

No. Part No. Description Qty.

1 249125 ROD, piston (includes #10 piston) 1

2* 180656 PLUG, button 1

3 193047 NUT, packing 1

4* 15F745 BUSHING, rod 1

5* 15F747 SEAL, u-cup, rod 1

6 243176 CYLINDER, pump 1

7* 105444 BALL, piston 1

8* 15F748 SEAL, u-cup, piston 1

9* 15F746 BUSHING, piston 1

10 VALVE, piston (included in #1) 1

11* 108526 PACKING, o-ring 1

12 196896 GUIDE, ball 1

13*† 105445 BALL, intake 1

14† 195134 SPACER, ball, guide 1

15*† 195132 SEAT, intake valve, carbide 1

16*† 195136 O-RING, special 1

17 196755 HOUSING, valve, intake 1

20* 117603 WASHER, felt 2

Ref.

No. Part No. Description Qty.
